CM600HU-24F

Overview

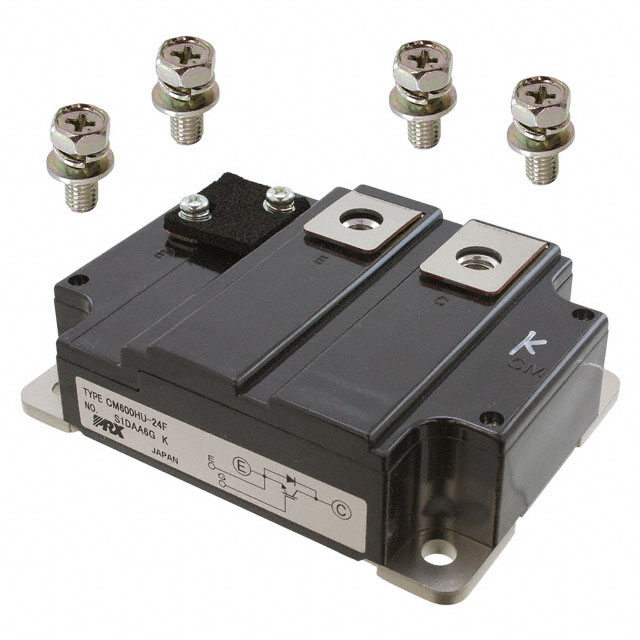

The CM600HU-24F is a single IGBT module manufactured by Powerex Inc. It features a maximum collector-emitter voltage of 1200V and a DC collector current rating of 600A. The device has a power dissipation capacity of 2400W and operates within a junction temperature range of -40°C to 150°C. It includes an integrated NTC thermistor for thermal monitoring. The component utilizes a chassis mount configuration with four terminals, designed for high-power switching applications.

Feature Summary

• Single IGBT transistor configuration optimized for switching applications
• Integrated NTC thermistor for precise thermal management
• Chassis mount design ensuring robust mechanical stability

Applications

• Industrial motor drives
• Power conversion systems
• High-frequency switching circuits

Procurement Notes

Verify the specific revision status and availability directly with authorized distributors or the manufacturer, as this component may be subject to discontinuation notices. Confirm that the chassis mounting interface matches the intended application requirements. Ensure compliance with RoHS standards if required by the end product specifications. Cross-reference terminal configurations to guarantee compatibility with existing PCB or busbar layouts before finalizing procurement orders.

Selection Notes

Select this module when high current handling and robust thermal performance are critical. The single IGBT structure suits applications requiring simple switching control without complex bridge configurations. Consider the chassis mount requirement for heat sink integration. Evaluate the 1200V rating against system voltage peaks to ensure adequate safety margins. The integrated thermistor simplifies temperature monitoring compared to external sensing solutions.

Part Context

This component belongs to the Powerex IGBTMOD series, which provides discrete power semiconductor solutions. The HU suffix typically indicates a specific package style within the lineup. As a single unit, it differs from half-bridge or full-bridge modules, offering flexibility in custom circuit designs where individual switch control is necessary. It serves as a fundamental building block for medium to high-power electronic converters.

Replacement Considerations

Public sources indicate this part number is discontinued by the manufacturer. Engineers must identify alternative components from the same family or compatible successors. Verify that any substitute maintains equivalent voltage, current, and thermal ratings. Check pinout compatibility to avoid redesigning the mechanical assembly. Consult official replacement guides for direct cross-references.
