CUHS20F60,H3F

Single Diodes Overview

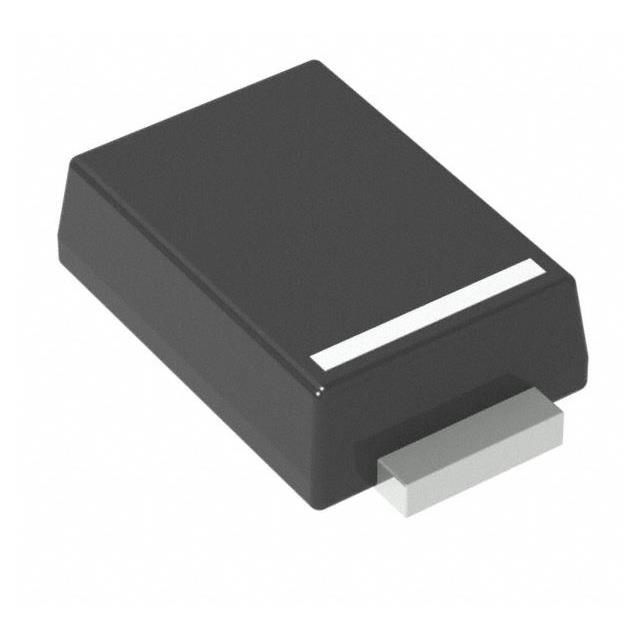

The CUHS20F60,H3F is a Schottky barrier diode manufactured by Toshiba Semiconductor and Storage. It features a maximum repetitive reverse voltage of 60 V and an average forward rectified current of 2 A. The component utilizes the US2H surface mount package, which corresponds to the SOD-323HE form factor. Key electrical specifications include a low forward voltage drop and fast switching characteristics typical of Schottky technology. The device is designed for high-efficiency power conversion applications requiring compact footprint and reliable performance under standard operating conditions.

Single Diodes Feature Summary

• Schottky barrier construction for low forward voltage and high efficiency
• Surface mount US2H (SOD-323HE) package for space-constrained designs
• High surge current capability for robust operation

Single Diodes Applications

• DC-DC converters
• Power supply rectification
• Free-wheeling diodes in inductive loads

Single Diodes Procurement Notes

Verify the complete part number including the H3F suffix to ensure compliance with specific environmental standards such as RoHS. Confirm the package type matches the design schematic, as US2H denotes a specific lead frame configuration distinct from standard SOD-323. Cross-reference the datasheet revision date to ensure alignment with current manufacturing specifications and reliability guidelines provided by Toshiba Semiconductor and Storage.

Single Diodes Selection Notes

Select this component when a 60 V rating and 2 A continuous current are required in a small surface-mount package. The US2H package offers improved thermal performance compared to standard SOD-323 variants. Ensure the application voltage does not exceed the repetitive reverse voltage limit. Consider the forward voltage characteristics for efficiency calculations in low-voltage output stages.

Single Diodes Part Context

This part belongs to Toshiba's CUHS series of Schottky barrier diodes. The series is characterized by low forward voltage and high reliability. The H3F suffix typically indicates halogen-free and RoHS-compliant packaging. The US2H package is a specialized variant designed for better solderability and thermal dissipation within the SOD-323 family dimensions.

Single Diodes Replacement Considerations

Direct replacements must match the 60 V reverse voltage, 2 A current rating, and US2H/SOD-323HE package. Verify that substitute components offer comparable forward voltage and reverse leakage current specifications to maintain circuit efficiency and thermal performance.
