DD450S45T3E4B5BPSA1

$1,101.60

Description：IGBT MODULE
Series：-

SKU:d8eb7356d423 Category: IGBT Modules Brand: Infineon Technologies

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：IGBT MODULE
Series：-
Mfr：Infineon Technologies
Package：Bulk
IGBT Type：-
Configuration：-
Vce(on) (Max) @ Vge, Ic：-
Input：-
NTC Thermistor：-
Operating Temperature：-
Mounting Type：-
Package / Case：-
Supplier Device Package：-
Voltage - Collector Emitter Breakdown (Max)：-
Current - Collector (Ic) (Max)：-
Power - Max：-
Current - Collector Cutoff (Max)：-
Input Capacitance (Cies) @ Vce：-

Download product information

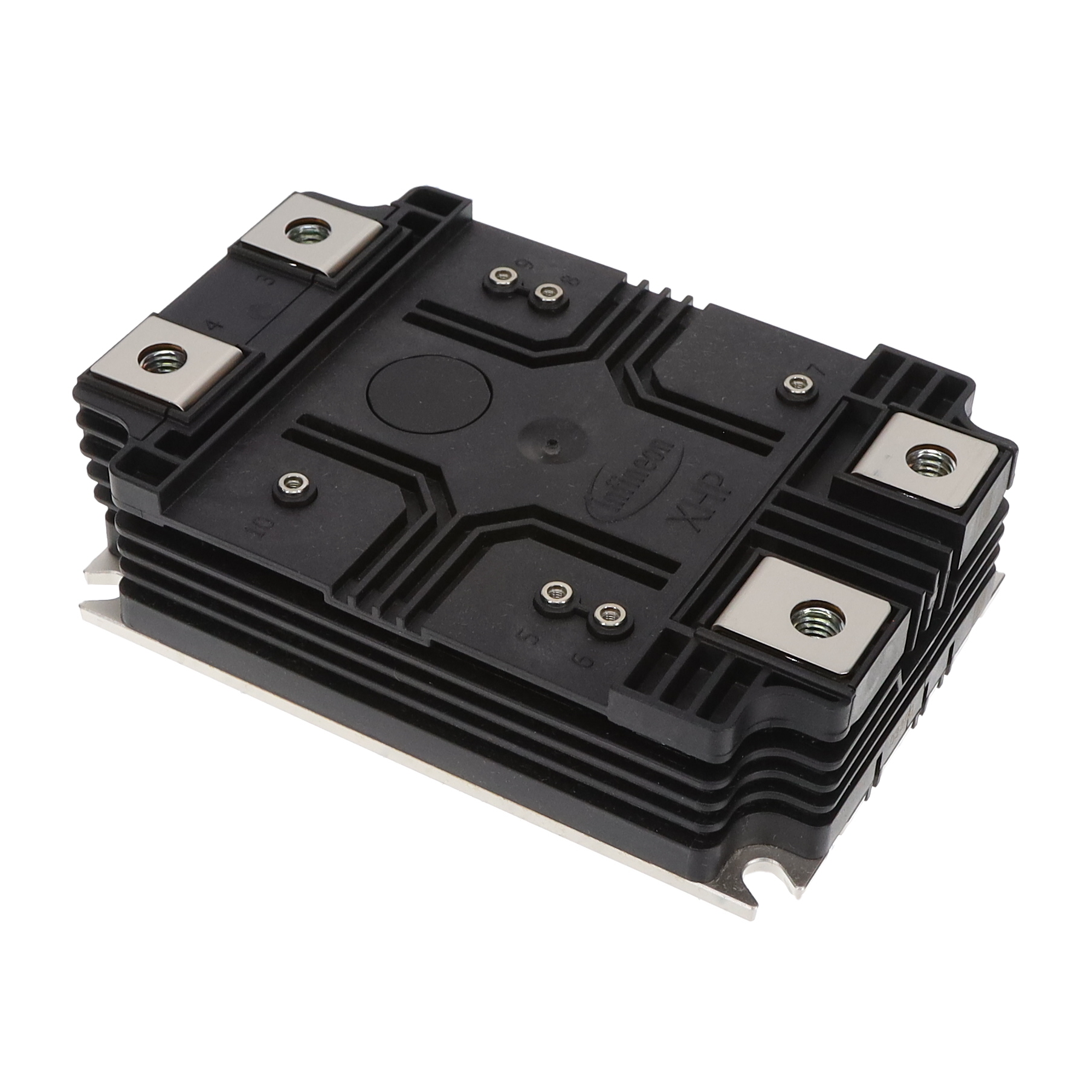

DD450S45T3E4B5BPSA1

Overview

The DD450S45T3E4B5BPSA1 is a high-power diode module from the XHP™3 series, rated for 4500 V repetitive peak reverse voltage and 450 A continuous DC forward current. It features an emitter-controlled diode with a maximum power dissipation of 1500 kW at 150 °C junction temperature. The module utilizes an AlSiC base plate to enhance thermal cycling capability and provides insulation isolation test voltages up to 10.4 kV RMS. Key electrical parameters include a forward voltage of 2.6 V typical at 25 °C and a peak reverse recovery current of 920 A.

Feature Summary

Emitter controlled diode technology providing high dynamic robustness
AlSiC base plate construction designed for increased thermal cycling capability
High creepage and clearance distances ensuring enhanced insulation performance
Housing material compliant with EN45545-2 HL3 fire protection classification

Applications

Traction drives
Medium-voltage converters

Procurement Notes

Verify component authenticity by cross-referencing the Data Matrix barcode on the module label against official Infineon records. Confirm that the specific ordering suffix matches the required technical specifications. Ensure compliance with industrial qualification standards such as IEC 60747 and IEC 60068 before integration into critical systems.

Selection Notes

Select this module for applications requiring high voltage blocking capabilities and significant current handling in medium-voltage environments. Consider the thermal resistance values and mounting torque requirements when designing the heatsink interface. Verify that the system operating temperature remains within the specified -40 °C to 150 °C range for optimal performance.

Part Context

This component belongs to the XHP™3 product family, which represents advanced high-power semiconductor modules. The series is engineered for demanding industrial applications where reliability under high stress conditions is paramount. It complements other devices in the lineup, such as the FF450R45T3E4_B5 IGBT module, for complete converter solutions.

Replacement Considerations

Consult official documentation for direct substitutes. Cross-compatibility depends on matching voltage ratings, current capacities, and mechanical dimensions. Verify pinout configurations and thermal characteristics before substituting.
