DDB6U100N16RRBPSA1

Overview

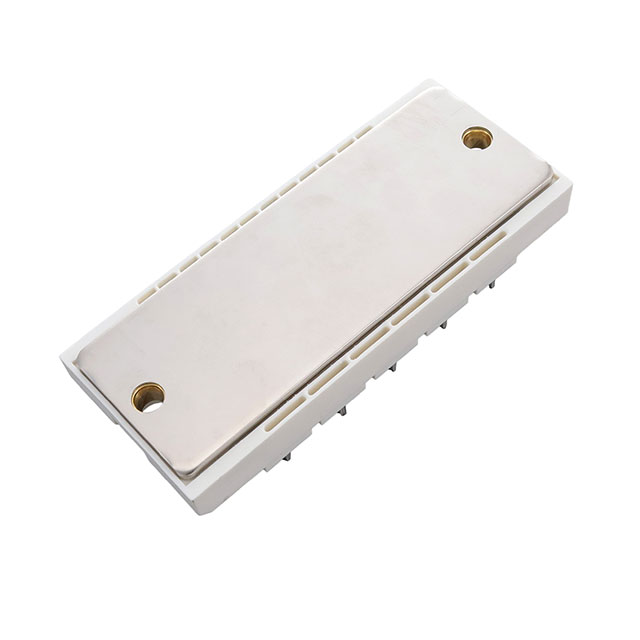

The DDB6U100N16RRBPSA1 is a three-phase diode bridge rectifier module manufactured by Infineon Technologies under the eupec EconoBRIDGE series. It utilizes silicon technology and features a 1600V repetitive peak reverse voltage rating with an RMS forward current capacity of 104A. The component integrates a brake chopper circuit to facilitate compact converter designs. It employs a screw-mount installation style within a module package, designed for high-power industrial applications requiring robust AC-DC conversion capabilities.

Feature Summary

• Integrates a brake chopper circuit for enhanced energy dissipation in DC link applications
• Utilizes the EconoBRIDE packaging architecture for optimized thermal management
• Provides a complete three-phase rectification topology in a single insulated module

Applications

• Industrial motor drive systems
• Medium voltage frequency converters
• High-power DC power supplies

Procurement Notes

Verify component authenticity through authorized Infineon distributors or certified partners. Confirm the specific suffix BPSA1 matches project requirements as it denotes tape-and-reel packaging variations compared to standard tray options. Check for end-of-life status or obsolescence notices prior to finalizing design-in decisions.

Selection Notes

Select this module when a combined rectifier and braking function is required to reduce system footprint. Ensure the cooling solution supports the thermal resistance characteristics of the EconoBRIDE housing. Verify that the gate drive interface for the integrated brake chopper aligns with the control board specifications.

Part Context

This part belongs to the DDB6U100 family of three-phase diode bridges with integrated brake choppers. It shares the same core electrical ratings and mechanical form factor as variants like DDB6U100N16RRBOSA1, differing primarily in packaging configuration and specific manufacturing lot codes defined by the manufacturer's internal coding standards.

Replacement Considerations

Direct substitutes include DDB6U100N16RRBOSA1 and DDB6U100N16R. Verify pin compatibility and thermal interface requirements before swapping between these variants.
