Product Detailed Parameters
- Description：LOW POWER ECONO AG-ECONO2B-411
- Series：EconoPACK™ 2
- Mfr：Infineon Technologies
- Package：Tray
- IGBT Type：Trench Field Stop
- Configuration：Single Chopper
- Vce(on) (Max) @ Vge, Ic：2.1V @ 15V, 100A
- Input：Standard
- NTC Thermistor：Yes
- Operating Temperature：-40°C ~ 150°C (TJ)
- Mounting Type：Chassis Mount
- Package / Case：Module
- Supplier Device Package：AG-ECONO2B
- Voltage - Collector Emitter Breakdown (Max)：1200 V
- Current - Collector (Ic) (Max)：100 A
- Power - Max：-
- Current - Collector Cutoff (Max)：1 mA
- Input Capacitance (Cies) @ Vce：6.2 nF @ 25 V
Download product information
Overview

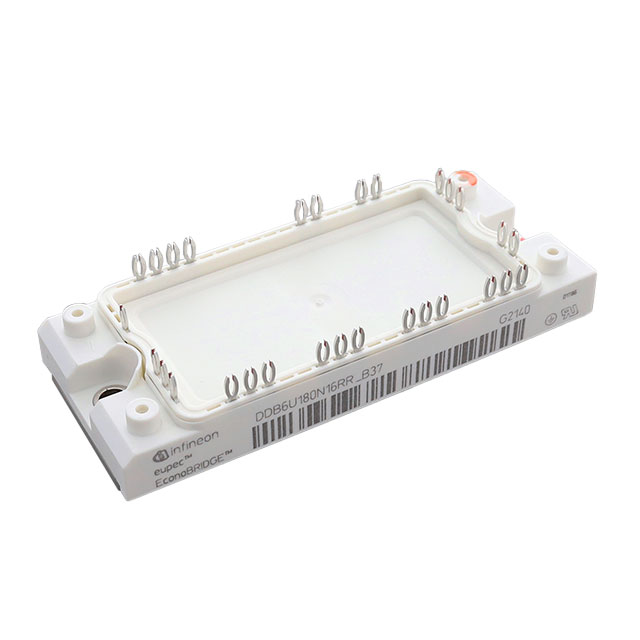

The DDB6U180N16RRB37BPSA1 is an EconoPACK™2 module integrating Trench/Fieldstop IGBT4 and emitter-controlled diodes. It features a collector-emitter voltage of 1200 V for the IGBT and a repetitive peak reverse voltage of 1600 V for the rectifier diode. The nominal continuous DC collector current is 100 A, while the maximum RMS forward current at the rectifier output reaches 180 A. The module utilizes PressFIT contact technology and includes an integrated NTC thermistor with a rated resistance of 5 kΩ at 25°C.
Feature Summary
- Integrates Trench/Fieldstop IGBT4 and emitter-controlled diodes within a compact design.
- Features an Al2O3 substrate providing low thermal resistance and high power density.
- Utilizes PressFIT contact technology for reliable connection without soldering.
- Includes an isolated base plate and an integrated NTC thermistor for temperature monitoring.
Applications
- Auxiliary inverters
- Air conditioning systems
- Motor drives
- Servo drives
Procurement Notes
Verify component authenticity by cross-referencing the unique serial number and material number found on the module label against official Infineon databases. Ensure that the ordering suffix BPSA1 corresponds to the specific packaging and variant requirements of your project. Confirm compliance with relevant industrial standards such as IEC 60747 and IEC 60749 during the sourcing process.
Selection Notes
Select this module for applications requiring robust switching performance and high current handling capabilities. The 1200 V rating suits medium-voltage inverter topologies. Consider the thermal resistance values when designing the heatsink interface. Verify that the gate drive circuitry aligns with the specified internal gate resistor and threshold voltages for optimal switching characteristics.
Part Context
This component belongs to the Infineon EconoPACK™2 series, designed for power electronics applications. It combines IGBT and diode technologies in a single housing to reduce parasitic inductance and improve system efficiency. The series is widely used in industrial motor control and renewable energy systems where reliability and compact form factors are critical.
Replacement Considerations
Public confirmed substitute part numbers: None identified in verified documentation.
FAQ
What is the maximum operating junction temperature for this module?
The maximum operating junction temperature (Tvj, op) is 150°C.
Does the module include an integrated temperature sensor?
Yes, it includes an NTC thermistor with a rated resistance of 5 kΩ at 25°C.
What type of contact technology does the module use?
The module uses PressFIT contact technology for mounting.
