Product Detailed Parameters
- Description：IGBT MOD 600V 26A 83.5W
- Series：-
- Mfr：Infineon Technologies
- Package：Bulk,Bulk
- IGBT Type：-
- Configuration：Three Phase Inverter with Brake
- Vce(on) (Max) @ Vge, Ic：2.55V @ 15V, 20A
- Input：Standard
- NTC Thermistor：Yes
- Operating Temperature：-40°C ~ 125°C
- Mounting Type：Chassis Mount
- Package / Case：Module
- Supplier Device Package：Module
- Voltage - Collector Emitter Breakdown (Max)：600 V
- Current - Collector (Ic) (Max)：26 A
- Power - Max：83.5 W
- Current - Collector Cutoff (Max)：1 mA
- Input Capacitance (Cies) @ Vce：880 pF @ 25 V
Download product information
Overview

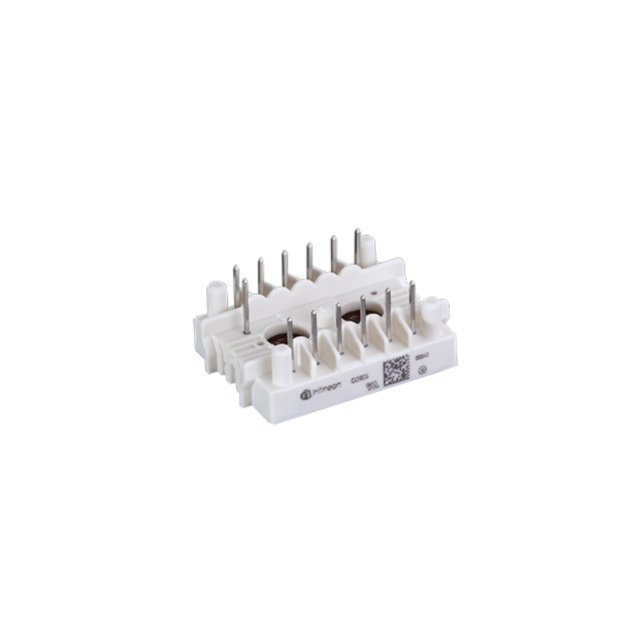

The DDB6U30N08VRBOMA1 is a three-phase inverter module with integrated braking capability, manufactured by Infineon Technologies. It utilizes IGBT technology to provide robust power switching for industrial applications. The device features a maximum collector-emitter voltage of 600 V and a continuous collector current rating of 26 A at 25°C. Key electrical parameters include a typical on-state voltage of 2.4 V and a maximum gate-emitter voltage of 20 V. The module is designed for chassis mounting and operates within a temperature range of -40°C to +125°C.
Feature Summary
- Integrated braking function for dynamic energy dissipation
- Three-phase inverter topology for AC motor control
- Chassis mount design for efficient thermal management
Applications
- Industrial motor drives
- Pump and fan systems
- Compressor units
Procurement Notes
Verify the specific suffix BOMA1 against official Infineon documentation to confirm the exact pinout and thermal interface specifications. Ensure compatibility with existing cooling solutions and gate driver circuits before integration. Cross-reference the datasheet for precise mechanical dimensions and mounting torque requirements to guarantee reliable assembly and long-term operational stability.
Selection Notes
Select this module for applications requiring high-efficiency three-phase inversion with regenerative braking capabilities. Consider the 600V rating and 26A current capacity relative to the load profile. Evaluate the thermal resistance characteristics against the system's heat sink design. Confirm that the operating temperature range meets the environmental constraints of the intended deployment scenario.
Part Context
This component belongs to Infineon's DDB series of discrete and power modules, specifically designed for medium-power industrial applications. The DDB6U30N08VRBOMA1 represents a specialized variant within the IGBT module family, offering integrated functionality to simplify inverter design. It complements other Infineon power devices by providing a compact solution for three-phase conversion tasks.
Replacement Considerations
Direct substitutes may include other Infineon DDB series modules with matching voltage and current ratings, such as the DDB6U30N08VR or variants with different suffixes indicating packaging or thermal properties. Verify pin-to-pin compatibility and electrical equivalence before substitution.
