DDB6U50N16W1RPBPSA1

Overview

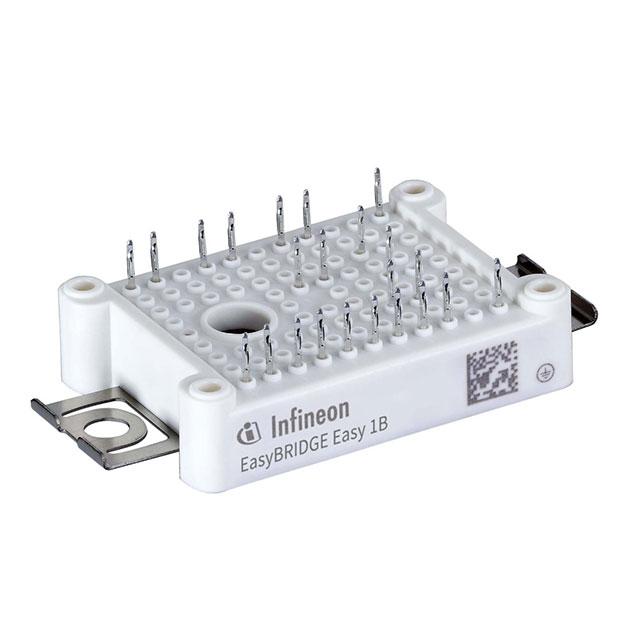

The DDB6U50N16W1RP is an EasyBRIDGE module featuring a chopper configuration and pre-applied Thermal Interface Material. It integrates TRENCHSTOP IGBT7 technology with a collector-emitter voltage (VCES) of 1200 V, nominal continuous DC collector current (ICDC) of 50 A at TH = 85 °C, and repetitive peak collector current (ICRM) of 100 A. The rectifier section supports a maximum RMS forward current per chip of 50 A and a surge forward current (IFSM) of 500 A at Tvj = 25 °C. The module utilizes an Al2O3 substrate for low thermal resistance and includes integrated mounting clamps.

Feature Summary

• Integrates TRENCHSTOP IGBT7 technology for efficient switching performance
• Includes pre-applied Thermal Interface Material to simplify assembly
• Features rugged mounting design with integrated mounting clamps
• Utilizes Al2O3 substrate for effective thermal management

Applications

• Auxiliary inverters
• Air conditioning systems
• Motor drives
• Servo drives

Procurement Notes

Verify the specific ordering suffix against official documentation to confirm mechanical variations or material composition changes. Confirm that the component meets industrial qualification standards as defined in relevant IEC tests. Ensure compatibility with pre-applied TIM handling procedures during storage and shipment to maintain thermal interface integrity.

Selection Notes

Select this module for applications requiring high power density and simplified thermal interface installation. Consider the 1200 V rating and 50 A continuous current capability for auxiliary inverter designs. Evaluate the stray inductance and thermal resistance parameters against system switching frequency and cooling requirements to ensure optimal performance within the specified temperature range.

Part Context

This component belongs to the EasyBRIDGE product family, designed for compact power conversion solutions. It combines IGBT switches with diode bridges in a single insulated package. The series emphasizes ease of integration through pre-applied thermal materials and robust mechanical mounting features suitable for industrial environments.

Replacement Considerations

Consult official cross-reference data for verified substitutes. Ensure replacement parts match the 1200 V rating, 50 A current capacity, and EasyBRIDGE form factor. Verify that alternative modules support similar thermal resistance values and include compatible mounting mechanisms.
