DDB6U84N16RRBOSA1

Overview

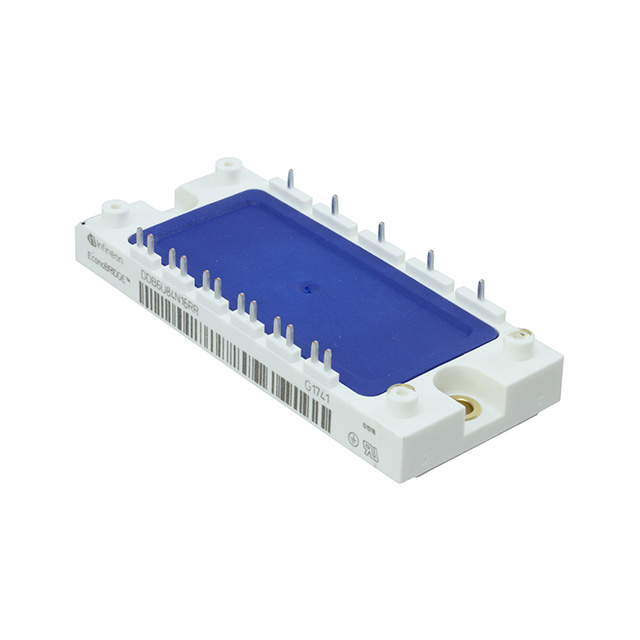

The DDB6U84N16RRBOSA1 is a diode module from Infineon Technologies, belonging to the Low Power EconoBRIDGE product family. It features a screw-mount installation style and utilizes silicon technology. The component is designed for high-power applications requiring robust thermal management and electrical isolation.

Feature Summary

• EconoBRIDGE packaging for efficient heat dissipation
• Screw-mount terminal configuration
• Integrated brake chopper topology

Applications

• Industrial motor drives
• Uninterruptible power supplies (UPS)
• Welding equipment

Procurement Notes

Verify the specific ordering suffix BOSA1 against official Infineon documentation to confirm exact pinout and accessory inclusion. Confirm RoHS compliance status and lead times directly with authorized distributors or the manufacturer before placing orders.

Selection Notes

Select this module for applications requiring integrated braking capabilities within a compact form factor. Ensure the system voltage does not exceed the 1600 V rating and verify that the thermal design accommodates the module's power dissipation characteristics under expected load conditions.

Part Context

This part belongs to the DDB6U series of diode bridges with brake choppers. It shares the EconoBRIDGE package platform with other variants in the lineup, offering standardized mounting dimensions and thermal interfaces for easy integration into existing power electronics designs.

Replacement Considerations

Check for direct substitutes such as DDB6U84N16RRBPSA1 or other B-series variants. Verify pin compatibility and thermal resistance values before swapping components to ensure circuit integrity.
