DDB6U84N16RRBPSA1

$109.58

Description：LOW POWER ECONO AG-ECONO2A-211
Series：-

SKU:67735484fa4e Category: IGBT Modules Brand: Infineon Technologies

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LOW POWER ECONO AG-ECONO2A-211
Series：-
Mfr：Infineon Technologies
Package：Tray
IGBT Type：-
Configuration：Single Chopper
Vce(on) (Max) @ Vge, Ic：3.2V @ 20V, 50A
Input：Standard
NTC Thermistor：No
Operating Temperature：150°C (TJ)
Mounting Type：Chassis Mount
Package / Case：Module
Supplier Device Package：AG-ECONO2A
Voltage - Collector Emitter Breakdown (Max)：1200 V
Current - Collector (Ic) (Max)：50 A
Power - Max：350 W
Current - Collector Cutoff (Max)：1 mA
Input Capacitance (Cies) @ Vce：3.3 nF @ 25 V

Download product information

DDB6U84N16RRBPSA1

Overview

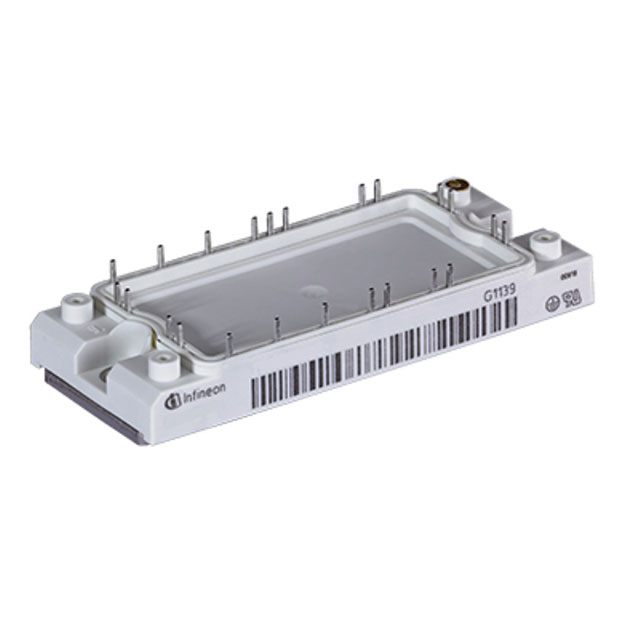

The DDB6U84N16RRBPSA1 is a single chopper IGBT module from Infineon Technologies, housed in the AG-ECONO2A package. It features a collector-emitter breakdown voltage of 1200 V and a maximum collector current of 50 A. The module supports chassis mounting and includes an integrated NTC thermistor for thermal monitoring. It operates within a junction temperature range up to 150°C and has a power dissipation rating of 350 W.

Feature Summary

Integrated NTC thermistor for precise thermal management
Chassis mount design for robust mechanical stability
Single chopper configuration optimized for specific circuit topologies

Applications

Industrial motor drives
Power supply units
Inverter systems

Procurement Notes

Verify component authenticity through official Infineon channels or authorized distributors. Confirm that the received part matches the exact ordering code DDB6U84N16RRBPSA1. Check datasheet revisions for any updates regarding electrical characteristics or handling instructions prior to integration into final designs.

Selection Notes

Select this module when a 1200 V, 50 A single chopper topology is required in an AG-ECONO2A form factor. Ensure the application environment accommodates chassis mounting constraints. Verify that the 350 W power dissipation capability aligns with the thermal management strategy of the target system.

Part Context

This component belongs to Infineon's Econo series of discrete semiconductor modules. It utilizes silicon technology for high-power switching applications. The module is designed for industrial environments requiring reliable performance under significant electrical loads.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Consult Infineon technical support for cross-reference options if this obsolete part is no longer sourced.
