Product Detailed Parameters
- Description：LOW POWER EASY AG-EASY1B-2
- Series：-
- Mfr：Infineon Technologies
- Package：Tray
- IGBT Type：-
- Configuration：-
- Vce(on) (Max) @ Vge, Ic：-
- Input：-
- NTC Thermistor：-
- Operating Temperature：-
- Mounting Type：-
- Package / Case：-
- Supplier Device Package：-
- Voltage - Collector Emitter Breakdown (Max)：-
- Current - Collector (Ic) (Max)：-
- Power - Max：-
- Current - Collector Cutoff (Max)：-
- Input Capacitance (Cies) @ Vce：-
Download product information
Overview

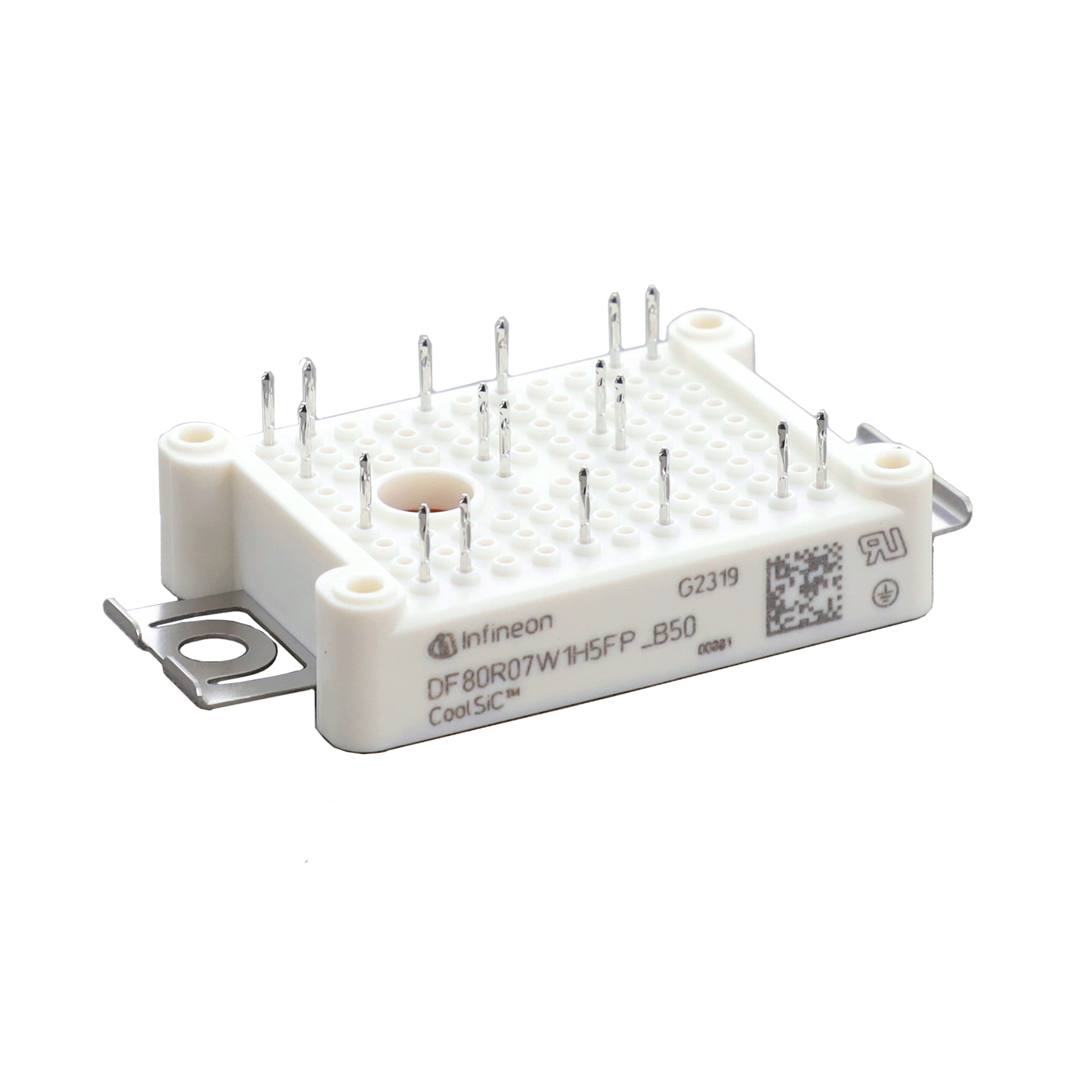

The DF80R07W1H5FPB50BPSA1 is a silicon IGBT module from Infineon Technologies, belonging to the DFXR07W1X5J series. It utilizes the EASY package format and features an N-channel configuration with a single switch topology. The component is designed for industrial applications and operates within a temperature range of -40°C to +150°C junction temperature. Key electrical specifications include a collector-emitter voltage (Vces) of 650 V and a continuous collector current (Ic) of 80 A at 25°C. The saturation voltage (Vcesat) is typically 1.75 V at 80 A. The module incorporates an integrated diode with a reverse recovery charge (Qrr) of 3.9 µC.
Feature Summary
- Integrated anti-parallel diode for efficient commutation
- Trench field-stop technology for optimized switching performance
- Low thermal resistance for effective heat dissipation
Applications
- Industrial motor drives
- Uninterruptible power supplies (UPS)
- High-frequency inverters
Procurement Notes
Verify the specific suffix B50 against official datasheets to confirm pinout and terminal configuration. Ensure the ordering code matches the exact RoHS compliance status required for your manufacturing process. Cross-reference the batch date code with your assembly timeline to manage shelf life constraints effectively during procurement planning.
Selection Notes
Select this module when a 650 V rating and 80 A current capacity are required in a compact EASY package. Consider the thermal impedance characteristics for your heatsink design. Verify that the gate drive requirements align with the specified Vges limits and switching energy values provided in the technical documentation for optimal system efficiency.
Part Context
This component is part of Infineon's DFXR07W1X5J family, which focuses on high-performance IGBT modules for medium-power applications. The EASY package offers a standardized footprint for easy integration into existing PCB layouts. This series is engineered to balance switching losses and conduction losses for improved overall system efficiency in power conversion stages.
Replacement Considerations
Check for direct substitutes within the same DFXR series or compatible EASY package variants. Ensure voltage and current ratings meet or exceed original specifications. Verify thermal interface compatibility and pin alignment before substituting any alternative part numbers.
