Product Detailed Parameters
- Description：IGBT 425V 15A TO-252
- Series：-
- Mfr：Sanken Electric USA Inc.
- Package：Tape & Reel (TR)
- IGBT Type：-
- Voltage - Collector Emitter Breakdown (Max)：425 V
- Current - Collector (Ic) (Max)：15 A
- Current - Collector Pulsed (Icm)：-
- Vce(on) (Max) @ Vge, Ic：1.7V @ 10V, 10A
- Power - Max：55 W
- Switching Energy：-
- Input Type：Standard
- Gate Charge：-
- Td (on/off) @ 25°C：-
- Test Condition：-
- Reverse Recovery Time (trr)：-
- Operating Temperature：150°C (TJ)
- Mounting Type：Surface Mount
- Package / Case：TO-252-3, DPAK (2 Leads + Tab), SC-63
- Supplier Device Package：TO-252
- Grade：-
- Qualification：-
Download product information
Overview

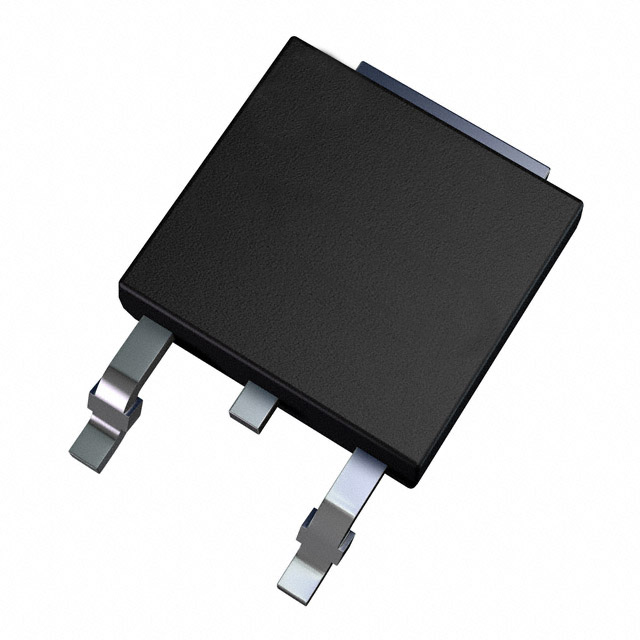

The DGG4015 is an N-channel Ignition IGBT manufactured by Sanken Electric, housed in a TO-252 surface-mount package. It features a built-in Zener diode between the collector and gate with a typical clamping voltage of 400V, providing integrated gate protection. The device supports a continuous collector current of 15A and operates up to a junction temperature of 150°C. Key electrical parameters include a collector-emitter breakdown voltage of 400V (max 425V) and a low saturated voltage of 1.4V maximum at VGE=10V and IC=5A. The component is explicitly marked as not recommended for new designs.
Feature Summary
- Integrated Zener diode between collector and gate for self-clamping protection
- Low saturated collector-emitter voltage for improved efficiency
- Surface-mount TO-252 package design
Applications
- Ignitor circuits
Procurement Notes
Verify the current manufacturing status before procurement, as the datasheet explicitly states this component is not recommended for new designs. Confirm availability through authorized distributors or secondary markets. Ensure the TO-252 package footprint matches the target PCB layout. Validate that the 400V clamping characteristic meets the specific circuit requirements for gate protection.
Selection Notes
Select this component only for legacy system maintenance or replacement where the original design utilized this specific part. Consider the 15A continuous current rating and 150°C junction temperature limit during thermal analysis. Evaluate the 400V internal Zener clamp against the maximum allowable gate-emitter voltage of ±20V to ensure adequate protection margins for the driving circuitry.
Part Context
The DGG4015 belongs to Sanken Electric's line of power semiconductors designed for high-voltage switching applications. It is categorized as an N-channel Ignition IGBT, distinct from standard MOSFETs due to its bipolar output characteristics and integrated protection features. The TO-252 package provides a compact solution for moderate power dissipation needs in industrial or automotive contexts.
Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided documentation. Due to the 'Not Recommended for New Designs' status, direct equivalents should be sourced carefully, ensuring compatibility with the 400V clamping voltage and TO-252 pinout.
