Product Detailed Parameters
- Description：MOSFET POWERQFN 3X3 P -20V
- Series：-
- Mfr：Diotec Semiconductor
- Package：Bulk
- FET Type：P-Channel
- Technology：MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss)：20 V
- Current - Continuous Drain (Id) @ 25°C：35A (Tc)
- Drive Voltage (Max Rds On, Min Rds On)：2.5V, 10V
- Rds On (Max) @ Id, Vgs：3.9mOhm @ 20A, 10V
- Vgs(th) (Max) @ Id：1.2V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs：58 nC @ 10 V
- Vgs (Max)：±12V
- Input Capacitance (Ciss) (Max) @ Vds：6850 pF @ 10 V
- FET Feature：-
- Power Dissipation (Max)：52W (Tc)
- Operating Temperature：-55°C ~ 150°C (TJ)
- Grade：-
- Qualification：-
- Mounting Type：Surface Mount
- Supplier Device Package：8-QFN (3x3)
- Package / Case：8-PowerVDFN
Download product information
Overview

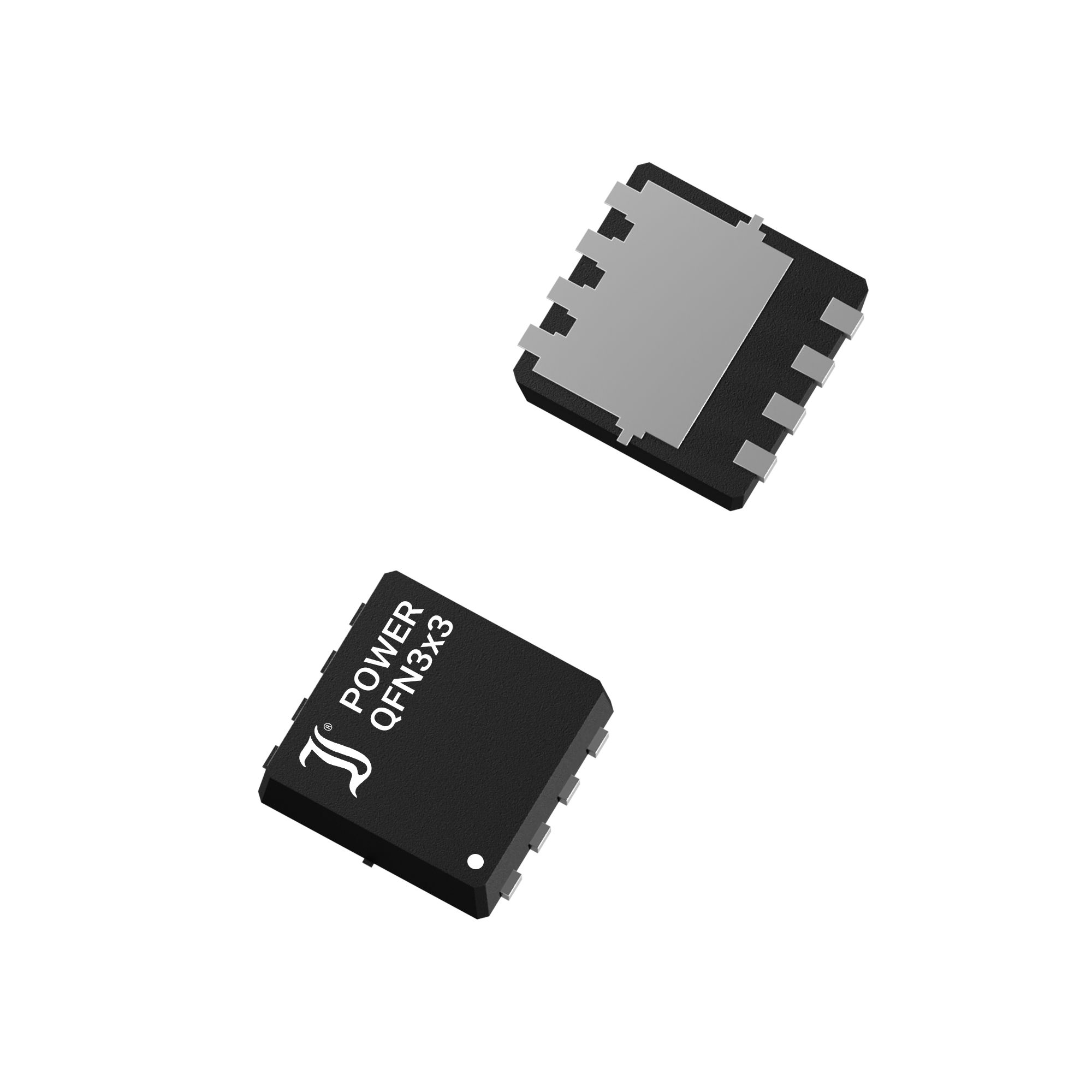

The DI035P02PT is a P-Channel Power MOSFET manufactured by Diotec Semiconductor in a QFN3x3 (DFN3030) package. It features a drain-source voltage of -20 V and a continuous drain current of -35 A at 25°C. The device exhibits a low on-state resistance of less than 3.9 mΩ, with a maximum power dissipation of 52 W and a junction temperature rating up to 150°C. Single pulse avalanche energy is rated at 20 mJ.
Feature Summary
- Tiny, space-saving package with low profile height
- Low on-state resistance for efficient power handling
- Fast switching times combined with low gate charge
Applications
- Power Management Units
- Battery powered devices
- Load Switches
Procurement Notes
Verify the specific ordering suffix when purchasing. Suffix -Q indicates AEC-Q101 compliance, while suffix -AQ denotes AEC-Q101 qualification. Confirm that the component meets RoHS standards and REACH regulations before integration into final assemblies.
Selection Notes
Select this component for applications requiring high current density within a compact footprint. The low thermal resistance facilitates effective heat dissipation through the drain pad. Ensure the design accommodates the specified gate-source voltage limits and operates within the defined thermal boundaries.
Part Context
This part belongs to the DI0XX series from Diotec Semiconductor, designed for commercial and industrial grade environments. It utilizes silicon technology and is supplied in taped and reeled formats suitable for automated surface mount assembly processes.
Replacement Considerations
Check Diotec's official documentation for direct replacements or similar specifications. Verify pinout compatibility and electrical parameters against alternative suppliers if sourcing changes are necessary.
