DI100N04PT-AQ

$0.36

Description：DI100N04PT-AQ
Series：-
Mfr：Diotec Semiconductor
Package：Bulk

SKU:d6f2d1a9ccde Category: Single FETs, MOSFETs Brand: Diotec Semiconductor

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：DI100N04PT-AQ
Series：-
Mfr：Diotec Semiconductor
Package：Bulk
FET Type：N-Channel
Technology：MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)：40 V
Current - Continuous Drain (Id) @ 25°C：100A (Tc)
Drive Voltage (Max Rds On, Min Rds On)：4.5V, 10V
Rds On (Max) @ Id, Vgs：2.5mOhm @ 20A, 10V
Vgs(th) (Max) @ Id：2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs：-
Vgs (Max)：±20V
Input Capacitance (Ciss) (Max) @ Vds：-
FET Feature：-
Power Dissipation (Max)：46.1W (Tc)
Operating Temperature：-55°C ~ 175°C (TJ)
Grade：Automotive
Qualification：AEC-Q101
Mounting Type：Surface Mount
Supplier Device Package：8-QFN (3x3)
Package / Case：8-PowerVDFN

Download product information

DI100N04PT-AQ

Overview

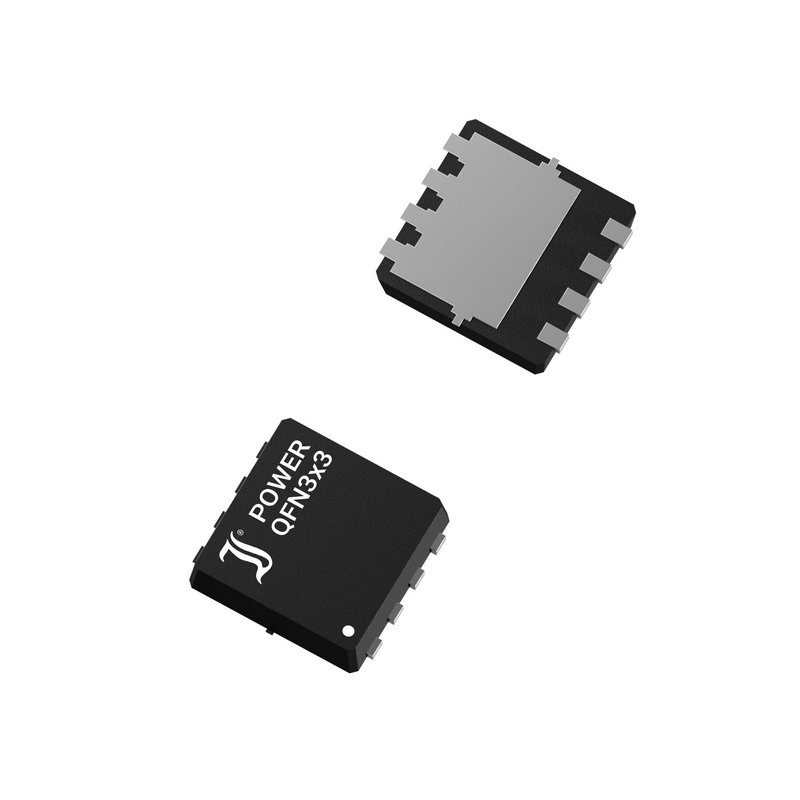

The DI100N04PT-AQ is an N-Channel Power MOSFET in a QFN3x3 package. It features a drain-source voltage of 40 V and continuous drain current of 100 A at 25°C case temperature. The on-state resistance is typically 2 mΩ with a maximum of 3 mΩ. Maximum junction temperature is 175°C, and power dissipation is 46.1 W at 25°C.

Feature Summary

Logic-level gate drive capability
Low profile height for space-saving designs
Fast switching times with low gate charge
AEC-Q101 qualified automotive grade

Applications

Power Management Units
Battery powered devices
Load Switches
Polarity Protection

Procurement Notes

Verify the specific suffix -AQ to confirm AEC-Q101 qualification status. Ensure thermal management meets the specified RthJC requirements. Confirm component authenticity through authorized channels. Check datasheet version dates for latest electrical characteristics.

Selection Notes

Select this component for high-current applications requiring compact footprints. Evaluate thermal resistance against system heat sinking capabilities. Verify gate drive voltage compatibility with the logic-level threshold specifications.

Part Context

This part belongs to Diotec's N-Channel Power MOSFET series designed for commercial and industrial use. It utilizes advanced trench technology to achieve low on-resistance within a small surface-mount package suitable for automated assembly processes.

Replacement Considerations

Check pinout compatibility and thermal resistance values when substituting. Verify that alternative components meet the 40V drain-source voltage requirement and support the necessary continuous current ratings.
