Product Detailed Parameters
- Description：MOSFET P-CH 20V 2.5A U-WLB1510-6
- Series：-
- Mfr：Diodes Incorporated
- Package：Tape & Reel (TR)
- FET Type：P-Channel
- Technology：MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss)：20 V
- Current - Continuous Drain (Id) @ 25°C：2.5A (Ta)
- Drive Voltage (Max Rds On, Min Rds On)：1.5V, 4.5V
- Rds On (Max) @ Id, Vgs：70mOhm @ 1A, 4.5V
- Vgs(th) (Max) @ Id：1V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs：2.9 nC @ 4.5 V
- Vgs (Max)：±8V
- Input Capacitance (Ciss) (Max) @ Vds：210 pF @ 10 V
- FET Feature：-
- Power Dissipation (Max)：920mW (Ta)
- Operating Temperature：-55°C ~ 150°C (TJ)
- Grade：-
- Qualification：-
- Mounting Type：Surface Mount

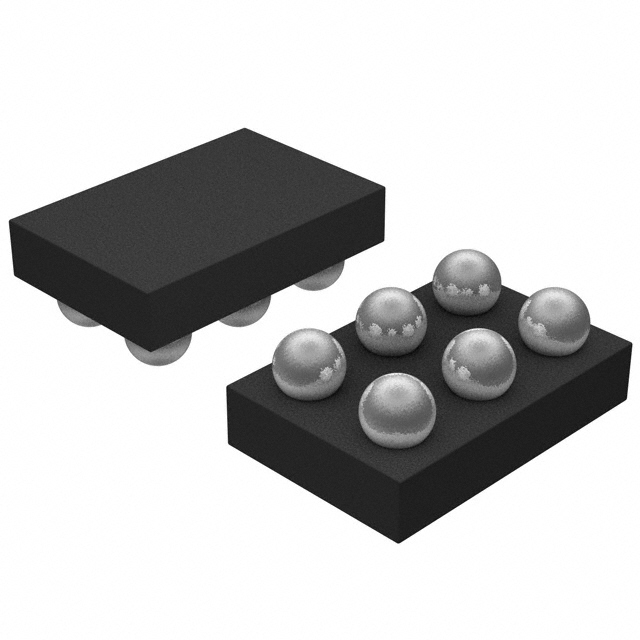

- Supplier Device Package：U-WLB1510-6
- Package / Case：6-UFBGA, WLBGA
Download product information
Overview
The DMP2070UCB6-7 is a P-channel enhancement mode MOSFET manufactured by Diodes Incorporated. It features a drain-source voltage (Vdss) of -20 V and a continuous drain current (Id) of -2.5 A at ambient temperature. The device exhibits a maximum on-resistance (Rds(on)) of 70 mΩ at Vgs = -4.5 V and Id = 1 A. Power dissipation is rated at 920 mW. It utilizes the U-WLB1510-6 surface-mount package.
Feature Summary
- P-channel enhancement mode technology for low on-state resistance
- Designed for high efficiency power management applications
- Totally lead-free and fully RoHS compliant construction
Applications
- High efficiency power management circuits
- DC/DC converter output stages
- Load switch applications
Procurement Notes
Verify component authenticity through authorized Diodes Incorporated distributors or certified supply chain partners. Confirm package integrity and marking codes match the U-WLB1510-6 specification. Check for obsolescence status as some listings indicate this part may be discontinued. Ensure storage conditions comply with moisture sensitivity levels for leadless packages to prevent soldering defects during assembly.
Selection Notes
Select this component when a compact P-channel solution is required for 20 V systems. The U-WLB1510-6 package offers a small footprint suitable for space-constrained designs. Compare Rds(on) performance against alternative packages like X4-DSN1006-3 if higher current handling is needed. Verify gate drive voltage compatibility with the specified 4.5 V threshold for optimal conduction.
Part Context
This device belongs to the DMP2070 series of P-channel MOSFETs from Diodes Incorporated. It shares design characteristics with other members such as the DMP2075UFDB-7, which offers similar voltage ratings but different current capabilities and packaging. The series focuses on minimizing on-resistance while maintaining superior switching performance for portable electronics.
Replacement Considerations
Check for direct substitutes within the DMP2070 family. Verify pinout compatibility for U-WLB1510-6 packages. Consider DMP2075UFDB-7 if higher current capacity is acceptable despite package differences.
