DMP3017SFK-7

$0.70

Description：MOSFET P-CH 30V 10.4A 6UDFN
Series：-
Mfr：Diodes Incorporated
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:00d722f38d45 Category: Single FETs, MOSFETs Brand: Diodes Incorporated

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：MOSFET P-CH 30V 10.4A 6UDFN
Series：-
Mfr：Diodes Incorporated
Package：Tape & Reel (TR),Cut Tape (CT)
FET Type：P-Channel
Technology：MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)：30 V
Current - Continuous Drain (Id) @ 25°C：10.4A (Ta)
Drive Voltage (Max Rds On, Min Rds On)：4.5V, 10V
Rds On (Max) @ Id, Vgs：14mOhm @ 9.5A, 10V
Vgs(th) (Max) @ Id：3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs：90 nC @ 10 V
Vgs (Max)：±25V
Input Capacitance (Ciss) (Max) @ Vds：4414 pF @ 15 V
FET Feature：-
Power Dissipation (Max)：1W (Ta)
Operating Temperature：-55°C ~ 150°C (TJ)
Grade：-
Qualification：-
Mounting Type：Surface Mount

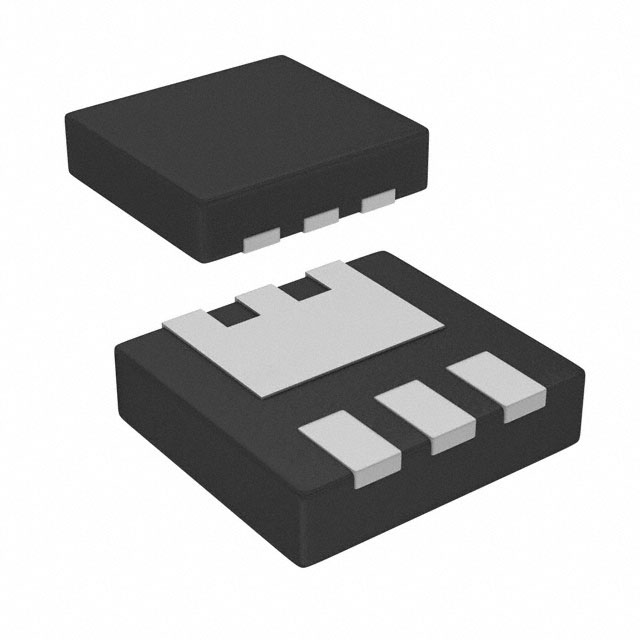

Supplier Device Package：U-DFN2523-6
Package / Case：6-PowerUDFN

Download product information

DMP3017SFK-7

Overview

The DMP3017SFK-7 is a P-channel enhancement mode MOSFET manufactured by Diodes Incorporated. It features a U-DFN2523-6 surface-mount package and operates with a drain-source voltage of -30V. The device provides a maximum on-resistance of 14mΩ at VGS=-10V and 25mΩ at VGS=-4.5V, supporting continuous drain currents of -10.4A and -7.8A respectively at +25°C. Key electrical parameters include a gate threshold voltage range of -1V to -2.5V, total gate charge up to 90nC at -10V, and input capacitance up to 4414pF. Thermal characteristics specify a junction-to-ambient resistance of 123°C/W on FR-4 without thermal vias.

Feature Summary

Low on-state resistance for high efficiency power management
ESD protected gate structure
Qualified to AEC-Q101 standards for automotive reliability

Applications

Load Switch
Power Management Functions
DC-DC Converters

Procurement Notes

Verify the specific ordering suffix when purchasing. The -7 suffix indicates a tape and reel quantity of 3,000 units, while the -13 suffix corresponds to 10,000 units per reel. Confirm that the required packaging format aligns with the intended manufacturing process before placing orders.

Selection Notes

Select this component for applications requiring low conduction losses in compact designs. Ensure the driving circuit can supply sufficient gate voltage to achieve the minimum on-resistance values. Verify thermal management requirements based on the specified junction-to-ambient resistance and expected duty cycles.

Part Context

This part belongs to the DMP3017 series from Diodes Incorporated. It utilizes a U-DFN2523-6 case design, which is a molded plastic package with nickel-palladium-gold terminals over a copper leadframe. The device is fully RoHS compliant and halogen-free.

Replacement Considerations

The datasheet lists DMP3017SFK-13 as an alternative packaging option within the same product family. No other cross-model substitutes are documented in the provided source material.
