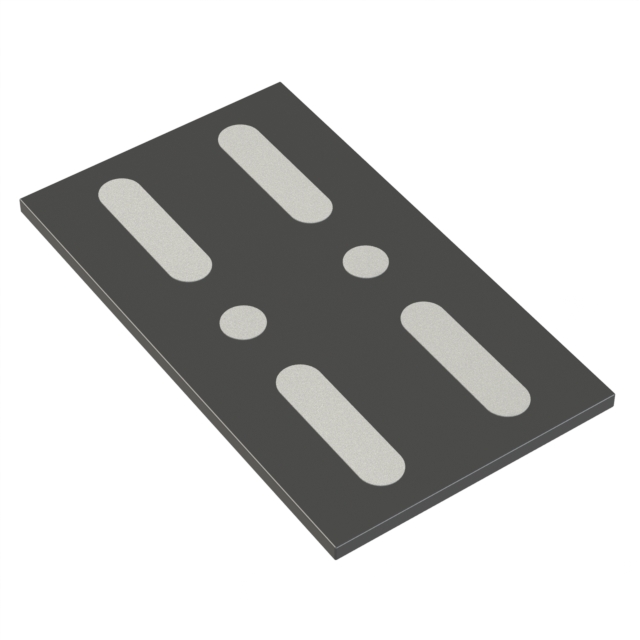

EFC2J004NUZTDG

$0.65

Description：MOSFET NCH 12V WLCSP6 DUAL
Series：-

SKU:da5d1c219781 Category: FET, MOSFET Arrays Brand: onsemi

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：MOSFET NCH 12V WLCSP6 DUAL
Series：-
Mfr：onsemi
Package：Tape & Reel (TR),Cut Tape (CT)
Technology：-
Configuration：-
FET Feature：-
Drain to Source Voltage (Vdss)：-
Current - Continuous Drain (Id) @ 25°C：-
Rds On (Max) @ Id, Vgs：-
Vgs(th) (Max) @ Id：-
Gate Charge (Qg) (Max) @ Vgs：-
Input Capacitance (Ciss) (Max) @ Vds：-
Power - Max：-
Operating Temperature：-
Mounting Type：-
Package / Case：-
Supplier Device Package：-
Grade：-
Qualification：-

Download product information

EFC2J004NUZTDG

Overview

The EFC2J004NUZTDG is a dual N-channel enhancement-mode power MOSFET manufactured by onsemi. It utilizes silicon technology and is housed in a WLCSP package. The device is designed for low-voltage applications, featuring a drain-source voltage (Vds) of 12 V and a continuous drain current (Id) of 32 A. Key electrical parameters include a maximum on-resistance (Rds(on)) of 2.5 mΩ at a gate-source voltage (Vgs) of 4.5 V. The component supports an operating temperature range from -55°C to +150°C and has a power dissipation rating of 1.6 W.

Feature Summary

Dual N-channel configuration integrated into a single compact unit
Optimized for low on-resistance to minimize conduction losses
Enhanced mode operation suitable for direct logic control

Applications

Single-cell lithium-ion battery protection circuits
Power management systems in portable electronics
Battery-powered device load switching

Procurement Notes

Verify the specific ordering suffix to confirm the tape and reel packaging quantity, as variations exist within the product family. Confirm RoHS compliance status through official documentation before integration. Check for end-of-life notices or production change notifications to ensure long-term supply stability for the design.

Selection Notes

Select this component when a dual N-channel MOSFET with high current capability is required in a minimal footprint. Ensure the application voltage does not exceed the 12 V drain-source rating. Verify that the thermal management strategy accommodates the 1.6 W power dissipation limit in the intended enclosure environment.

Part Context

This part belongs to onsemi's EFC series of power MOSFETs, which are engineered for space-constrained consumer and industrial applications. The series emphasizes high current density and low resistance in advanced wafer-level packages, targeting efficient power delivery in modern mobile and IoT devices.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source material. Evaluate alternative dual N-channel WLCSP MOSFETs with compatible Vds, Id, and Rds(on) specifications if replacement is necessary.
