Product Detailed Parameters
- Description：MOSFET 2N-CH EFCP1818
- Series：-
- Mfr：onsemi
- Package：Tape & Reel (TR),Bulk
- Technology：MOSFET (Metal Oxide)
- Configuration：2 N-Channel (Dual) Common Drain
- FET Feature：Logic Level Gate, 2.5V Drive
- Drain to Source Voltage (Vdss)：-
- Current - Continuous Drain (Id) @ 25°C：-
- Rds On (Max) @ Id, Vgs：-
- Vgs(th) (Max) @ Id：-
- Gate Charge (Qg) (Max) @ Vgs：25.4nC @ 4.5V
- Input Capacitance (Ciss) (Max) @ Vds：-
- Power - Max：1.6W
- Operating Temperature：150°C (TJ)
- Mounting Type：Surface Mount
- Package / Case：4-XFBGA, FCBGA
- Supplier Device Package：EFCP1818-4CC-037
- Grade：-
- Qualification：-
Download product information
Overview

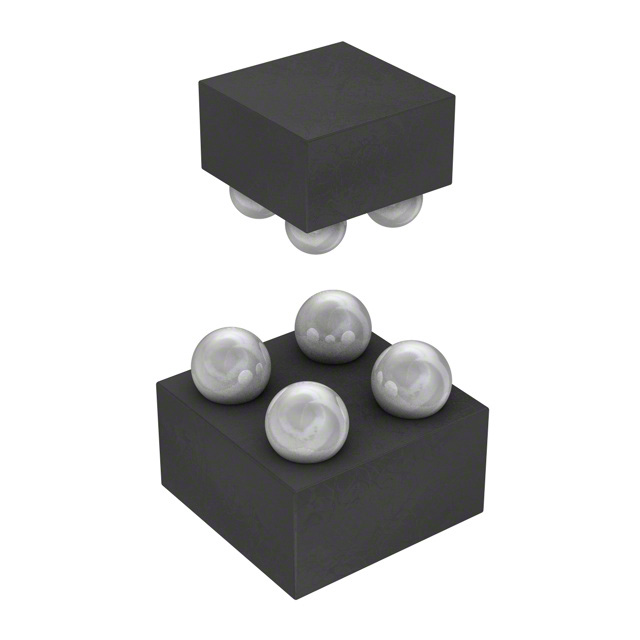

The EFC4618R-P-TR is a dual N-channel MOSFET array manufactured by onsemi, housed in the EFCP1818-4CC-037 surface-mount package. It features a drain-source breakdown voltage of 24 V and supports a continuous drain current of 6 A. The device exhibits a maximum on-resistance of 23 mΩ between drain and source. This component is classified as an FET array designed for common drain configurations.
Feature Summary
- Dual N-channel configuration within a single compact surface-mount package
- Low on-resistance characteristics for efficient power switching
- Designed for high-current applications with 6 A continuous drain capability
Applications
- Power management circuits requiring dual channel switching
- Battery protection systems utilizing common drain topology
- DC-DC converter output stages
Procurement Notes
This component is officially scheduled for obsolescence and will be discontinued by the manufacturer. Procurement should verify final availability through authorized distributors before integration into new designs. Engineers must confirm end-of-life status directly with onsemi to ensure supply chain stability for existing production runs.
Selection Notes
Select this part only if the specific 24 V rating and 6 A current capacity align with system requirements. Verify that the EFCP1818-4CC-037 package footprint matches the PCB layout constraints. Due to the obsolete status, alternative components with similar electrical parameters and compatible pinouts should be evaluated for long-term sustainability.
Part Context
The EFC4618R-P-TR belongs to the FET and MOSFET arrays category from onsemi. It integrates two N-channel MOSFETs into a unified package, simplifying board space usage compared to discrete components. The product line focuses on providing reliable switching solutions for consumer and industrial electronics requiring compact power handling.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Users must consult onsemi official channels or distributor databases for cross-reference recommendations due to the discontinued status.
