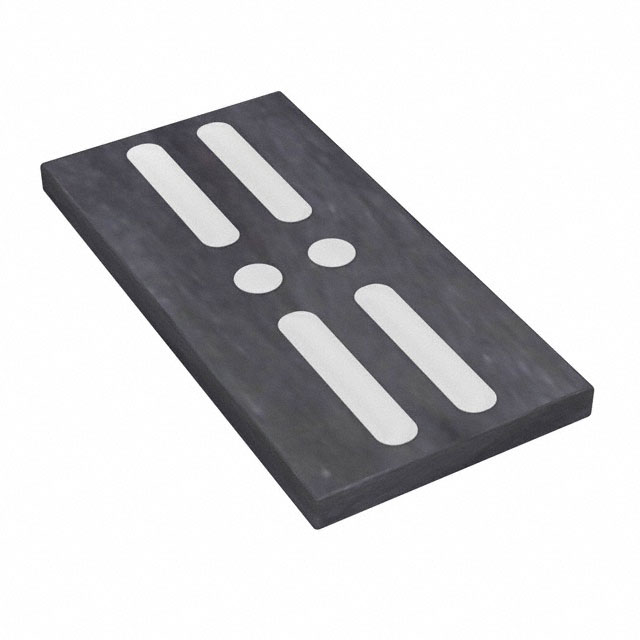

EFC6611R-TF

Description：MOSFET 2N-CH 12V 27A 6CSP
Series：-

SKU:ddebfe5c2104 Category: FET, MOSFET Arrays Brand: onsemi

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：MOSFET 2N-CH 12V 27A 6CSP
Series：-
Mfr：onsemi
Package：Tape & Reel (TR)
Technology：MOSFET (Metal Oxide)
Configuration：2 N-Channel (Dual) Common Drain
FET Feature：Logic Level Gate, 2.5V Drive
Drain to Source Voltage (Vdss)：-
Current - Continuous Drain (Id) @ 25°C：-
Rds On (Max) @ Id, Vgs：-
Vgs(th) (Max) @ Id：-
Gate Charge (Qg) (Max) @ Vgs：100nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds：-
Power - Max：2.5W
Operating Temperature：150°C (TJ)
Mounting Type：Surface Mount
Package / Case：6-SMD, No Lead
Supplier Device Package：6-CSP (1.77x3.54)
Grade：-
Qualification：-

Download product information

EFC6611R-TF

Overview

The EFC6611R-TF is an N-channel depletion-mode MOSFET manufactured by onsemi. It features a maximum drain-source voltage of 12 V and a continuous drain current rating of 27 A. The device utilizes a CSP package with six pins for surface mount installation. Key electrical parameters include a maximum drain-source resistance of 6.3 mΩ, a gate threshold voltage range from 0.5 V to 1.3 V, and a maximum power dissipation of 2.5 W. The component operates at temperatures up to +150 °C and contains two chip elements in a common-drain configuration.

Feature Summary

Depletion mode operation for normally-on functionality
Low on-state resistance for efficient power handling
High thermal stability suitable for demanding environments

Applications

Power management circuits requiring normally-on switches
Automotive electronic systems
Industrial control applications

Procurement Notes

Verify the specific ordering suffix against official manufacturer documentation to ensure correct packaging and tape-and-reel specifications. Confirm that the component meets all relevant automotive qualification standards required for the intended application environment before finalizing procurement decisions.

Selection Notes

Select this component when a normally-on N-channel switch is required within a 12 V system. Ensure the design accommodates the depletion mode characteristics where the device conducts at zero gate-source voltage. Verify that the package thermal performance supports the expected power dissipation under worst-case operating conditions.

Part Context

This part belongs to the family of low-voltage, high-current depletion-mode MOSFETs designed for robust switching applications. The specific model integrates advanced trench technology to minimize conduction losses while maintaining reliable performance in compact surface-mount packages suitable for automated assembly processes.

Replacement Considerations

Consult official substitution guides for verified equivalent parts. Do not assume compatibility based solely on pin count or voltage ratings without verifying threshold voltage and on-resistance specifications.
