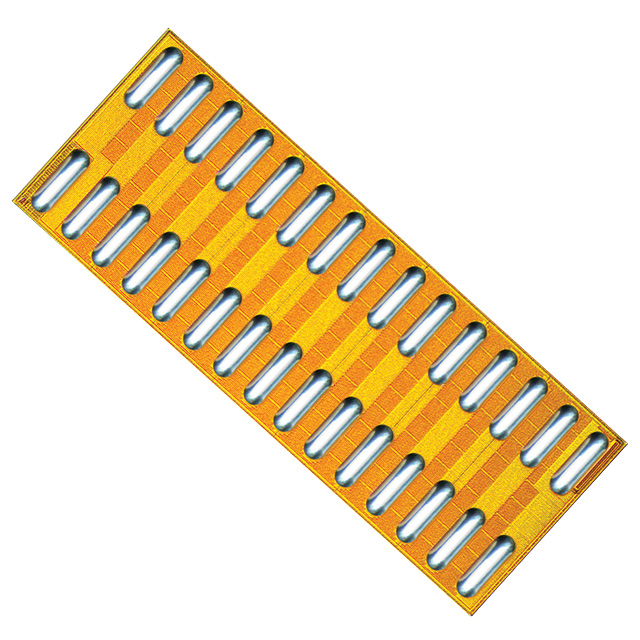

EPC2206

Overview

The EPC2206 is an automotive-grade, enhancement-mode gallium nitride (GaN) power transistor designed for high-efficiency power conversion. It features an N-channel configuration with a drain-source breakdown voltage of 80 V and a continuous drain current rating of 90 A at Ta. The device exhibits a typical on-resistance (Rds(on)) of 2.2 mΩ at 5 V or 6 V gate drive and 29 A. This component utilizes GaN technology to achieve low switching losses and zero reverse recovery charge, supporting high-frequency operation in compact designs.

Feature Summary

• Enhancement-mode GaN technology enabling fast switching speeds and reduced driver power requirements
• Zero reverse recovery charge (Qrr) eliminating body diode conduction losses during hard-switching events
• Automotive qualification ensuring reliability for demanding vehicle electronic environments

Applications

• 48 V power distribution systems in automotive architectures
• High-efficiency DC-DC converters for electric vehicles
• On-board chargers and auxiliary power modules

Procurement Notes

Verify the specific ordering suffix to confirm package type and reel specifications. Ensure compatibility with SAC305 Type 4 solder alloys as recommended by the manufacturer. Confirm thermal management requirements align with the die form factor. Validate that the application circuit supports the enhancement-mode gate threshold characteristics. Check for any specific automotive quality certifications required by your supply chain standards.

Selection Notes

Select this component when high power density and efficiency are critical in automotive applications. The 80 V rating suits 48 V systems, while the low Rds(on) minimizes conduction losses. Consider the die format for custom PCB integration rather than standard packages. Evaluate gate drive requirements to leverage the low Qg for high-frequency performance. Compare total system size against traditional silicon MOSFET solutions to quantify volume savings.

Part Context

The EPC2206 belongs to Efficient Power Conversion Corporation's automotive GaN FET portfolio. It represents a shift from silicon-based MOSFETs to wide-bandgap semiconductors for vehicle electronics. This series targets the growing demand for efficient power management in modern electric and hybrid vehicles. The device complements other EPC automotive parts by offering a standardized 80 V voltage class.

Replacement Considerations

Direct pin-compatible replacements are limited due to the unique die packaging. Silicon alternatives require significant circuit redesign to match efficiency. Verify if existing layouts support the thermal profile of bare die components. Consult manufacturer cross-reference lists for updated equivalents.
