F1250AA03

Power Line Filter Modules Overview

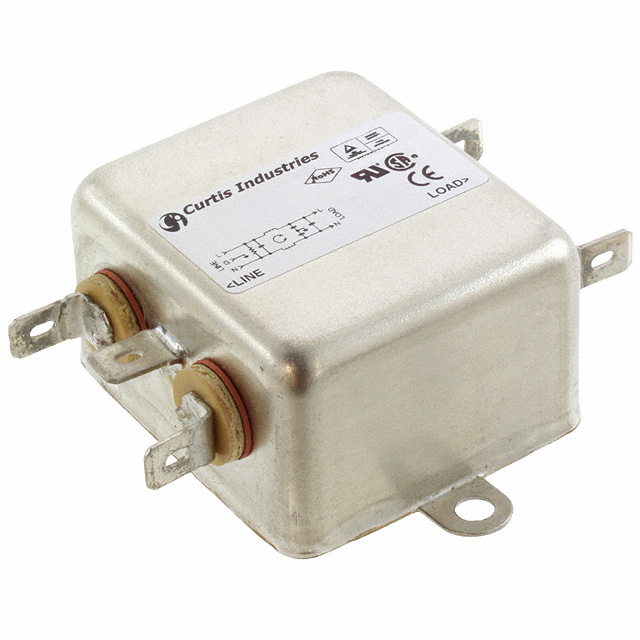

The Curtis Industries F1250AA03 is a chassis-mount RFI line filter designed for AC power applications. It features a 250VAC rating and supports an output current of 3 Amps. The component utilizes quick connect terminals for both line and load termination, facilitating straightforward integration into equipment enclosures. This general-purpose filter provides electromagnetic interference suppression for single-phase circuits.

Power Line Filter Modules Feature Summary

• Chassis mount design for secure enclosure installation
• Quick connect termination style for simplified wiring
• General purpose RFI filtering capability

Power Line Filter Modules Applications

• Industrial control panels
• Medical equipment power supplies
• Audio/Video signal processing units

Power Line Filter Modules Procurement Notes

Verify the specific voltage and current ratings against your system requirements before procurement. Confirm that the quick connect terminal dimensions match your existing wiring harnesses. Ensure the chassis mounting hole pattern aligns with your enclosure design to avoid mechanical integration issues during assembly.

Power Line Filter Modules Selection Notes

Select this model when a 3A capacity and 250VAC rating are required for EMI suppression. Consider the quick connect interface if rapid assembly or field replacement is necessary. Evaluate the physical footprint to ensure it fits within the designated chassis space without obstructing other components or airflow paths.

Power Line Filter Modules Part Context

This part belongs to the Curtis F1200/F1250 series of RFI filters. These modules are engineered for noise reduction in sensitive electronic systems. The series offers various current ratings and termination options to accommodate different power distribution needs across industrial and commercial sectors.

Power Line Filter Modules Replacement Considerations

Cross-reference with F1250A for 1A variants if lower current suffices. Verify compatibility with F1250AA03 equivalents from other manufacturers by matching voltage, current, and terminal type specifications.
