Product Detailed Parameters
- Description：LOW POWER EASY AG-EASY2B-411
- Series：EasyPACK™
- Mfr：Infineon Technologies
- Package：Tray
- IGBT Type：Trench Field Stop
- Configuration：Three Level Inverter
- Vce(on) (Max) @ Vge, Ic：2V @ 15V, 100A
- Input：Standard
- NTC Thermistor：Yes
- Operating Temperature：-40°C ~ 150°C (TJ)
- Mounting Type：Chassis Mount
- Package / Case：Module
- Supplier Device Package：AG-EASY2B
- Voltage - Collector Emitter Breakdown (Max)：650 V
- Current - Collector (Ic) (Max)：70 A
- Power - Max：-
- Current - Collector Cutoff (Max)：32 µA
- Input Capacitance (Cies) @ Vce：6.2 nF @ 650 V
Download product information
Overview

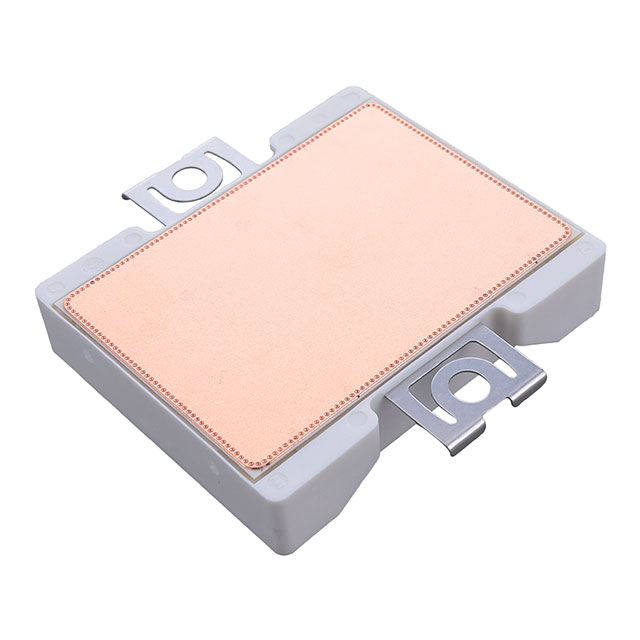

The F3L100R07W2H3B11BPSA1 is a three-phase inverter IGBT module from the EasyPACK 2B series, utilizing Trench/Fieldstop H3 technology. It features a 650 V collector-emitter voltage and a nominal current of 100 A with a repetitive peak capability of 200 A. The continuous DC collector current reaches 70 A at a heatsink temperature of 65 °C. The module incorporates PressFIT contact technology for mounting and includes an integrated NTC thermistor with a rated resistance of 5 kΩ at 25 °C. It operates within a junction temperature range of -40 °C to 150 °C.
Feature Summary
- Low inductive design architecture combined with low switching losses
- Aluminum oxide substrate providing low thermal resistance
- Integrated mounting clamps ensuring rugged mechanical stability
- Qualified for industrial applications per IEC standards
Applications
- Three-level inverter systems
- Industrial motor drives
- Solar power inverters
- Uninterruptible power supply (UPS) systems
Procurement Notes
Verify component authenticity by cross-referencing the Data Matrix barcode on the module label against official Infineon records. Confirm that the material number matches the specified part number exactly. Ensure the production date code falls within acceptable storage limits to maintain device integrity before installation.
Selection Notes
Select this module for applications requiring high blocking voltage and robust short-circuit withstand capability. The low saturation voltage contributes to reduced conduction losses. Verify that the gate drive circuitry aligns with the specified internal gate resistor values and recommended external resistances for optimal switching performance.
Part Context
This component belongs to the EasyPACK 2B family, designed for compact power conversion solutions. It integrates Trench/Fieldstop IGBTs with rapid recovery diodes. The package utilizes PressFIT technology to eliminate soldering requirements for terminal connections, facilitating reliable assembly onto cold plates or heatsinks.
Replacement Considerations
Direct replacements must match the 650 V rating, 100 A nominal current, and EasyPACK 2B footprint. Verify compatibility of the NTC thermistor characteristics if thermal monitoring is utilized. Ensure the replacement device supports the same PressFIT mounting force specifications.
