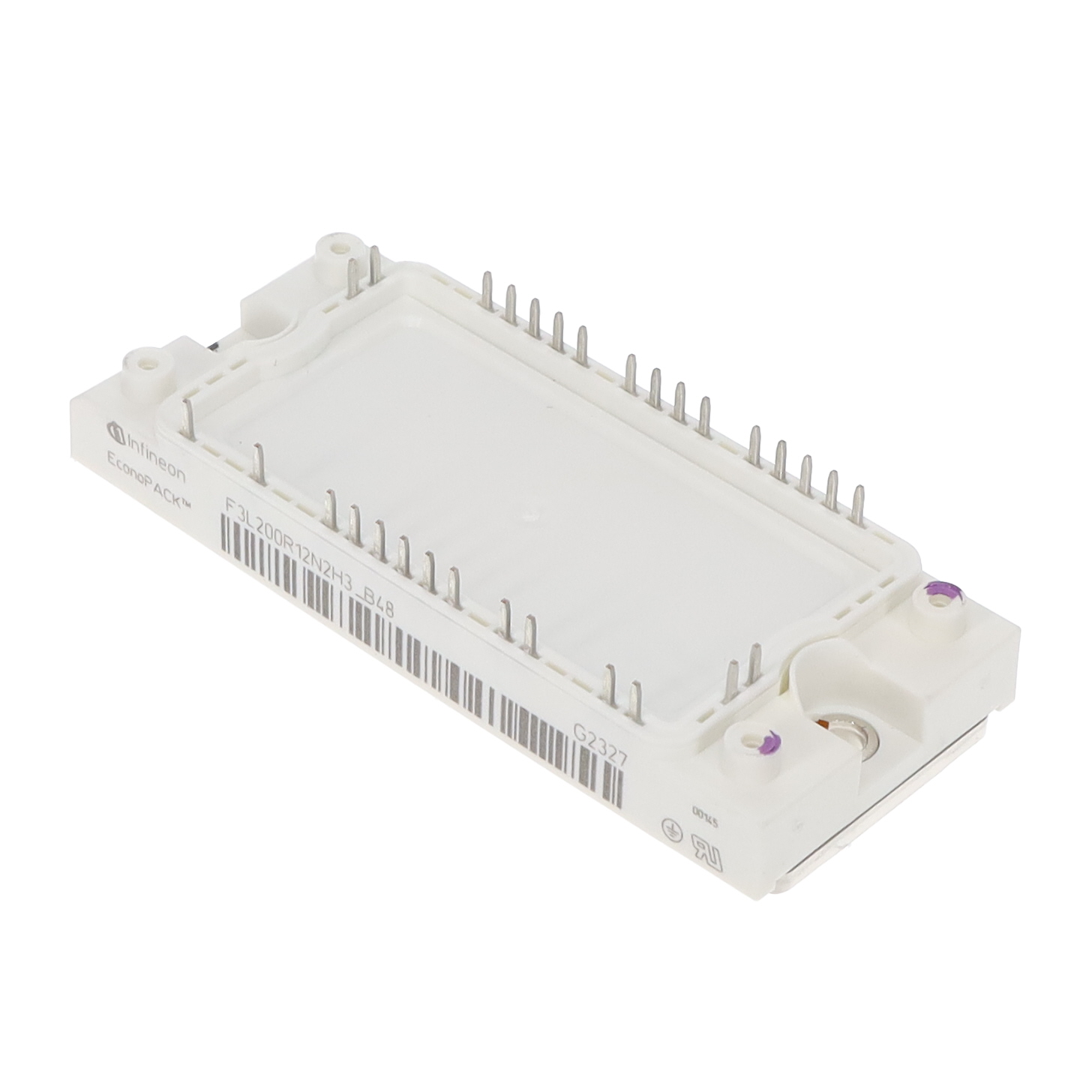

F3L200R12N2H3B48BPSA1

$77.49

Description：LOW POWER ECONO
Series：-

SKU:afb693ba5a9f Category: IGBT Modules Brand: Infineon Technologies

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LOW POWER ECONO
Series：-
Mfr：Infineon Technologies
Package：Tray
IGBT Type：-
Configuration：-
Vce(on) (Max) @ Vge, Ic：-
Input：-
NTC Thermistor：-
Operating Temperature：-
Mounting Type：-
Package / Case：-
Supplier Device Package：-
Voltage - Collector Emitter Breakdown (Max)：-
Current - Collector (Ic) (Max)：-
Power - Max：-
Current - Collector Cutoff (Max)：-
Input Capacitance (Cies) @ Vce：-

Download product information

F3L200R12N2H3B48BPSA1

Overview

The F3L200R12N2H3B48BPSA1 is a three-level IGBT module from Infineon Technologies, designed for high-efficiency power conversion. It features a 1200 V collector-emitter voltage rating and a continuous collector current of 200 A at 25°C. The module utilizes the EasyPACK 2B package and belongs to the High Speed IGBT N2 series. Key electrical parameters include a saturation voltage of 1.55 V and a maximum power dissipation of 600 W. It operates within a temperature range of -40°C to +150°C.

Feature Summary

Three-level topology for reduced switching losses
High-speed IGBT technology for efficient operation
Robust EasyPACK 2B packaging design

Applications

Industrial motor drives
Uninterruptible power supplies (UPS)
Solar inverters

Procurement Notes

Verify the specific suffix B48 against official datasheets to confirm pinout and thermal characteristics. Ensure compatibility with existing gate driver requirements and cooling solutions before integration into the final assembly.

Selection Notes

Select this component for applications requiring high current density and low conduction losses in three-level topologies. Compare the 200 A rating and 1.55 V saturation voltage against system thermal constraints and switching frequency requirements to ensure optimal performance.

Part Context

This part belongs to Infineon's High Speed IGBT family, specifically the N2 generation. It is an evolution of previous H3 series modules, offering improved switching characteristics while maintaining the standard EasyPACK 2B form factor for backward compatibility in many designs.

Replacement Considerations

Direct replacements may include the F3L200R12W2H3_B11 or F3L200R12N3H7F-B66. Verify that the alternative part number matches the exact voltage, current, and package dimensions required by the original design specifications.
