Product Detailed Parameters
- Description：LOW POWER ECONO AG-ECONO3B-411
- Series：EasyPACK™3
- Mfr：Infineon Technologies
- Package：Tray
- IGBT Type：Trench Field Stop
- Configuration：Full Bridge Inverter
- Vce(on) (Max) @ Vge, Ic：2.2V @ 15V, 150A
- Input：Three Phase Bridge Rectifier
- NTC Thermistor：Yes
- Operating Temperature：-40°C ~ 150°C (TJ)
- Mounting Type：Chassis Mount
- Package / Case：Module
- Supplier Device Package：AG-ECONO3B
- Voltage - Collector Emitter Breakdown (Max)：1700 V
- Current - Collector (Ic) (Max)：150 A
- Power - Max：-
- Current - Collector Cutoff (Max)：1 mA
- Input Capacitance (Cies) @ Vce：12.3 nF @ 25 V
Download product information
Overview

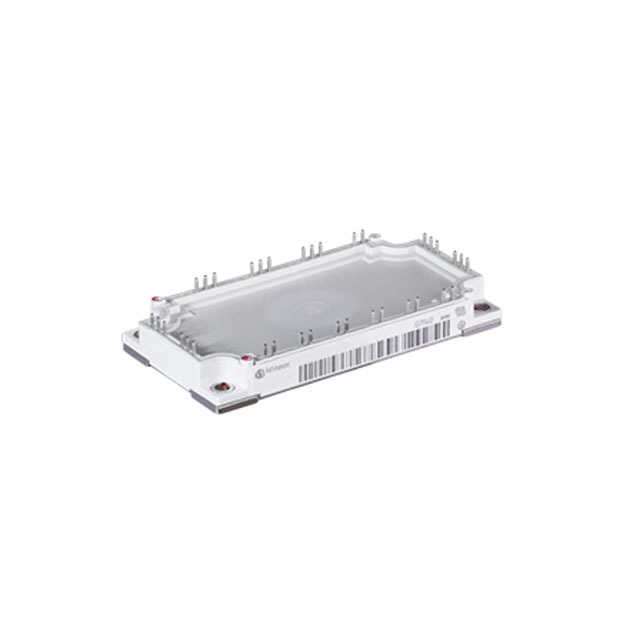

The F4150R17N3P4B58BPSA1 is an EconoPACK™3 module integrating Trench/Fieldstop IGBT4 and Emitter Controlled diode with NTC. It features a collector-emitter voltage of 1700 V, nominal current of 150 A, and peak current of 300 A. The module operates at junction temperatures up to 150 °C with low saturation voltage and positive temperature coefficient. Electrical parameters include VCES of 1700 V, ICDC of 150 A, and RthJC of 0.195 K/W per IGBT.
Feature Summary
- Trench/Fieldstop IGBT4 technology with positive temperature coefficient for low saturation voltage
- Integrated NTC temperature sensor for thermal monitoring
- Solder contact technology with isolated base plate
- Qualified for industrial applications according to IEC standards
Applications
- High power converters
- Medium voltage converters
Procurement Notes
Verify the exact ordering suffix against official Infineon documentation to confirm mechanical and electrical specifications. Confirm RoHS compliance status and check for any product discontinuance notifications before procurement. Ensure compatibility with existing system requirements.
Selection Notes
Select this module for high-power applications requiring robust industrial qualification. Consider the 1700 V rating and 150 A continuous current capability. Evaluate thermal management needs based on the specified thermal resistance values and operating temperature range.
Part Context
This component belongs to the EconoPACK™3 series from Infineon Technologies. It utilizes Trench/Fieldstop IGBT4 technology combined with an Emitter Controlled diode. The module is designed for industrial applications and includes an integrated NTC thermistor for temperature sensing.
Replacement Considerations
Consult official Infineon documentation for confirmed substitute part numbers. Verify electrical and mechanical compatibility before considering alternatives.
