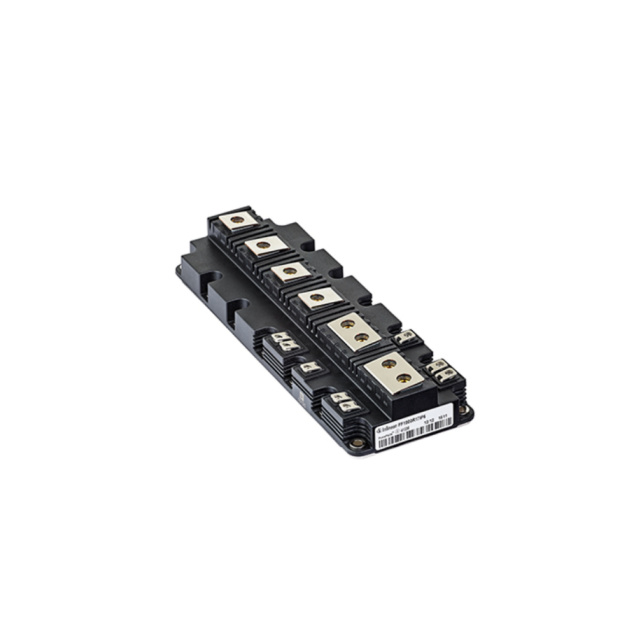

FD1000R17IE4BOSA2

$406.93

Description：IGBT MODULE 1700V 6250W
Series：PrimePACK™3

SKU:fc73cc75b6fc Category: IGBT Modules Brand: Infineon Technologies

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：IGBT MODULE 1700V 6250W
Series：PrimePACK™3
Mfr：Infineon Technologies
Package：Bulk,Tray
IGBT Type：-
Configuration：Single
Vce(on) (Max) @ Vge, Ic：2.45V @ 15V, 1000A
Input：Standard
NTC Thermistor：Yes
Operating Temperature：-40°C ~ 150°C
Mounting Type：Chassis Mount
Package / Case：Module
Supplier Device Package：Module
Voltage - Collector Emitter Breakdown (Max)：1700 V
Current - Collector (Ic) (Max)：-
Power - Max：6250 W
Current - Collector Cutoff (Max)：5 mA
Input Capacitance (Cies) @ Vce：81 nF @ 25 V

Download product information

FD1000R17IE4BOSA2

Overview

The FD1000R17IE4BOSA2 is a single-chopper IGBT module from Infineon Technologies, utilizing Trenchstop IGBT4-E4 technology. It features a 1700 V collector-emitter voltage (VCES) and a nominal continuous DC collector current of 1000 A at 25°C. The device operates with a maximum junction temperature of 150°C and includes an integrated NTC thermistor for thermal monitoring. Packaged in the PrimePACK™3 housing with a copper base plate, it offers high power density and low switching losses suitable for demanding industrial applications.

Feature Summary

Integrated NTC thermistor for precise junction temperature monitoring
High short-circuit capability up to 4000 A for robust fault protection
Low saturation voltage and optimized switching characteristics for efficiency
Copper base plate design ensuring high thermal cycling stability

Applications

Chopper applications
3-Level-Applications
High Power Converters
Wind Turbines

Procurement Notes

Verify the specific ordering suffix BOSA2 against official documentation to confirm exact manufacturing details. Confirm RoHS compliance status and check for any End-of-Life notifications or discontinuance notices prior to finalizing procurement plans.

Selection Notes

Select this component for high-power chopper circuits requiring 1700 V blocking capability. Ensure the gate drive circuit accommodates the specified internal gate resistance and peak currents. Verify that the cooling system can manage the thermal resistance values provided in the datasheet under expected operating conditions.

Part Context

This module belongs to the PrimePACK™3 series, designed for high-current industrial applications. It represents Infineon's Trenchstop IGBT4-E4 generation, offering improved performance over previous iterations. The PrimePACK™3 form factor provides standardized mounting dimensions for easy integration into existing power modules.
