FDBL86210-F085

Single FETs, MOSFETs Overview

The onsemi FDBL86210-F085 is an N-channel PowerTrench MOSFET designed for high-current automotive applications. It features a drain-source voltage (Vdss) of 150 V and a continuous drain current (Id) of 169 A at case temperature. The device achieves a maximum on-resistance (Rds(on)) of 6.3 mΩ at 10 V gate drive and 80 A. Key electrical parameters include a maximum gate charge (Qg) of 90 nC at 10 V and an input capacitance (Ciss) of 5805 pF at 75 V. It supports a junction temperature up to 175°C with a power dissipation rating of 500 W.

Single FETs, MOSFETs Feature Summary

• Automotive-grade reliability certified under AEC-Q101 standards
• Low conduction losses via optimized Rds(on) performance
• Enhanced switching efficiency through reduced gate charge
• Robust thermal management capability for high-power density designs

Single FETs, MOSFETs Applications

• Automotive power distribution systems
• High-side load switch implementations
• Motor control circuits in electric vehicles
• DC-DC converter output stages

Single FETs, MOSFETs Procurement Notes

Verify the specific suffix F085 against the manufacturer's official datasheet to confirm package type and tape-and-reel specifications. Ensure compliance with RoHS directives and confirm AEC-Q101 qualification status for your target automotive application before finalizing procurement orders.

Single FETs, MOSFETs Selection Notes

Select this component when designing circuits requiring 150 V blocking capability and high continuous current handling. The low gate charge facilitates faster switching speeds, reducing dynamic losses in high-frequency converters. Verify that the thermal design accommodates the 500 W dissipation rating under worst-case operating conditions.

Single FETs, MOSFETs Part Context

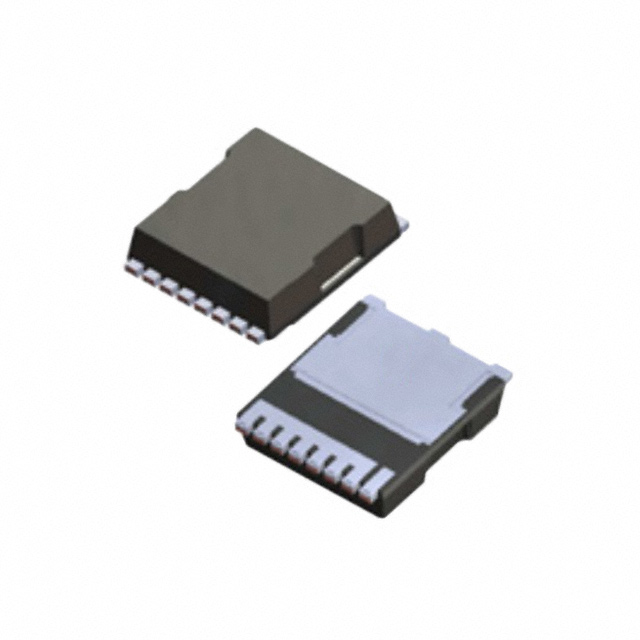

This part belongs to onsemi's PowerTrench family, utilizing trench gate technology to minimize on-resistance. The F085 suffix typically denotes a specific packaging configuration within the 8-HPSOF form factor. It is engineered to meet the stringent durability requirements of modern automotive electronics environments.

Single FETs, MOSFETs Replacement Considerations

Consult the official replacement matrix for direct equivalents. Verify pin compatibility and thermal characteristics if substituting with other 150 V N-channel MOSFETs from different manufacturers.
