FDMC8010A is listed in the FET, MOSFET Arrays range at ChipApex. The manufacturer field lists onsemi. Its product description is MOSFET. Review the specifications below when checking this part for your BOM.
FET, MOSFET Arrays specifications for FDMC8010A
- Description：MOSFET
- Series：*
- Mfr：onsemi
- Package：Bulk
- Technology：-
- Configuration：-
- FET Feature：-
- Drain to Source Voltage (Vdss)：-
- Current - Continuous Drain (Id) @ 25°C：-
- Rds On (Max) @ Id, Vgs：-
- Vgs(th) (Max) @ Id：-
- Gate Charge (Qg) (Max) @ Vgs：-
- Input Capacitance (Ciss) (Max) @ Vds：-
- Power - Max：-
- Operating Temperature：-
- Mounting Type：-
- Package / Case：-
- Supplier Device Package：-
- Grade：-
- Qualification：-
FET, MOSFET Arrays datasheet and documents for FDMC8010A
FET, MOSFET Arrays Overview

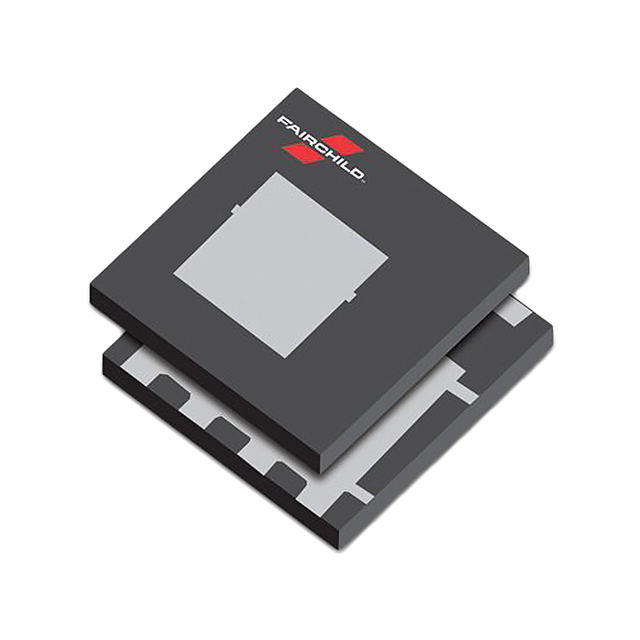

The FDMC8010A is a single N-Channel PowerTrench MOSFET manufactured by onsemi. It utilizes silicon technology and is housed in a Power-33-8 surface-mount package. The device features a drain-source breakdown voltage (Vds) of 30 V and a continuous drain current (Id) of 157 A. Its maximum gate-source voltage (Vgs) is rated at ±20 V, with a typical on-resistance (Rds(on)) of 1.28 mΩ. The component operates within a temperature range of -55°C to +150°C and has a power dissipation rating of 50 W.
FET, MOSFET Arrays Feature Summary
- PowerTrench technology for optimized low on-resistance performance
- Enhancement mode N-Channel configuration
- Designed for high-current switching applications
FET, MOSFET Arrays Applications
- TV Monitor circuits
- Power over Ethernet (PoE) systems
- Network infrastructure equipment
- Telecommunications hardware
FET, MOSFET Arrays Procurement Notes
Verify the specific suffix against official documentation to confirm exact electrical tolerances and packaging variations. Confirm RoHS compliance status through the manufacturer's latest environmental declarations before integration into regulated assemblies.
FET, MOSFET Arrays Selection Notes
Select this component for designs requiring high current handling in a compact SMD footprint. Ensure thermal management strategies account for the 50 W power dissipation limit under expected operating conditions and ambient temperatures.
FET, MOSFET Arrays Part Context
This part belongs to the FDMC8010 series from onsemi, which includes variants like the FDMC8010DC and FDMC8010ET30. These devices share similar core specifications but may differ in packaging formats or specific parameter limits as defined by their respective datasheets.
FET, MOSFET Arrays Replacement Considerations
Check the FDMC8010DC and FDMC8010ET30 for potential compatibility. Verify that pinouts, package dimensions, and electrical ratings match the original design requirements before substitution.
