FF07035J-7A is listed in the Single FETs, MOSFETs range at ChipApex. The manufacturer field lists fastSiC. Its product description is SICFET N-CH 750V 61A TO-263-7L. Review the specifications below when checking this part for your BOM.
Single FETs, MOSFETs specifications for FF07035J-7A
- Description：SICFET N-CH 750V 61A TO-263-7L
- Series：Falcon
- Mfr：fastSiC
- Package：Tape & Reel (TR)
- FET Type：N-Channel
- Technology：SiC (Silicon Carbide Junction Transistor)
- Drain to Source Voltage (Vdss)：750 V
- Current - Continuous Drain (Id) @ 25°C：61A (Tc)
- Drive Voltage (Max Rds On, Min Rds On)：18V
- Rds On (Max) @ Id, Vgs：48mOhm @ 22A, 18V
- Vgs(th) (Max) @ Id：2.5V @ 40mA
- Gate Charge (Qg) (Max) @ Vgs：112 nC @ 15 V
- Vgs (Max)：+18V, -8V
- Input Capacitance (Ciss) (Max) @ Vds：2818 pF @ 500 V
- FET Feature：-
- Power Dissipation (Max)：267W (Tc)
- Operating Temperature：-55°C ~ 175°C (TJ)
- Grade：-
- Qualification：-
- Mounting Type：-
- Supplier Device Package：TO-263-7L
- Package / Case：TO-263-8, D2PAK (7 Leads + Tab), TO-263CA
Single FETs, MOSFETs datasheet and documents for FF07035J-7A
Single FETs, MOSFETs Overview

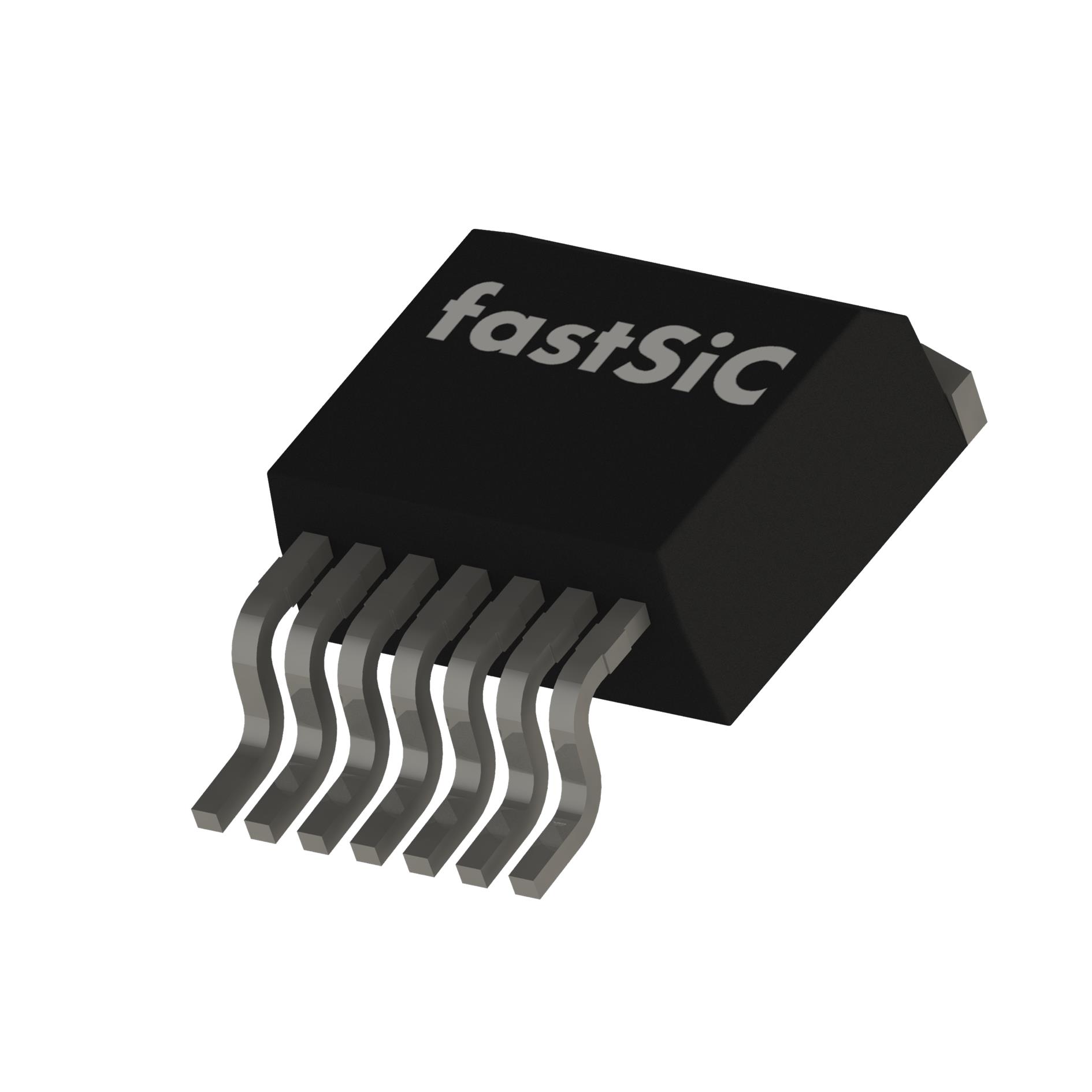

The FF07035J-7A is a Silicon Carbide MOSFET from the Falcon Series by fastSiC, housed in a TO-263-7L package. It features a drain-source voltage of 750V and an on-state resistance of 35mΩ at VGS=18V. The device supports a continuous drain current of 61A and a pulse current of 187A. Key electrical parameters include a total gate charge of 112nC and a power dissipation rating of 267W. Operating junction temperatures range from -55°C to 175°C.
Single FETs, MOSFETs Feature Summary
- Optimized RDS(on) with rapid switching behavior for high efficiency
- Clean Kelvin-source pin-out compatible with standard gate drivers
- High avalanche endurance capability for robust operation
- Designed for high power density applications
Single FETs, MOSFETs Applications
- Switching mode power supplies
- PFC and DC/DC converters
- EV charging stations
- UPS systems
- Power inverters and motor drivers
Single FETs, MOSFETs Procurement Notes
Verify the specific datasheet revision against the manufacturer's official documentation before integration. Confirm that the TO-263-7L package dimensions align with your PCB land pattern requirements. Ensure thermal management solutions accommodate the specified power dissipation limits under actual operating conditions.
Single FETs, MOSFETs Selection Notes
Select this component for designs requiring high-voltage SiC performance with low conduction losses. Evaluate the thermal impedance characteristics to ensure adequate heat sinking for the target application environment. Consider the gate drive compatibility and required voltage levels to optimize switching performance.
Single FETs, MOSFETs Part Context
This part belongs to the Falcon Series of Silicon Carbide MOSFETs manufactured by fastSiC Semiconductor Inc. The series focuses on high-power density solutions utilizing advanced SiC technology. The TO-263-7L variant provides a surface-mount option suitable for automated assembly processes.
Single FETs, MOSFETs Replacement Considerations
Consult the manufacturer directly for verified equivalent parts or direct replacements within the Falcon Series portfolio.
