Product Detailed Parameters
- Description：IGBT MODULE VCES 1200V 150A
- Series：C
- Mfr：Infineon Technologies
- Package：Bulk,Tray
- IGBT Type：Trench Field Stop
- Configuration：Half Bridge Inverter
- Vce(on) (Max) @ Vge, Ic：2.15V @ 15V, 150A
- Input：Standard
- NTC Thermistor：No
- Operating Temperature：-40°C ~ 125°C (TJ)
- Mounting Type：Chassis Mount
- Package / Case：Module
- Supplier Device Package：Module
- Voltage - Collector Emitter Breakdown (Max)：1200 V
- Current - Collector (Ic) (Max)：225 A
- Power - Max：780 W
- Current - Collector Cutoff (Max)：5 mA
- Input Capacitance (Cies) @ Vce：11 nF @ 25 V
Download product information
Overview

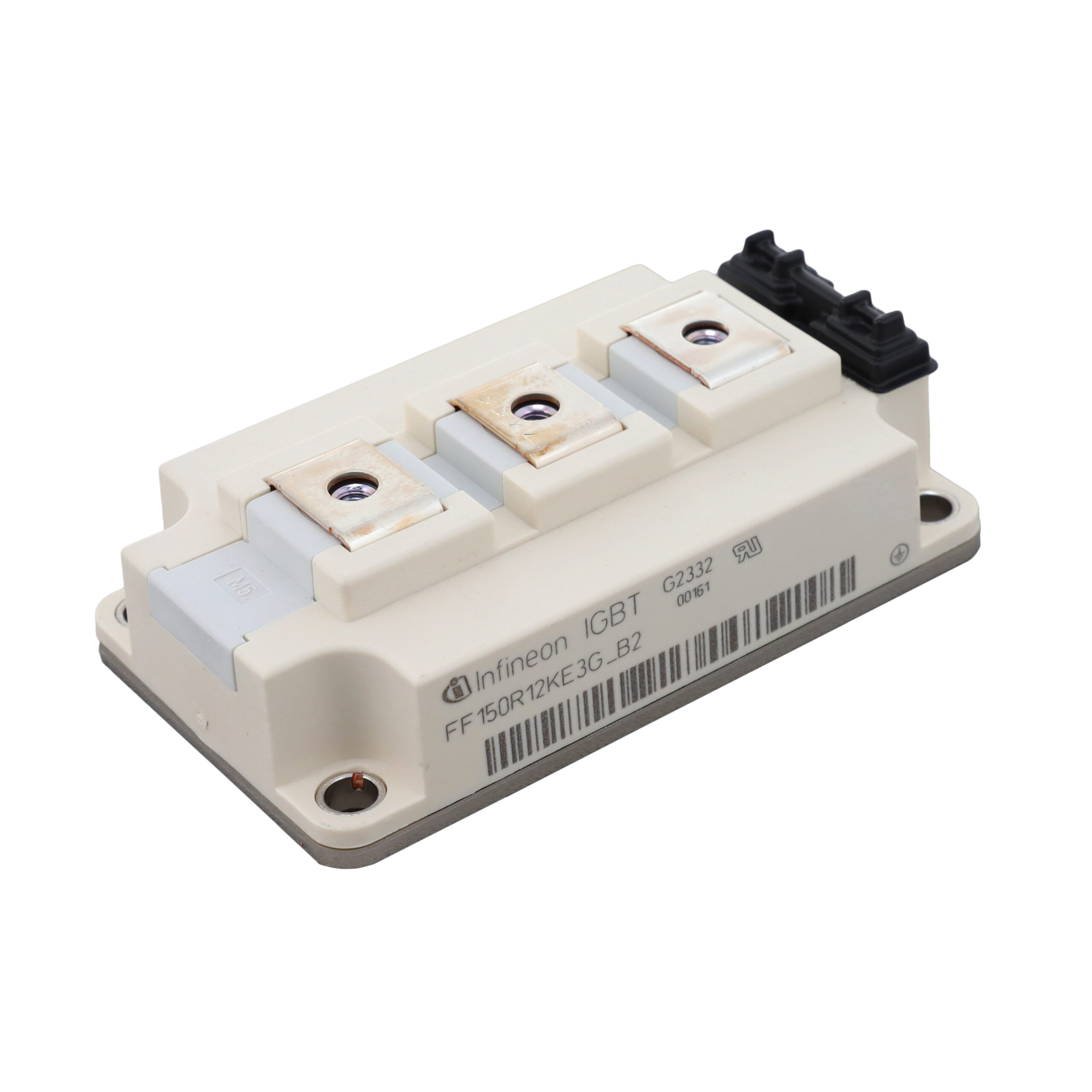

The FF150R12KE3GB2HOSA1 is a dual IGBT module from Infineon Technologies, utilizing Trench/Fieldstop IGBT3 technology and an Emitter Controlled High Efficiency diode. It features a collector-emitter voltage (VCES) of 1200 V and a continuous DC collector current (IC nom) of 150 A at TC = 80°C. The module operates within a junction temperature range of -40°C to 125°C. Key electrical parameters include a typical collector-emitter saturation voltage (VCE sat) of 1.70 V at Tvj = 25°C and a forward voltage (VF) of 1.65 V for the integrated diode. Total power dissipation is rated at 780 W.
Feature Summary
- Integrates Trench/Fieldstop IGBT3 technology with an Emitter Controlled High Efficiency diode for optimized switching performance.
- Features a compact 62mm C-series module design suitable for inverter applications.
- Includes internal gate resistor and low stray inductance for reliable operation.
Applications
- Inverter circuits
- Industrial motor drives
- Uninterruptible power supplies
Procurement Notes
Verify the exact ordering suffix B2HOSA1 against official Infineon documentation to confirm specific manufacturing or compliance attributes. Ensure compatibility with standard EconoPACK mounting requirements and thermal interface materials during integration.
Selection Notes
Select this component for high-power inverter designs requiring robust short-circuit withstand capability and efficient thermal management. Evaluate the 1200V rating and 150A current capacity against system load requirements and operating temperature constraints.
Part Context
This part belongs to the Infineon EconoPACK family, specifically designed for industrial power conversion. It represents the Trenchstop IGBT3 generation, balancing switching losses and conduction drops for medium-frequency applications.
Replacement Considerations
Consult official Infineon cross-reference guides for verified substitutes. Consider modules with similar voltage ratings and packaging dimensions if direct replacement is required.
FAQ
What is the maximum repetitive peak collector current?
The maximum repetitive peak collector current (ICRM) is 300 A for a pulse duration of 1 ms.
Does the module include an internal gate resistor?
Yes, the module includes an internal gate resistor (RGint) with a typical value of 5.0 Ω.
What is the isolation test voltage?
The isolation test voltage (VISOL) is 2.5 kV RMS at 50 Hz for 1 minute.
