Product Detailed Parameters
- Description：PP IHM I XHP 1 7KV AG-PRIME3+-7
- Series：PrimePACK™3
- Mfr：Infineon Technologies
- Package：Tray
- IGBT Type：-
- Configuration：2 Independent
- Vce(on) (Max) @ Vge, Ic：-
- Input：Standard
- NTC Thermistor：No
- Operating Temperature：-
- Mounting Type：-
- Package / Case：-
- Supplier Device Package：-
- Voltage - Collector Emitter Breakdown (Max)：750 V
- Current - Collector (Ic) (Max)：2400 A
- Power - Max：-
- Current - Collector Cutoff (Max)：-
- Input Capacitance (Cies) @ Vce：-
Download product information
Overview

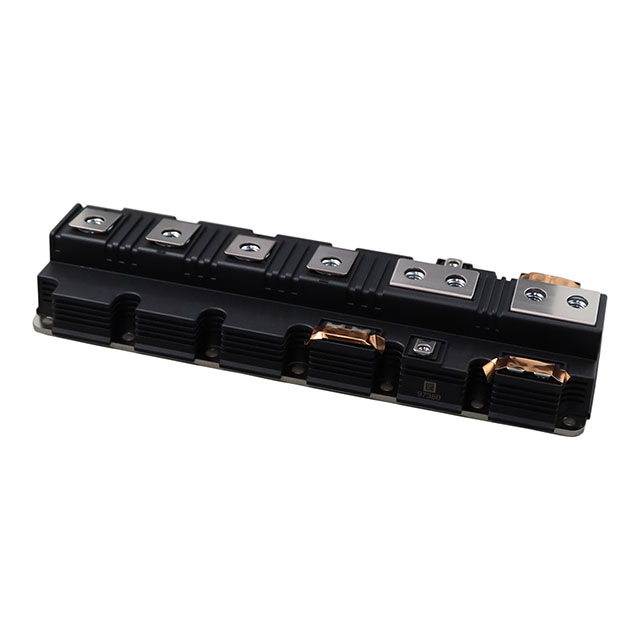

The FF2400RB12IP7BPSA1 is a PrimePACK™3+ B-series IGBT module utilizing TRENCHSTOP™ IGBT7 technology. It features a half-bridge configuration with a 1200 V collector-emitter voltage rating and a nominal continuous DC collector current of 2400 A at 150°C junction temperature. The device incorporates an emitter-controlled diode with a repetitive peak forward current of 4800 A. Electrical characteristics include a typical saturation voltage of 1.27 V and a forward voltage of 1.70 V at 25°C. The module integrates an NTC thermistor with a rated resistance of 5 kΩ at 25°C for thermal monitoring.
Feature Summary
- TRENCHSTOP™ IGBT7 technology providing low on-state voltage and high current density
- Emitter controlled 7 diode optimized for fast switching and low reverse recovery energy
- Integrated NTC thermistor for precise junction temperature monitoring
- High creepage and clearance distances ensuring robust insulation coordination
Applications
- Three-level inverter applications
- Solar power inverters
- Energy storage systems
Procurement Notes
Verify the specific ordering suffix 'BPSA1' against official Infineon documentation to confirm exact packaging, reel specifications, or regional compliance variations. Ensure that the procurement channel provides valid traceability data matching the module label code format described in the datasheet. Confirm availability of application notes regarding mounting torque and thermal interface material requirements prior to finalizing orders.
Selection Notes
Select this component for high-power industrial applications requiring 1200 V blocking capability and 2400 A continuous current handling. The module supports overload operation up to 175°C junction temperature. Verify compatibility with three-level circuit topologies and ensure the gate drive circuitry matches the specified internal gate resistor and charge requirements for optimal switching performance.
Part Context
This part belongs to the Infineon PrimePACK™3+ B-series family designed for high power density. It utilizes silicon-based TRENCHSTOP™ IGBT7 technology. The module is qualified for industrial applications according to IEC standards. It serves as a critical power switching element in medium to high voltage conversion systems.
Replacement Considerations
Consult official Infineon cross-reference lists for verified substitutes. Direct replacements must match the 1200 V rating, 2400 A current capacity, and PrimePACK™3+ mechanical footprint. Verify electrical parameters such as VCE(sat) and switching times to ensure system compatibility.
