FF2400RB12IP7PBPSA1

Overview

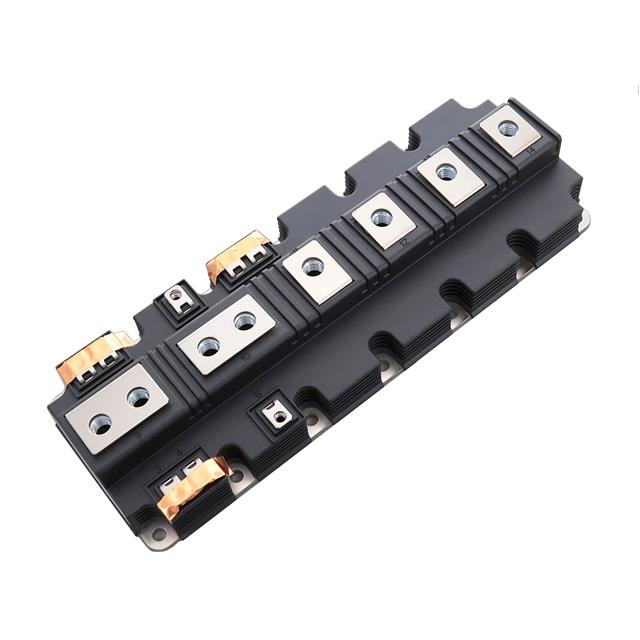

The FF2400RB12IP7PBPSA1 is a PrimePACK™3+ B-series IGBT module utilizing TRENCHSTOP™ IGBT7 technology. It features a half-bridge configuration with emitter-controlled diodes and an integrated NTC thermistor. Key electrical parameters include a collector-emitter voltage (Vces) of 1200 V, a nominal continuous DC collector current (IcDC) of 2400 A at Tvj=150°C, and a repetitive peak collector current (Icrm) of 4800 A. The typical saturation voltage (Vce,sat) is 1.27 V at 25°C. Thermal resistance from junction to heatsink is 27.6 K/kW for the IGBT and 46.4 K/kW for the diode. The module includes pre-applied thermal interface material.

Feature Summary

• Incorporates TRENCHSTOP™ IGBT7 technology combined with emitter-controlled diodes for optimized switching performance.
• Features a low inductive design with minimal stray inductance to reduce switching losses and voltage overshoot.
• Includes pre-applied thermal interface material to simplify assembly and ensure consistent thermal contact.
• Provides high creepage and clearance distances with a comparative tracking index exceeding 400.

Applications

• Three-level inverter applications
• Solar power inverters
• Energy storage systems

Procurement Notes

Verify the specific ordering suffix against official Infineon documentation to confirm the inclusion of the pre-applied thermal interface material and NTC thermistor. Ensure that the procurement channel provides valid traceability documents. Confirm compliance with RoHS directives and industrial qualification standards such as IEC 60747 prior to finalizing orders.

Selection Notes

Select this module for high-power density designs requiring robust overload capability up to 175°C. Consider the thermal resistance values when designing the heatsinking system. Verify gate drive requirements against the internal gate resistor and charge characteristics. Ensure the application circuit can handle the repetitive peak current limits defined in the datasheet.

Part Context

This component belongs to the PrimePACK™3+ B-series family from Infineon Technologies. It represents an evolution in high-current IGBT modules, leveraging advanced semiconductor structures to achieve higher efficiency. The series is designed for demanding industrial environments where reliability and compact form factors are critical.

Replacement Considerations

Consult official Infineon substitution guides for verified alternatives. Cross-referencing requires matching voltage ratings, current capabilities, package dimensions, and pin configurations. Generic replacements may not support the same thermal or electrical performance metrics.

FAQ

What is the maximum operating junction temperature?

The standard operating junction temperature is 150°C, with overload operation permitted up to 175°C.

Does the module include an NTC thermistor?

Yes, the module integrates an NTC thermistor with a rated resistance of 5 kΩ at 25°C for temperature monitoring.

What is the stray inductance value?

The module stray inductance (LsCE) is specified as 5 nH.
