Product Detailed Parameters
- Description：MEDIUM POWER ECONO AG-ECONOD-411
- Series：EconoDUAL™ 3
- Mfr：Infineon Technologies
- Package：Tray
- IGBT Type：Trench Field Stop
- Configuration：2 Independent
- Vce(on) (Max) @ Vge, Ic：2.1V @ 15V, 300A
- Input：Standard
- NTC Thermistor：Yes
- Operating Temperature：-40°C ~ 150°C (TJ)
- Mounting Type：Chassis Mount
- Package / Case：Module
- Supplier Device Package：AG-ECONOD
- Voltage - Collector Emitter Breakdown (Max)：1200 V
- Current - Collector (Ic) (Max)：450 A
- Power - Max：1600 W
- Current - Collector Cutoff (Max)：3 mA
- Input Capacitance (Cies) @ Vce：18.5 nF @ 25 V
Download product information
Overview

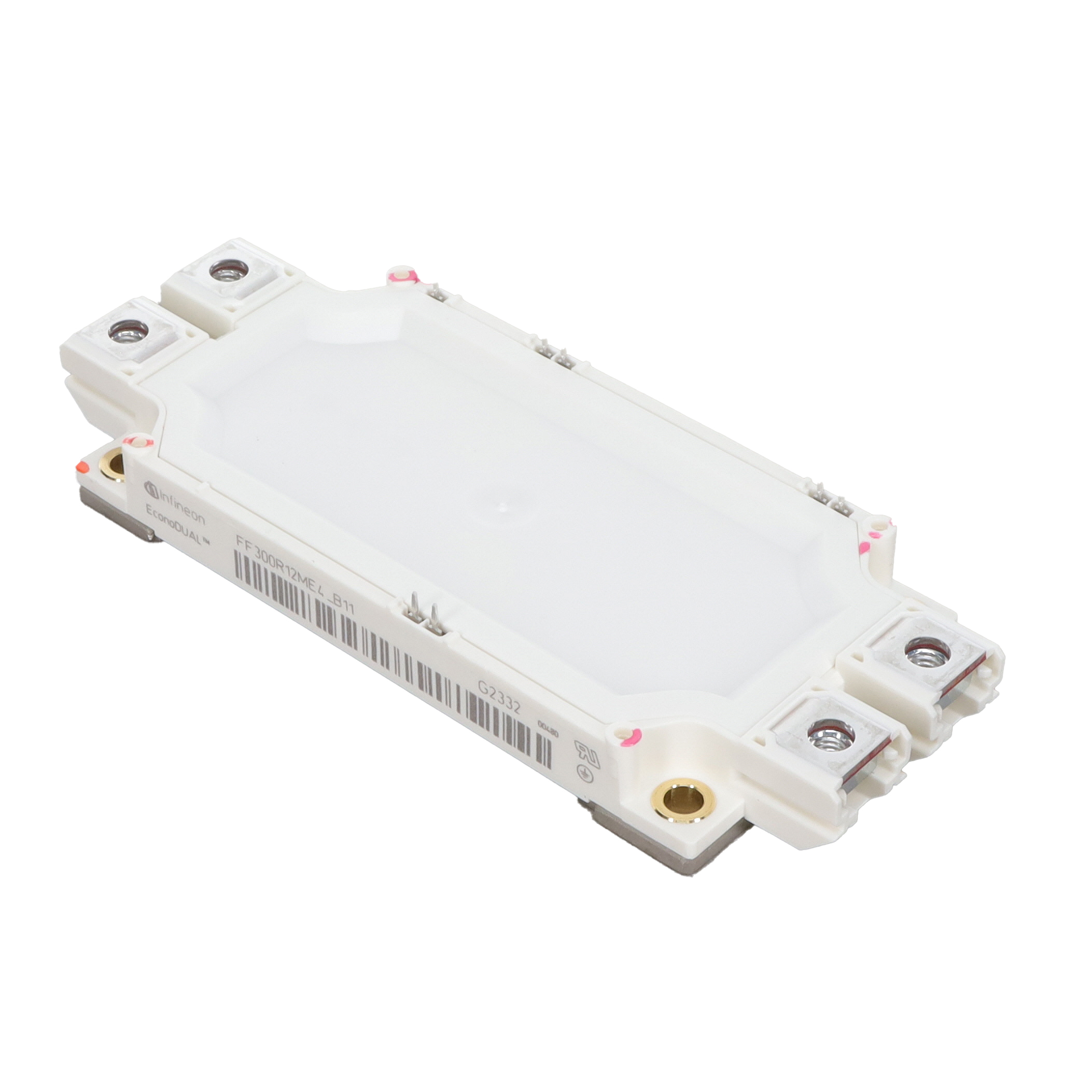

The FF300R12ME4B11BPSA2 is a half-bridge IGBT module from Infineon's EconoDUAL™3 series, utilizing Trench/Fieldstop IGBT4 technology and an emitter-controlled HE diode. It features PressFIT terminals and an integrated NTC thermistor. Key electrical parameters include a collector-emitter voltage (VCES) of 1200 V, a continuous DC collector current (ICDC) of 300 A at TC=100°C, and a repetitive peak collector current (ICRM) of 600 A. The typical saturation voltage (VCEsat) is 1.75 V at IC=300 A and Tvj=25°C. The module supports a maximum operating junction temperature (Tvj op) of 150°C.
Feature Summary
- Integrates Trench/Fieldstop IGBT4 technology with an emitter-controlled high-efficiency diode for optimized switching performance.
- Features PressFIT terminal connections to ensure reliable contact and simplify assembly processes.
- Includes an integrated NTC thermistor for precise thermal monitoring within the module.
- Designed with a standard housing suitable for industrial applications requiring robust insulation coordination.
Applications
- Motor drives
- Servo drives
- UPS systems
- Wind turbines
Procurement Notes
Verify the specific ordering suffix B11BPSA2 against official Infineon documentation to confirm terminal type and packaging details. Ensure compatibility with recommended gate drivers listed in the manufacturer's guide. Confirm that the application environment meets the industrial qualification standards defined in IEC 60747, 60749, and 60068.
Selection Notes
Select this module for applications requiring 1200 V blocking capability and up to 300 A continuous current. Consider the 150°C operating temperature limit when designing thermal management solutions. Verify that the PCB hole pattern matches the EconoDUAL™3 footprint specifications. Ensure the drive circuit can handle the specified gate charge and internal resistance values.
Part Context
This component belongs to the Infineon EconoDUAL™3 family, which utilizes Trench/Fieldstop IGBT4 technology. The base part number FF300R12ME4_B11 identifies the core electrical characteristics and terminal style. The suffix B11BPSA2 denotes specific manufacturing or packaging variations associated with this product code.
Replacement Considerations
Direct replacements must match the 1200 V rating, 300 A current capacity, and EconoDUAL™3 form factor. Verify that any substitute maintains compatible PressFIT terminal specifications and thermal resistance values. Cross-reference datasheets for switching energy losses and gate charge requirements to ensure circuit stability.
FAQ
What is the maximum operating junction temperature for this module?
The maximum operating junction temperature (Tvj op) is 150°C.
Does this module include thermal monitoring capabilities?
Yes, it includes an integrated NTC thermistor with a rated resistance of 5 kΩ at 25°C.
What is the typical forward voltage of the integrated diode?
The typical forward voltage (VF) is 1.65 V at IF=300 A and Tvj=25°C.
