Product Detailed Parameters
- Description：MEDIUM POWER ECONO, AG-ECONOD-74
- Series：EconoDUAL™ 3
- Mfr：Infineon Technologies
- Package：Tray
- IGBT Type：Trench Field Stop
- Configuration：2 Independent
- Vce(on) (Max) @ Vge, Ic：1.75V @ 15V, 300A
- Input：Standard
- NTC Thermistor：Yes
- Operating Temperature：-40°C ~ 175°C (TJ)
- Mounting Type：Chassis Mount
- Package / Case：Module
- Supplier Device Package：AG-ECONOD
- Voltage - Collector Emitter Breakdown (Max)：1200 V
- Current - Collector (Ic) (Max)：300 A
- Power - Max：-
- Current - Collector Cutoff (Max)：20 µA
- Input Capacitance (Cies) @ Vce：46 nF @ 25 V
Download product information
Overview

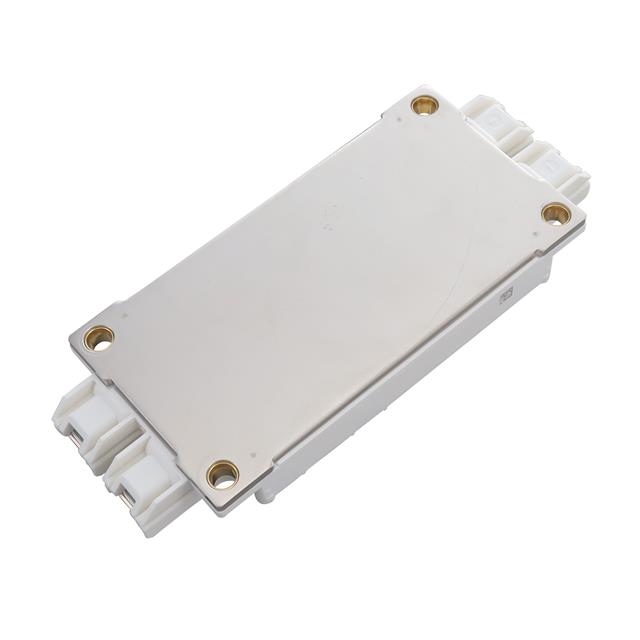

The FF300R12ME7B11BPSA1 is a dual IGBT module from Infineon Technologies, utilizing TRENCHSTOP™ IGBT7 technology and emitter-controlled diodes within an EconoDUAL™3 housing. It features PressFIT contact technology and an integrated NTC thermistor for thermal monitoring. The device supports a collector-emitter voltage of 1200 V with a nominal continuous DC collector current of 300 A at a case temperature of 95 °C. Repetitive peak currents reach 600 A. The module operates over a junction temperature range of -40 °C to 175 °C.
Feature Summary
- TRENCHSTOP™ IGBT7 technology providing high power density and optimized switching performance
- PressFIT contact technology ensuring reliable mechanical connection without soldering
- Integrated NTC thermistor for precise internal temperature monitoring
- Isolated copper base plate with basic insulation class
Applications
- Commercial agriculture vehicles
- High-power converters
- Motor drives
- Servo drives
- UPS systems
Procurement Notes
Verify the complete part number including the BPSA1 suffix against official documentation to confirm specific ordering details. Confirm that the intended application environment complies with industrial qualification standards such as IEC 60747 and IEC 60068. Ensure mounting torque specifications are strictly followed during installation to maintain electrical isolation and thermal performance integrity.
Selection Notes
Select this component for designs requiring high current handling in a compact form factor. Verify gate driver compatibility using the manufacturer's gate driver finder tool. Check thermal resistance values against the system heat sink design to ensure junction temperatures remain within the specified operational limits under maximum load conditions.
Part Context
This module belongs to the EconoDUAL™3 family, which is designed for successful inverter layouts offering flexibility and reliability. It utilizes the latest micro-patterned trench technology to reduce losses compared to previous generations. The product is targeted at industrial applications rather than automotive, as it lacks AEC Q100 or AEC Q101 qualification.
Replacement Considerations
Consult official replacement lists for direct substitutes. Cross-referencing may involve modules with similar voltage ratings and current capacities within the same packaging standard, provided electrical characteristics and pin configurations match the original design requirements.
FAQ
Is this module qualified for automotive applications?
No, the product is not qualified according to AEC Q100 or AEC Q101 documents and is intended for industrial applications.
What is the maximum operating junction temperature?
The maximum operating junction temperature is 175 °C, although operation above 150 °C is permitted only under overload conditions as specified in application notes.
How is the module connected to the circuit board?
The module uses PressFIT contact technology for terminal connections, eliminating the need for soldering the main power terminals.
