Product Detailed Parameters
- Description：FF300R12W2T7EB11BPSA1
- Series：-
- Mfr：Infineon Technologies
- Package：Tray
- IGBT Type：-
- Configuration：-
- Vce(on) (Max) @ Vge, Ic：-
- Input：-
- NTC Thermistor：-
- Operating Temperature：-
- Mounting Type：-
- Package / Case：-
- Supplier Device Package：-
- Voltage - Collector Emitter Breakdown (Max)：-
- Current - Collector (Ic) (Max)：-
- Power - Max：-
- Current - Collector Cutoff (Max)：-
- Input Capacitance (Cies) @ Vce：-
Download product information
Overview

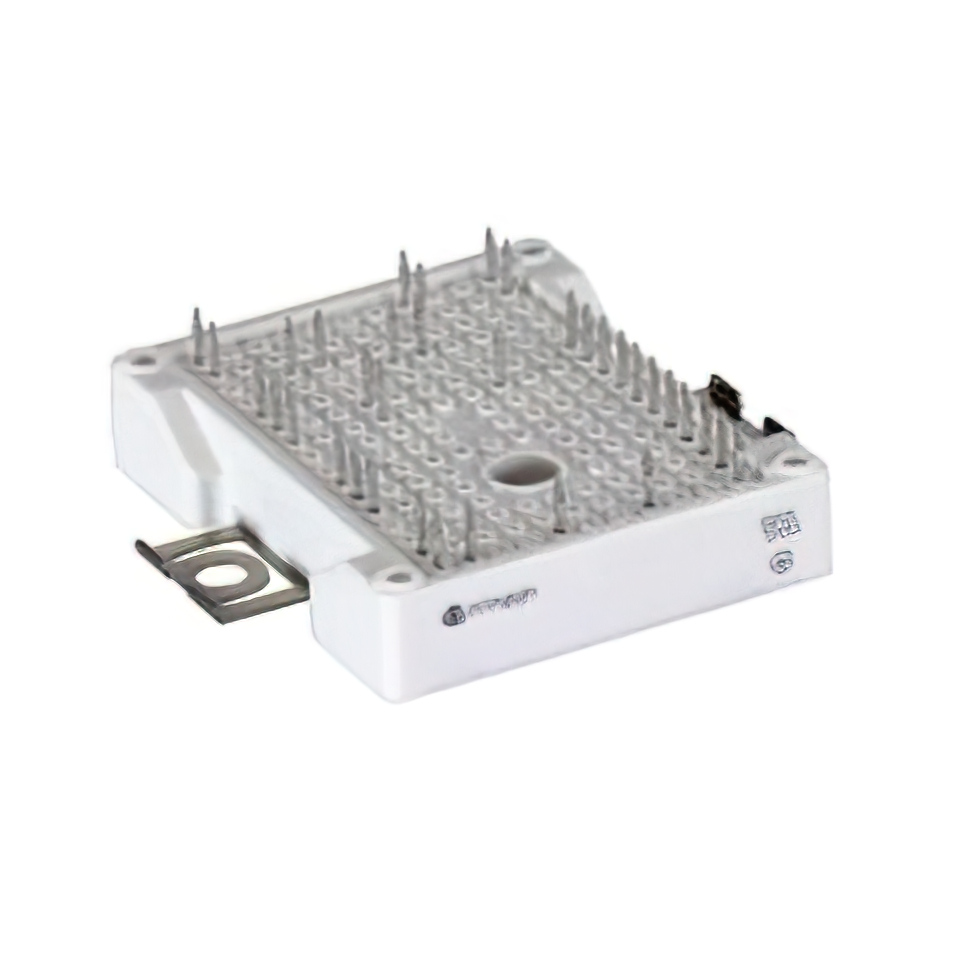

The FF300R12W2T7EB11BPSA1 is a dual IGBT module from Infineon Technologies, belonging to the EconoDUAL family. It features a maximum collector-emitter voltage (VCEO) of 1.2 kV and a continuous collector current of 300 A at 25°C. The typical collector-emitter saturation voltage is 1.5 V. The device operates within a temperature range of -40°C to +175°C and utilizes silicon technology. It is supplied in a tray package with a factory pack quantity of 10 units.
Feature Summary
- Dual configuration for phase leg applications
- EconoDUAL packaging for compact integration
- High thermal stability up to 175°C junction temperature
Applications
- Industrial motor drives
- Uninterruptible power supplies (UPS)
- Induction heating systems
Procurement Notes
Verify the exact part number against official Infineon documentation to ensure compatibility with specific design requirements. Confirm that the ordering suffix matches the intended variant, as suffixes may indicate differences in internal components or testing criteria without altering the primary electrical function. Always reference the latest datasheet for assembly and handling guidelines.
Selection Notes
Select this module for applications requiring high current capacity and robust voltage ratings. Ensure the cooling solution supports the thermal dissipation needs of a 300 A device. Verify that the gate drive circuitry aligns with the specified saturation voltage and leakage current parameters. Consider the physical dimensions of the EconoDUAL package for PCB layout constraints.
Part Context
This component is part of Infineon's Trenchstop IGBT7 technology line, designed for efficient power conversion. It shares the EconoDUAL form factor with other modules in the series, facilitating standardized mechanical integration. The model represents a high-power discrete solution distinct from integrated power modules or six-pack configurations.
Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided source material. Cross-referencing should be performed using official Infineon selection guides to identify compatible alternatives based on voltage, current, and package specifications.
