Product Detailed Parameters
- Description：MEDIUM POWER 62MM
- Series：-
- Mfr：Infineon Technologies
- Package：Tray
- IGBT Type：-
- Configuration：-
- Vce(on) (Max) @ Vge, Ic：-
- Input：-
- NTC Thermistor：-
- Operating Temperature：-
- Mounting Type：-
- Package / Case：-
- Supplier Device Package：-
- Voltage - Collector Emitter Breakdown (Max)：-
- Current - Collector (Ic) (Max)：-
- Power - Max：-
- Current - Collector Cutoff (Max)：-
- Input Capacitance (Cies) @ Vce：-
Download product information
Overview

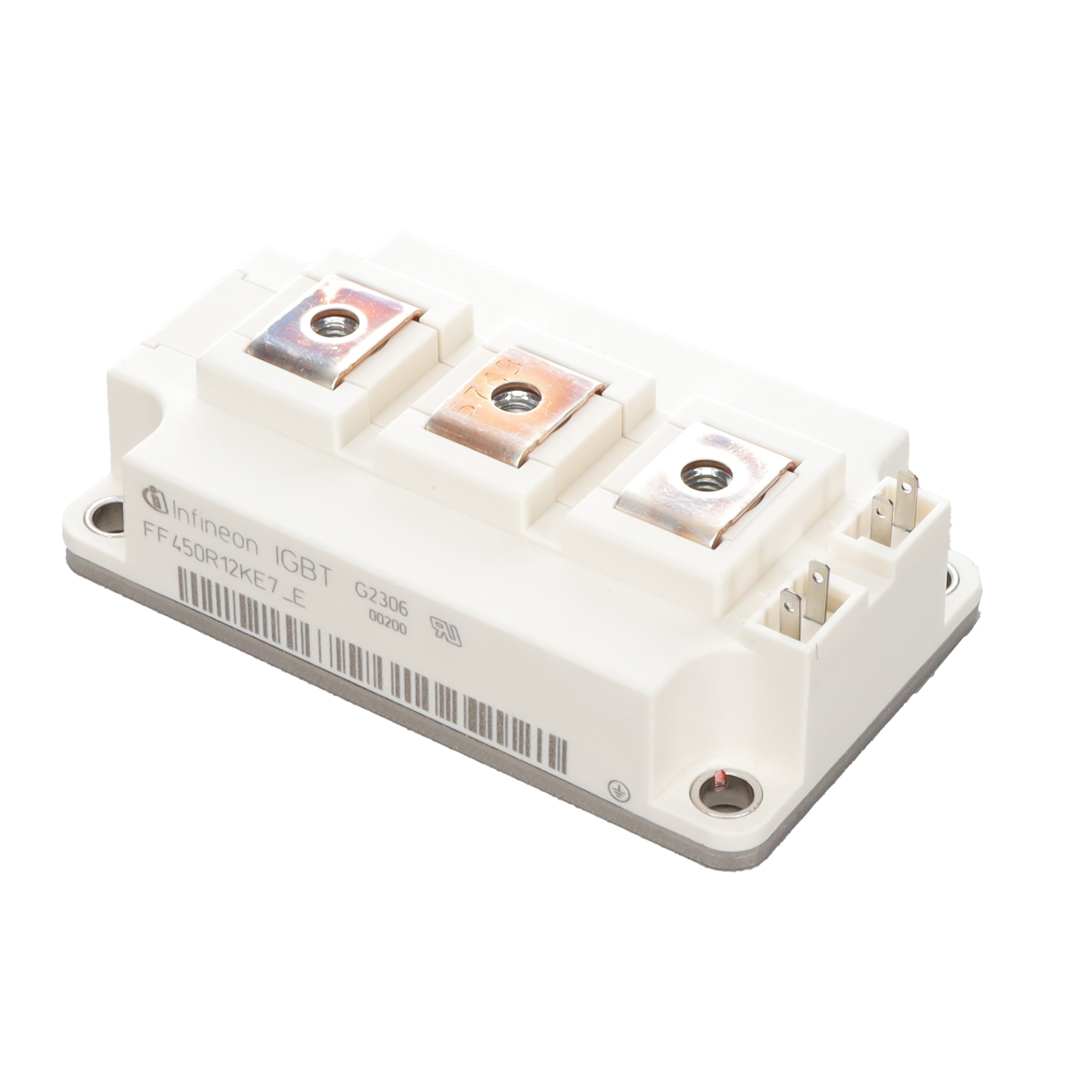

The FF450R12KE7EHPSA1 is a dual IGBT module from Infineon's 62 mm C-Series, utilizing TRENCHSTOP™ IGBT7 technology. It features a collector-emitter voltage of 1200 V and a continuous DC collector current of 450 A at 175 °C junction temperature. The typical saturation voltage is 1.50 V at 25 °C, rising to 1.75 V at 175 °C. The integrated emitter-controlled diode exhibits a forward voltage of 1.80 V at 25 °C. Electrical isolation includes a 4 kV RMS test voltage with an isolated copper base plate. The package dimensions are 106.4 mm x 61.4 mm x 30.9 mm, weighing 340 g.
Feature Summary
- TRENCHSTOP™ IGBT7 technology providing positive temperature coefficient for safe parallel operation
- High power density within the standard 62 mm C-Series housing
- Isolated base plate design ensuring basic insulation class compliance
- Emitter-controlled diode optimized for low reverse recovery energy
Applications
- Servo drives
- Solar applications
- UPS systems
- Motor drives
- Three-level converters
Procurement Notes
Verify component authenticity by cross-referencing the Data Matrix barcode on the module label against official Infineon records. Confirm that the specific suffix EHPSA1 matches the required mechanical mounting style and terminal configuration. Ensure the ordering code aligns with the final datasheet revision 1.00 specifications before placing orders.
Selection Notes
Select this module for high-power industrial applications requiring robust short-circuit withstand capability up to 1700 A. Evaluate thermal management requirements based on the specified RthJC values. Verify compatibility with recommended gate drivers listed in the Infineon GDFinder tool to ensure optimal switching performance and electromagnetic interference control.
Part Context
This component belongs to the 62 mm C-Series family, designed for medium to high-power industrial applications. It represents the transition to IGBT7 technology, offering improved switching characteristics compared to previous generations while maintaining the standardized footprint for easy integration into existing system designs.
Replacement Considerations
Direct replacements include other variants within the 62 mm C-Series such as FF450R12KE7P or FD450R12KE7HPSA1, provided pinout and electrical ratings match. Always verify mechanical mounting torque specifications and thermal interface material requirements when substituting modules.
