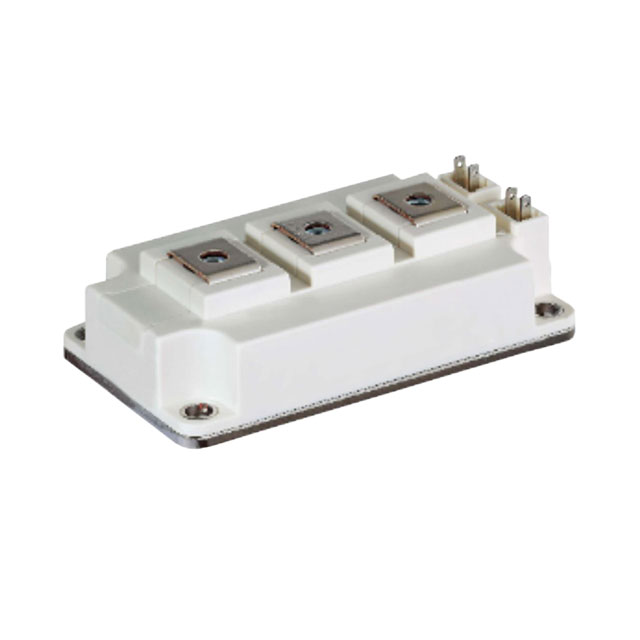

FF450R12KE7HPSA1

$110.06

Description：MEDIUM POWER 62MM
Series：-

SKU:d0e015a80df1 Category: IGBT Modules Brand: Infineon Technologies

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：MEDIUM POWER 62MM
Series：-
Mfr：Infineon Technologies
Package：Tray
IGBT Type：-
Configuration：-
Vce(on) (Max) @ Vge, Ic：-
Input：-
NTC Thermistor：-
Operating Temperature：-
Mounting Type：-
Package / Case：-
Supplier Device Package：-
Voltage - Collector Emitter Breakdown (Max)：-
Current - Collector (Ic) (Max)：-
Power - Max：-
Current - Collector Cutoff (Max)：-
Input Capacitance (Cies) @ Vce：-

Download product information

FF450R12KE7HPSA1

Overview

The FF450R12KE7HPSA1 is a 62 mm C-Series power module integrating TRENCHSTOP™ IGBT7 and an emitter-controlled 7 diode. It features a collector-emitter voltage (Vces) of 1200 V, a nominal continuous DC collector current (Ic nom) of 450 A at 100 °C case temperature, and a repetitive peak collector current (Icrm) of 900 A. The module utilizes an isolated copper base plate with aluminum oxide internal insulation, providing 4 kV AC isolation for one minute. Key electrical characteristics include a typical saturation voltage of 1.50 V at 25 °C and a gate charge of 7.41 µC. Thermal resistance from junction to case is 0.0809 K/W for the IGBT and 0.134 K/W for the diode.

Feature Summary

Incorporates TRENCHSTOP™ IGBT7 technology with positive temperature coefficient for saturation voltage.
Features an emitter-controlled 7 diode structure integrated within the same package.
Provides high creepage and clearance distances with an isolated base plate design.
Includes comparative tracking index greater than 400 for enhanced insulation reliability.

Applications

Servo drives
Solar applications
UPS systems
Motor drives
High-power converters

Procurement Notes

Verify the specific ordering suffix HPSA1 against official Infineon documentation to confirm packaging and reel specifications. Ensure compatibility with recommended gate drivers listed in the manufacturer's GDFinder tool. Confirm that mechanical mounting torque requirements align with standard application notes for the 62 mm C-Series housing to maintain thermal interface integrity.

Selection Notes

Select this component for designs requiring 1200 V blocking capability and high current density in a compact form factor. Evaluate thermal management strategies based on the specified junction-to-case thermal resistance values under expected operating temperatures. Consider the positive temperature coefficient of the IGBT for parallel operation stability without active current sharing circuits.

Part Context

This part belongs to Infineon's 62 mm C-Series module family, designed for high-power industrial applications. It represents the integration of advanced IGBT7 generation technology with optimized diode characteristics. The series emphasizes high power density and robust insulation properties suitable for demanding environments.

Replacement Considerations

Consult official Infineon cross-reference guides for verified substitutes. Ensure any replacement maintains identical pinout configuration, thermal resistance profiles, and voltage/current ratings to preserve system performance and safety margins.

FAQ

What is the maximum operating junction temperature for the FF450R12KE7?

The maximum operating junction temperature is 175 °C. Operation above 150 °C is permitted only under overload conditions as specified in application note AN 2018-14.

Does the module have an isolated base plate?

Yes, the module features an isolated base plate made of copper with aluminum oxide internal insulation, providing basic insulation according to class 1 standards.
