Product Detailed Parameters
- Description：MEDIUM POWER ECONO AG-ECONOD-411
- Series：EconoDUAL™ 3
- Mfr：Infineon Technologies
- Package：Tray
- IGBT Type：Trench Field Stop
- Configuration：2 Independent
- Vce(on) (Max) @ Vge, Ic：2.1V @ 15V, 450A
- Input：Standard
- NTC Thermistor：Yes
- Operating Temperature：-40°C ~ 150°C (TJ)
- Mounting Type：Chassis Mount
- Package / Case：Module
- Supplier Device Package：AG-ECONOD
- Voltage - Collector Emitter Breakdown (Max)：1200 V
- Current - Collector (Ic) (Max)：675 A
- Power - Max：2250 W
- Current - Collector Cutoff (Max)：3 mA
- Input Capacitance (Cies) @ Vce：28 nF @ 25 V
Download product information
Overview

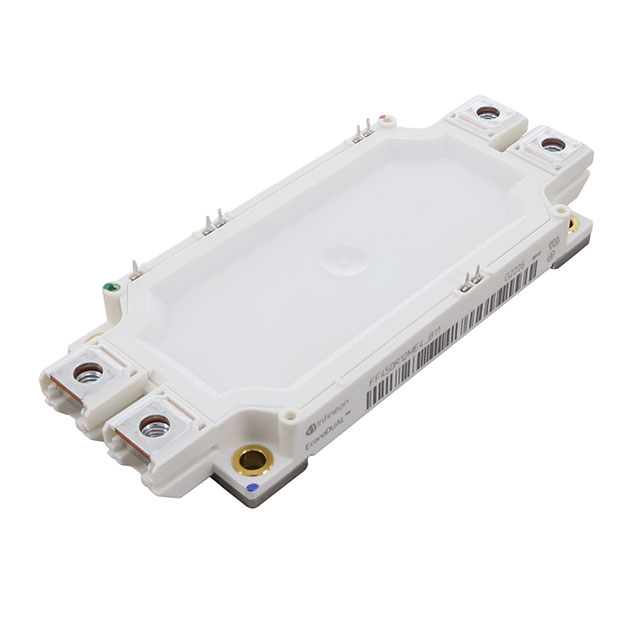

The FF450R12ME4B11BPSA2 is a half-bridge IGBT module from Infineon Technologies, utilizing Trench/Fieldstop IGBT4 technology and an emitter-controlled HE diode. It features PressFIT contact technology and an integrated NTC thermistor. The collector-emitter voltage (VCES) is rated at 1200 V. The continuous DC collector current (ICDC) is 450 A at a case temperature of 100 °C, with a repetitive peak collector current (ICRM) of 900 A. The typical collector-emitter saturation voltage (VCEsat) is 1.75 V at 25 °C. The maximum operating junction temperature (Tvj op) is 150 °C.
Feature Summary
- Incorporates Trench/Fieldstop IGBT4 technology for optimized switching performance.
- Utilizes PressFIT contact technology to eliminate wire bonding and improve mechanical reliability.
- Includes an integrated NTC thermistor for precise thermal monitoring.
- Features an emitter-controlled HE diode for low reverse recovery losses.
Applications
- Motor drives
- Servo drives
- UPS systems
- Wind turbines
Procurement Notes
Verify the specific ordering suffix B11 against official documentation to confirm the exact configuration and packaging details. Ensure that the procurement channel provides valid traceability and authenticity certificates. Confirm compliance with relevant industrial qualification standards such as IEC 60747, 60749, and 60068 before finalizing orders.
Selection Notes
Select this component for applications requiring high current density and robust mechanical connections via PressFIT terminals. Consider the 1200 V rating and 450 A continuous current capability when designing power stages. Evaluate the thermal resistance values and operating temperature limits to ensure adequate heatsinking and cooling solutions are implemented for reliable operation.
Part Context
This module belongs to the EconoDUAL™3 series, designed for compact and efficient power conversion. It integrates both the IGBT switch and the freewheeling diode in a single package. The PressFIT technology allows for direct mounting onto PCBs or busbars without soldering, reducing assembly complexity and improving electrical performance through lower stray inductance.
Replacement Considerations
Direct substitutes within the same family include the FF450R12ME4P_B11. Verify pin compatibility and thermal characteristics when considering alternative part numbers.
FAQ
What is the maximum operating junction temperature?
The maximum operating junction temperature (Tvj op) is 150 °C.
Does the module include a thermistor?
Yes, the module includes an integrated NTC thermistor for temperature monitoring.
What type of terminal connection does it use?
It uses PressFIT contact technology for terminal connections.
