Product Detailed Parameters
- Description：ECONODUAL 3 WITH TRENCHSTOP IGBT
- Series：EconoDUAL™ 3
- Mfr：Infineon Technologies
- Package：Tray
- IGBT Type：Trench Field Stop
- Configuration：2 Independent
- Vce(on) (Max) @ Vge, Ic：1.75V @ 15V, 450A
- Input：Standard
- NTC Thermistor：Yes
- Operating Temperature：-40°C ~ 175°C (TJ)
- Mounting Type：Chassis Mount
- Package / Case：Module
- Supplier Device Package：AG-ECONOD
- Voltage - Collector Emitter Breakdown (Max)：1200 V
- Current - Collector (Ic) (Max)：450 A
- Power - Max：-
- Current - Collector Cutoff (Max)：40 µA
- Input Capacitance (Cies) @ Vce：69 nF @ 25 V
Download product information
Overview

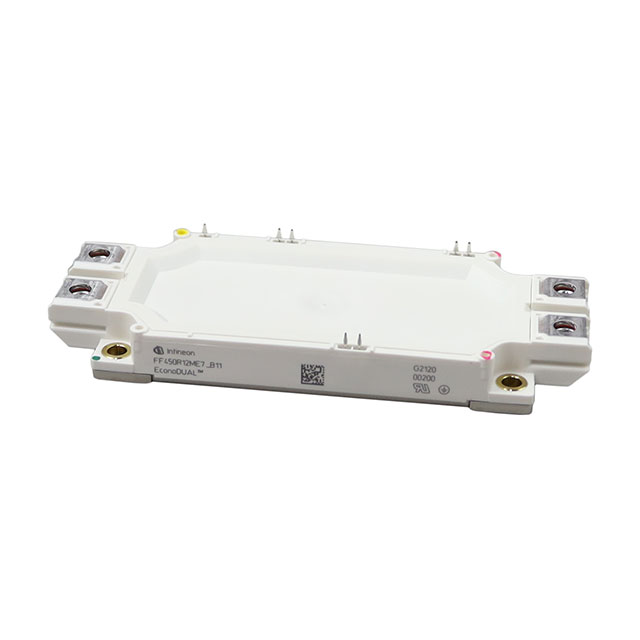

The Infineon FF450R12ME7B11BPSA1 is a dual IGBT module in the EconoDUAL™3 housing, utilizing TRENCHSTOP™ IGBT7 technology. It features an isolated copper baseplate and PressFIT contact technology. Key electrical parameters include a collector-emitter voltage (VCEs) of 1200 V and a continuous DC collector current (ICDC) of 450 A at a case temperature of 90 °C. The maximum repetitive peak collector current (ICRM) is 900 A. At 25 °C junction temperature, the typical collector-emitter saturation voltage (VCEsat) is 1.50 V, with a maximum of 1.75 V. The integrated NTC thermistor has a rated resistance of 5 kΩ at 25 °C.
Feature Summary
- TRENCHSTOP™ IGBT7 technology providing low switching losses and positive temperature coefficient for VCEsat.
- Integrated emitter controlled diode optimized for high-frequency operation.
- Built-in NTC thermistor for reliable thermal monitoring.
- PressFIT contact technology ensuring robust connection without soldering.
Applications
- High-power converters
- Motor drives
- Servo drives
- UPS systems
- Commercial agriculture vehicles
Procurement Notes
Verify the specific ordering suffix B11 to confirm the inclusion of PressFIT contacts and the standard housing configuration. Ensure compatibility with recommended gate drivers listed in official documentation. Confirm that the application environment meets the industrial qualification standards defined by IEC 60747, 60749, and 60068 before deployment.
Selection Notes
Select this component for designs requiring high power density and robust mechanical connections via PressFIT terminals. The 1200 V rating and 450 A current capacity suit medium-to-high power industrial applications. Consider the thermal resistance values and operating temperature range up to 175 °C when designing the cooling system and heatsink interface.
Part Context
This module belongs to the Infineon EconoDUAL™3 family, which provides standardized dimensions for easy integration into existing inverter layouts. The B11 designation typically indicates the specific terminal configuration and housing variant within the broader FF450R12ME7 product line.
Replacement Considerations
Direct replacements within the same series include other variants of the FF450R12ME7_B11 family. Verify pinout compatibility and thermal characteristics when substituting with older generations like IGBT4 modules or different packaging types.
FAQ
Is this module qualified for automotive applications?
No, the datasheet explicitly states that the product is not qualified according to AEC Q100 or AEC Q101 documents.
What is the isolation test voltage between terminals and the baseplate?
The isolation test voltage (VISOL) is 3.4 kV RMS for 1 minute at 50 Hz.
Does the module include an integrated temperature sensor?
Yes, it includes an integrated NTC thermistor with a rated resistance of 5 kΩ at 25 °C.
