FF450R17ME7B11BPSA1

Overview

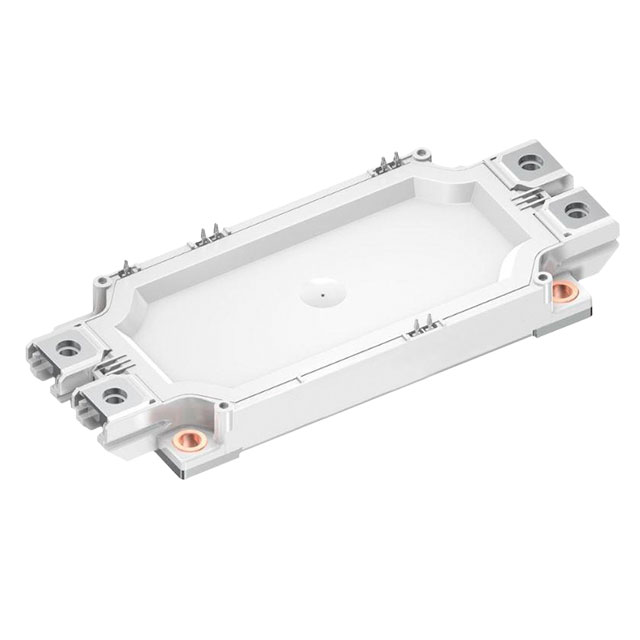

The FF450R17ME7B11BPSA1 is an EconoDUAL™3 IGBT module featuring TRENCHSTOP™ IGBT7 technology and emitter-controlled 7 diodes. It provides a collector-emitter voltage (VCES) of 1700 V and a nominal continuous DC collector current (ICDC) of 450 A at a case temperature of 90 °C. The maximum repetitive peak collector current (ICRM) reaches 900 A. The module incorporates an integrated NTC thermistor with a rated resistance of 5 kΩ at 25 °C for thermal monitoring. It utilizes PressFIT contact technology and includes an isolated copper base plate.

Feature Summary

• TRENCHSTOP™ IGBT7 technology with positive temperature coefficient for low saturation voltage
• Integrated NTC thermistor for reliable thermal management
• PressFIT contact technology ensuring robust mechanical connection
• Isolated base plate design for high power density

Applications

• High-power converters
• Medium-voltage converters
• Motor drives
• Wind turbines

Procurement Notes

Verify the specific ordering suffix BPSA1 against official Infineon documentation to confirm exact manufacturing details, as suffixes may indicate variations in production origin or internal specifications. Ensure compatibility with recommended gate drivers listed on the manufacturer's website. Confirm that the application environment meets the industrial qualification standards defined by IEC 60747, 60749, and 60068.

Selection Notes

Select this component for designs requiring 1700 V blocking capability and high current handling up to 450 A. The module supports operation up to 175 °C junction temperature under overload conditions. Verify that the system layout accommodates the standard housing dimensions and that the mounting torque adheres to the specified 6 Nm for M5 and M6 screws. Ensure the thermal interface material selection aligns with the required thermal resistance values.

Part Context

This module belongs to the Infineon EconoDUAL™3 family, designed for successful inverter layouts. It combines high electrical performance with reliability for industrial applications. The product integrates advanced trench-stop technology to optimize switching losses and current density within a standardized package format suitable for various power conversion architectures.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided datasheet.
