FF600R06ME3BOSA1

Overview

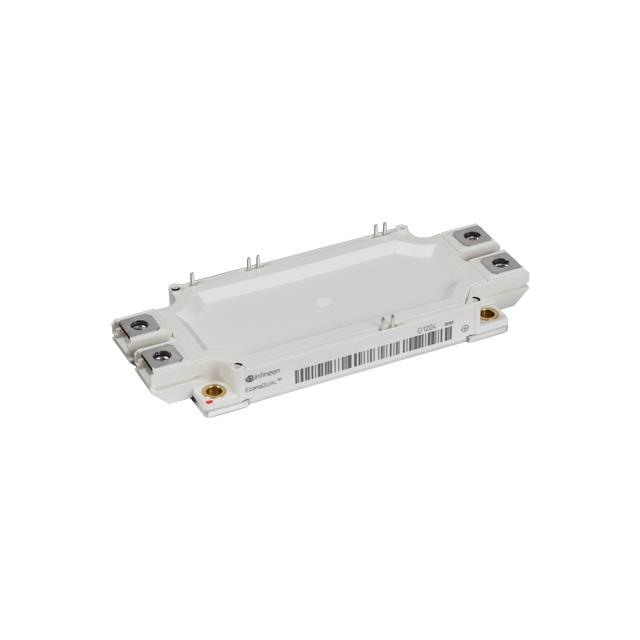

The FF600R06ME3BOSA1 is a Trenchstop IGBT3 series silicon module featuring a dual half-bridge configuration with integrated freewheeling diodes. It operates at a collector-emitter voltage of 600 V and supports a maximum continuous collector current of 700 A. The device utilizes a flange mount package with 11 terminals, designed for isolated base mounting. Key electrical parameters include a typical saturation voltage of 1.45 V at 25°C and a power dissipation rating of 940 W. The module incorporates a built-in NTC thermistor for thermal monitoring and functions within an operating temperature range from -40°C to +150°C.

Feature Summary

• Trenchstop technology providing optimized switching performance and low conduction losses
• Integrated NTC thermistor for precise junction temperature monitoring
• Isolated copper baseplate design facilitating efficient heat dissipation
• Robust short-circuit capability suitable for industrial protection schemes

Applications

• Industrial motor drives and variable frequency drives
• Uninterruptible power supplies (UPS) systems
• Induction heating equipment
• Welding machines and power converters

Procurement Notes

Verify the specific ordering suffix BOSA1 against official Infineon documentation to confirm pinout compatibility and terminal plating specifications. Ensure that the procurement channel provides valid RoHS compliance certificates and material content declarations as required by regulatory standards. Cross-reference the datasheet revision date to guarantee alignment with the latest technical parameters and application notes.

Selection Notes

Select this component for applications requiring high current density in a compact flange-mount form factor. Evaluate the thermal resistance characteristics against the system's cooling capacity to ensure the junction temperature remains within the specified 150°C limit under peak load conditions. Confirm that the gate drive circuitry matches the recommended operating conditions for the Trenchstop IGBT3 family to optimize switching speed and minimize electromagnetic interference.

Part Context

This module belongs to the Infineon Trenchstop IGBT3 product line, representing a mature generation of silicon power modules. It serves as a high-reliability solution for medium-power industrial applications where robustness and cost-effectiveness are prioritized. The EconoDUAL packaging standard ensures widespread compatibility with existing heatsink designs and assembly processes used across various power electronics platforms.

Replacement Considerations

Direct replacements within the same series include FF600R06KE3HOSA1. Verify mechanical footprint and terminal arrangement before substitution. Upgrades to newer generations such as the IGBT4 or IGBT5 series may offer improved switching characteristics but require validation of gate drive requirements and thermal management strategies.
