FF600R12ME7B11BPSA2

Overview

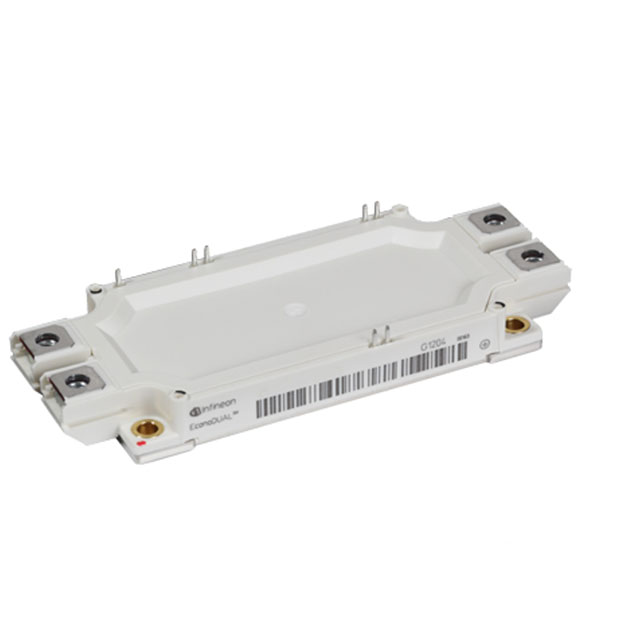

The FF600R12ME7B11BPSA2 is a dual IGBT module from Infineon's EconoDUAL™3 series, utilizing TRENCHSTOP™ IGBT7 technology. It features a 1200 V collector-emitter voltage (VCESS) and a nominal continuous DC collector current of 600 A at a case temperature of 85 °C. The device incorporates an integrated NTC thermistor with a rated resistance of 5 kΩ at 25 °C. Electrical characteristics include a typical saturation voltage of 1.5 V and a forward voltage of 1.8 V for the emitter-controlled diode at 25 °C. The module employs PressFIT contact technology and has an isolated copper base plate.

Feature Summary

• TRENCHSTOP™ IGBT7 technology providing low switching losses and high robustness
• Integrated NTC thermistor for precise junction temperature monitoring
• PressFIT contact technology ensuring reliable electrical connections
• Isolated base plate design for enhanced safety and thermal management

Applications

• Commercial agriculture vehicles
• High-power converters
• Motor drives
• Servo drives
• UPS systems

Procurement Notes

Verify the specific ordering suffix B11 against official documentation to confirm component configuration. Ensure compatibility with recommended gate drivers listed in the datasheet. Confirm that the application environment meets the industrial qualification standards defined by IEC 60747, 60749, and 60068 prior to deployment.

Selection Notes

Select this module for applications requiring high power density and efficient thermal performance. Consider the 1200 V rating and 600 A current capacity when designing the power stage. Account for the stray inductance of 20 nH during layout optimization. Verify that the mounting torque specifications are strictly followed to maintain mechanical integrity and thermal contact.

Part Context

This component belongs to the EconoDUAL™3 family, designed for medium to high-power industrial applications. It represents the seventh generation of Infineon's trench field-stop technology, offering improved efficiency compared to previous generations. The standard housing facilitates integration into existing inverter layouts while providing high creepage distances and electrical isolation.

Replacement Considerations

Direct replacements within the same package and electrical ratings should be sought from the EconoDUAL™3 portfolio. Verify pinout compatibility and thermal resistance values when substituting. Cross-referencing with older generations like IGBT4 requires careful evaluation of switching speed differences and gate drive requirements.
