Product Detailed Parameters
- Description：MEDIUM POWER ECONO
- Series：EconoDUAL™, TRENCHSTOP™
- Mfr：Infineon Technologies
- Package：Tray
- IGBT Type：Trench Field Stop
- Configuration：Single
- Vce(on) (Max) @ Vge, Ic：-
- Input：Standard
- NTC Thermistor：No
- Operating Temperature：-
- Mounting Type：Chassis Mount
- Package / Case：Module
- Supplier Device Package：AG-ECONOD
- Voltage - Collector Emitter Breakdown (Max)：1700 V
- Current - Collector (Ic) (Max)：600 A
- Power - Max：-
- Current - Collector Cutoff (Max)：-
- Input Capacitance (Cies) @ Vce：-
Download product information
Overview

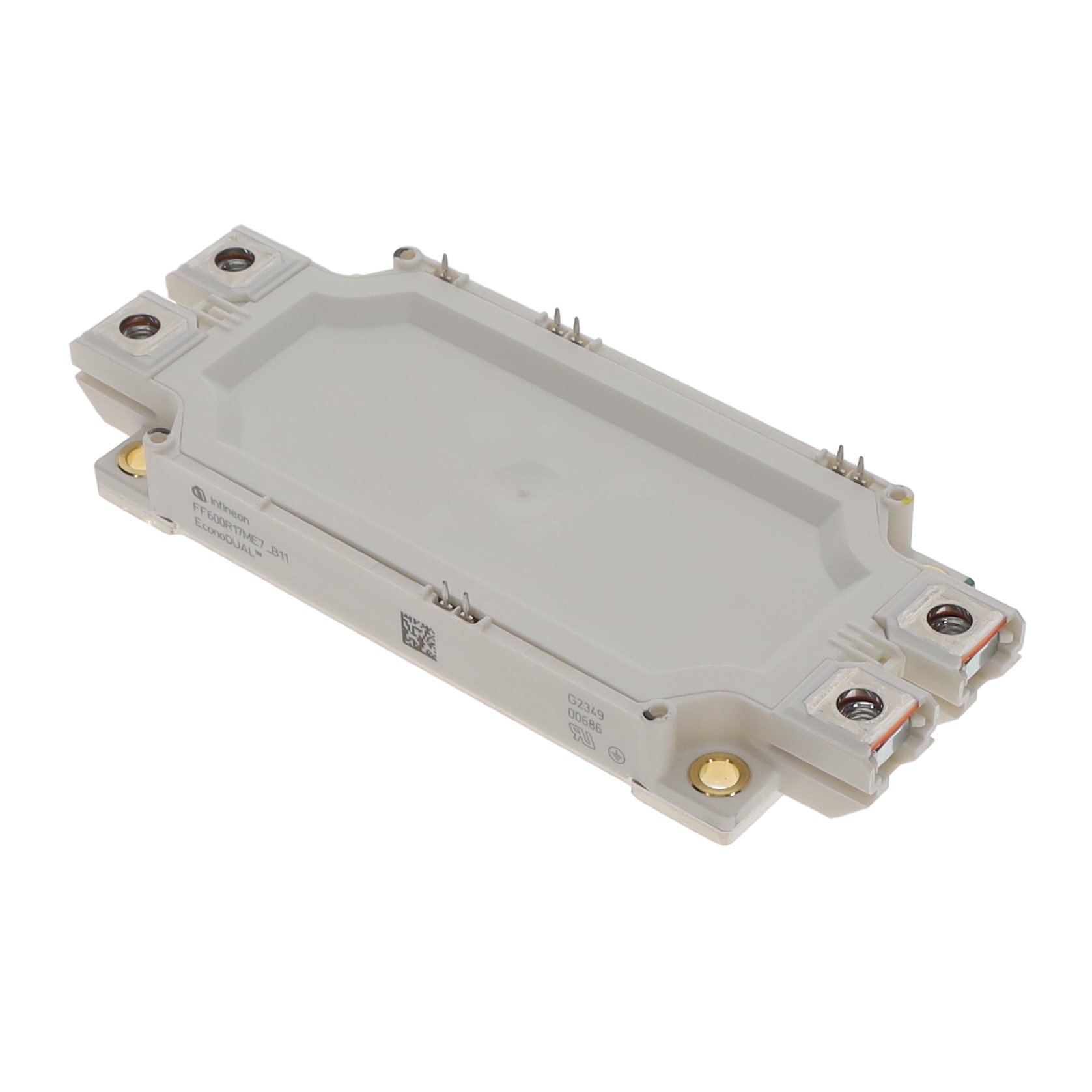

The FF600R17ME7B11BPSA1 is an EconoDUAL™3 IGBT module featuring TRENCHSTOP™ IGBT7 technology and emitter-controlled diodes. It provides a collector-emitter voltage of 1700 V and a continuous DC collector current of 600 A at 25°C, with a repetitive peak current of 1200 A. The module incorporates an integrated NTC thermistor rated at 5 kΩ at 25°C for thermal monitoring. Key electrical parameters include a typical saturation voltage of 1.70 V and a forward voltage of 2.35 V at 25°C. It utilizes PressFIT contact technology and features an isolated copper base plate.
Feature Summary
- TRENCHSTOP™ IGBT7 technology providing low saturation voltage and positive temperature coefficient
- Integrated NTC thermistor for reliable temperature monitoring
- PressFIT contact technology ensuring high mechanical robustness
- Isolated base plate design with basic insulation
Applications
- High-power converters
- Medium-voltage converters
- Motor drives
- Wind turbines
Procurement Notes
Verify the specific ordering suffix B11 to confirm the inclusion of the integrated NTC thermistor and PressFIT terminal configuration. Ensure compatibility with recommended Infineon gate drivers as specified in the official documentation. Confirm that the application environment adheres to the industrial qualification standards defined in IEC 60747, 60749, and 60068.
Selection Notes
Select this module for applications requiring high power density and efficient thermal management within the 1700 V class. Consider the 600 A continuous current rating against the expected operating junction temperature limits. Verify that the system layout supports the required mounting torque and that the thermal interface material meets the specified conductivity requirements for optimal heat dissipation.
Part Context
This component belongs to the Infineon EconoDUAL™3 family, which utilizes TRENCHSTOP™ IGBT7 technology. This generation offers improved switching performance and higher power density compared to previous iterations. The module is designed for industrial applications and is qualified according to relevant international safety and reliability standards.
Replacement Considerations
Direct replacements within the same series include FF300R17ME7B11BPSA1 (300 A) and FF900R17ME7B11BPSA1 (900 A). For lower voltage requirements, the FF600R12ME7B11BPSA2 (1200 V) shares the same package but differs in voltage rating. Always verify pinout and thermal characteristics before substitution.
FAQ
What is the maximum operating junction temperature?
The maximum operating junction temperature under switching conditions is 175°C. Operation above 150°C is permitted only under overload conditions.
Does this module include an integrated temperature sensor?
Yes, the module includes an integrated NTC thermistor with a rated resistance of 5 kΩ at 25°C for thermal monitoring.
What type of terminal connection does this module use?
The module uses PressFIT contact technology for terminal connections, eliminating the need for soldering.
