FFPF05U60STTU

Single Diodes Overview

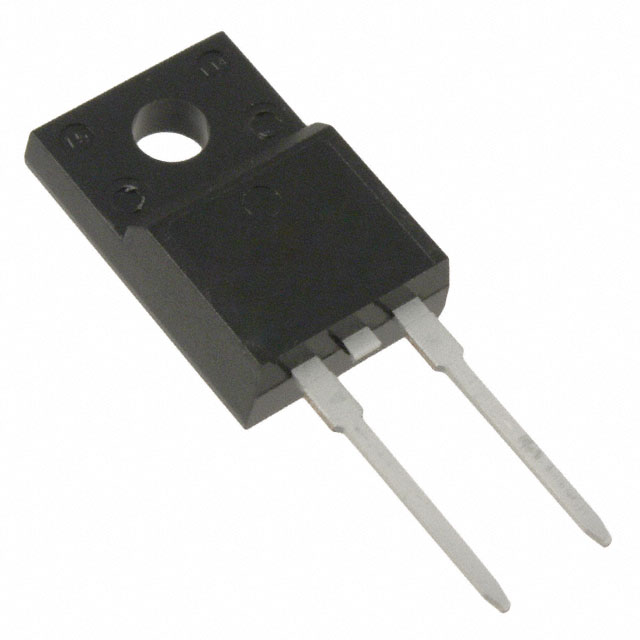

The FFPF05U60STTU is an ultra-fast recovery power rectifier manufactured by onsemi, originally developed by Fairchild Semiconductor. It features a peak repetitive reverse voltage of 600 V and an average rectified forward current rating of 5 A at a case temperature of 100°C. The device utilizes a TO-220F package with a maximum thermal resistance from junction to case of 5.0 °C/W. Electrical characteristics include a maximum instantaneous forward voltage of 2.3 V at 5 A and 25°C, and a maximum reverse recovery time of 80 ns under specified test conditions.

Single Diodes Feature Summary

• High speed switching capability for efficient power conversion
• Low forward voltage drop to minimize conduction losses
• High voltage and high reliability construction

Single Diodes Applications

• General purpose rectification
• Switching mode power supplies
• Free-wheeling diode for motor applications
• Power switching circuits

Single Diodes Procurement Notes

Verify the component status as this part number originates from Fairchild Semiconductor, which was acquired by onsemi. Confirm that the specific suffix 'STTU' corresponds to the standard TO-220F package configuration described in the legacy datasheet. Ensure compliance with RoHS directives if required for the target application, noting that original specifications may predate modern environmental regulations.

Single Diodes Selection Notes

Select this component for applications requiring fast recovery times and low forward voltage in medium-current power circuits. The 600V rating suits general-purpose high-voltage rectification tasks. Consider the thermal resistance of 5.0 °C/W when designing heat dissipation strategies for the TO-220F package to maintain junction temperatures within the specified -65 to +150°C operating range.

Single Diodes Part Context

This device belongs to the FFPF series of ultra-fast recovery power rectifiers. Originally produced by Fairchild Semiconductor, the product line was integrated into onsemi's portfolio following their acquisition. The FFPF05U60S datasheet serves as the primary technical reference for electrical parameters, mechanical dimensions, and performance characteristics of this specific rectifier family member.

Single Diodes Replacement Considerations

Consult official cross-reference lists or manufacturer substitution guides to identify verified equivalent parts. Verify that any substitute matches the 600V voltage rating, 5A current capacity, and TO-220F package form factor. Ensure the replacement maintains comparable reverse recovery time and forward voltage specifications for circuit compatibility.
