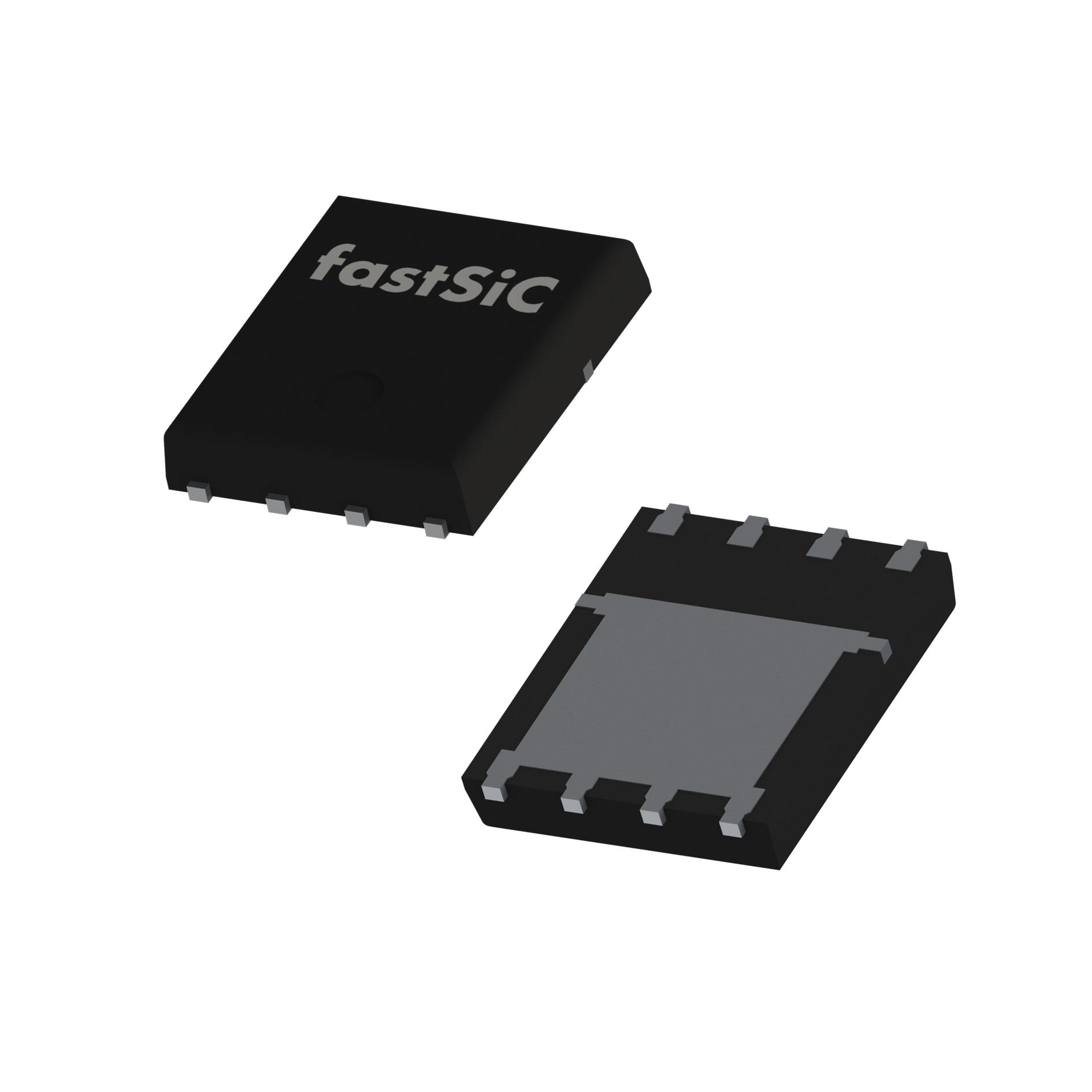

FL06320B is listed in the Single FETs, MOSFETs range at ChipApex. The manufacturer field lists fastSiC. Its product description is SICFET N-CH 650V 8.8A PQFN5x6. Review the specifications below when checking this part for your BOM.
Single FETs, MOSFETs specifications for FL06320B
- Description：SICFET N-CH 650V 8.8A PQFN5x6
- Series：Lightning
- Mfr：fastSiC
- Package：Tape & Reel (TR)
- FET Type：N-Channel
- Technology：SiCFET (Silicon Carbide)
- Drain to Source Voltage (Vdss)：650 V
- Current - Continuous Drain (Id) @ 25°C：8.8A (Tc)
- Drive Voltage (Max Rds On, Min Rds On)：12V, 15V
- Rds On (Max) @ Id, Vgs：420mOhm @ 2A, 15V
- Vgs(th) (Max) @ Id：1.5V @ 4mA (Typ)
- Gate Charge (Qg) (Max) @ Vgs：12.9 nC @ 400 V
- Vgs (Max)：15V
- Input Capacitance (Ciss) (Max) @ Vds：344 pF @ 400 V
- FET Feature：-
- Power Dissipation (Max)：41W (Tc)
- Operating Temperature：-55°C ~ 175°C (TJ)
- Grade：-
- Qualification：-
- Mounting Type：Surface Mount
- Supplier Device Package：8-PQFN (5x6), Power56
- Package / Case：9-PowerTDFN
Single FETs, MOSFETs datasheet and documents for FL06320B
Single FETs, MOSFETs Overview
The FL06320B is a Silicon Carbide (SiC) MOSFET from the Falcon Series by FastSiC, housed in a PQFN 5x6 package. It features a drain-source voltage of 750V and an on-state resistance of 320mΩ at VGS=15V. The device supports continuous drain currents up to 8.8A and pulse currents of 37A. Key electrical parameters include a total gate charge of 12.9nC and output capacitive charge of 12.3nC. Operating temperatures range from -55°C to 175°C.
Single FETs, MOSFETs Feature Summary
- Clean Kelvin-Source switching configuration for optimized performance
- Low profile packaging with low parasitic inductance
- High avalanche endurance capability
- Compatible with standard 12V gate drivers
Single FETs, MOSFETs Applications
- Switching Mode Power Supply
- Power Factor Correction
- Telecom Power
- Renewable Energy Systems
Single FETs, MOSFETs Procurement Notes
Verify the specific package type against the datasheet part number table. The FL06320B designation corresponds specifically to the PQFN 5 x 6 package variant. Confirm that the ordering suffix matches the required physical footprint and terminal arrangement before procurement.
Single FETs, MOSFETs Selection Notes
Select this component for high-frequency operation and high power density applications. Ensure the thermal design accommodates the junction temperature limits up to 175°C. Verify compatibility with standard 12V gate drivers for optimal switching behavior and system efficiency.
Single FETs, MOSFETs Part Context
This device belongs to the Falcon Series of SiC MOSFETs manufactured by FastSiC Semiconductor Inc. The series is designed to enable compact and lightweight systems through higher efficiency and reliability. The FL06320B represents one of several package options available within this product line.
Single FETs, MOSFETs Replacement Considerations
Consult the manufacturer's documentation for comparable products. Contact FastSiC sales representatives directly to obtain the latest information on equivalent or substitute components suitable for your specific application requirements.
