FM82P5004

Overview

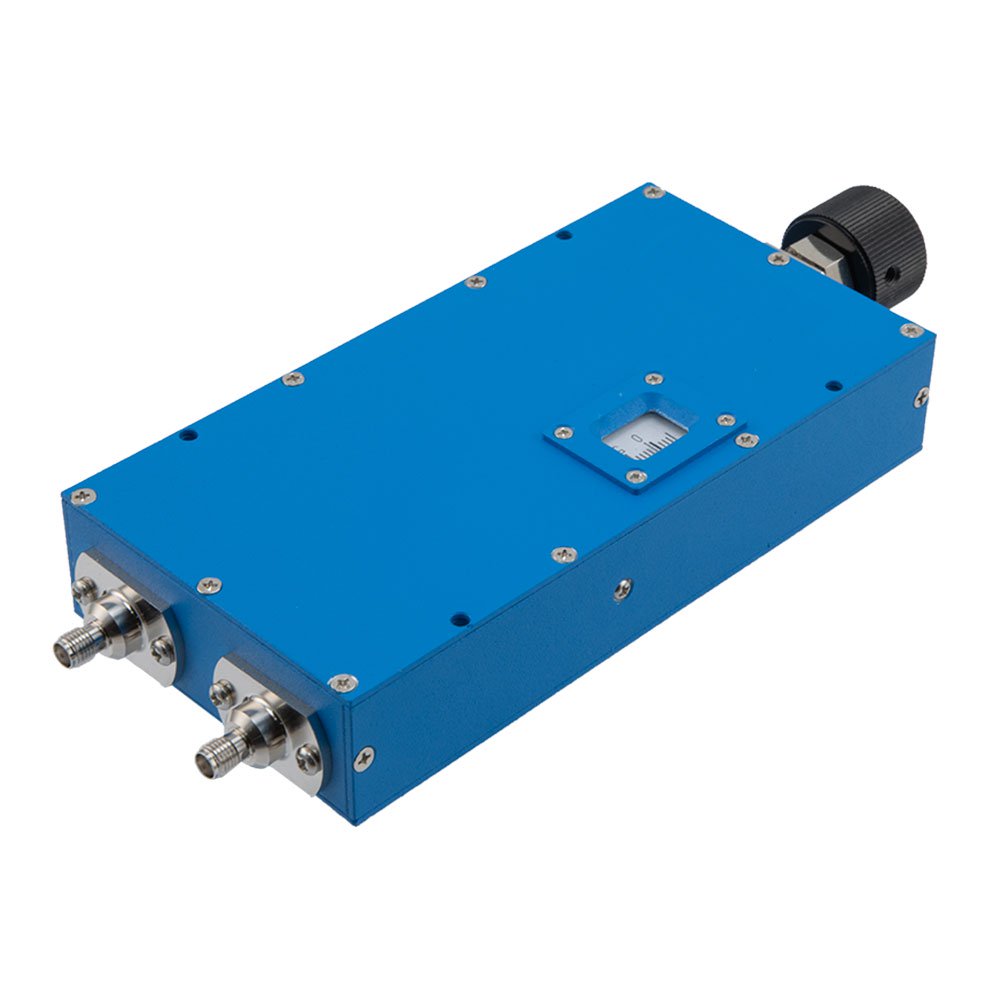

The FM82P5004 is an adjustable phase shifter manufactured by Fairview Microwave, designed for signal conditioning applications within the DC to 2 GHz frequency range. It features SMA connectors and provides a precise phase adjustment of 60 degrees per GHz. The unit is packaged in a bag and weighs approximately 612.3 grams.

Feature Summary

• Adjustable phase shifting capability with a rate of 60 degrees per GHz across the operational bandwidth.
• Precision rotary dial design enables controllable phase adjustments for accurate signal management.

Applications

• Signal conditioning systems requiring variable phase control
• RF test and measurement setups utilizing SMA interfaces
• Communication equipment operating within the DC to 2 GHz spectrum

Procurement Notes

Verify component authenticity through official Fairview Microwave channels or authorized distributors. Confirm that the received unit matches the FM82P5004 designation and includes necessary documentation. Check for physical damage to the SMA connectors and housing before integration into sensitive RF circuits.

Selection Notes

Select this component when precise, continuous phase adjustment is required up to 2 GHz. Ensure system requirements align with the 60 degrees per GHz adjustment rate and SMA connector compatibility. Consider the mechanical interface provided by the rotary dial design for manual tuning needs.

Part Context

This device belongs to the Fairview Microwave signal conditioning category, specifically focusing on phase shifters. It serves as a passive RF component used to modify the phase angle of signals without significant amplitude alteration, supporting various microwave and radio frequency engineering tasks.

Replacement Considerations

FM82P5012: Offers similar adjustable phase shifting but operates up to 4 GHz with N-type connectors and a different adjustment rate of 60 degrees per GHz.
