FMAM4063F

Overview

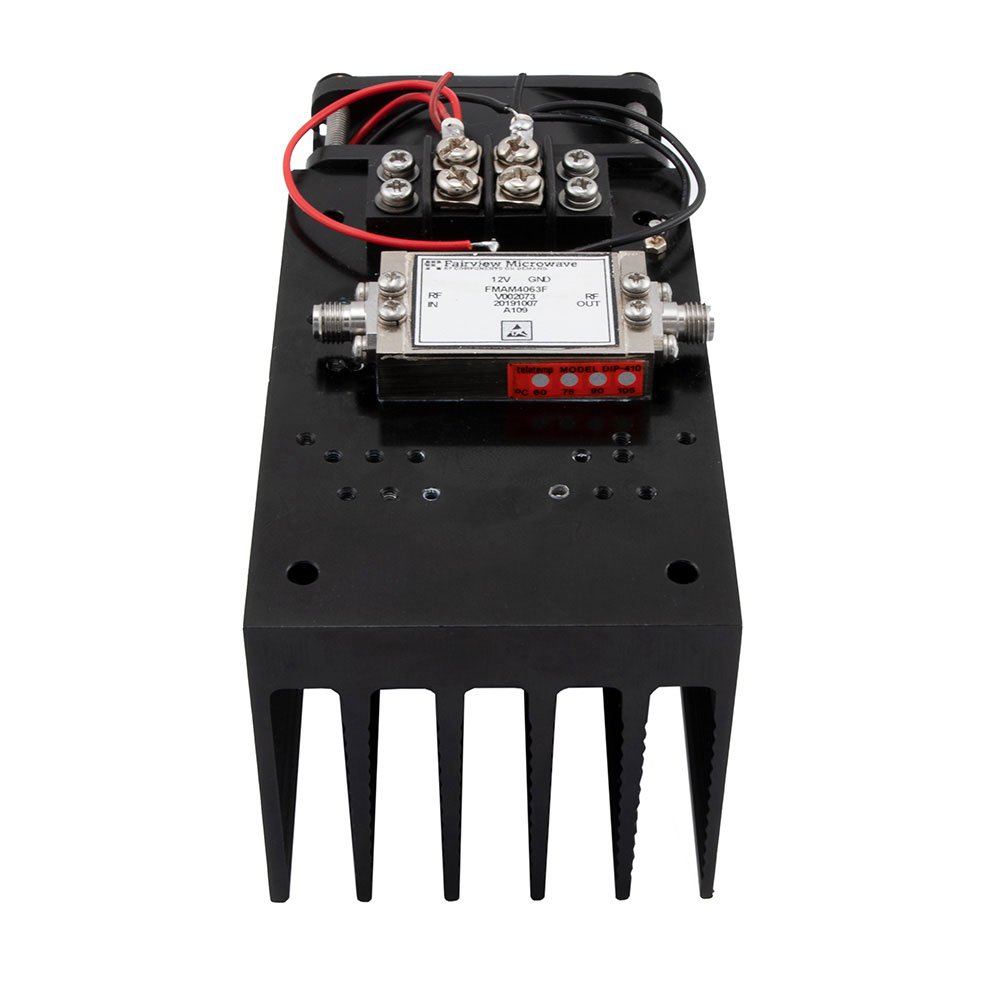

The FMAM4063F is a medium power RF amplifier manufactured by Fairview Microwave, designed for operation within the 8 GHz to 12.4 GHz frequency range. This component delivers a P1dB output power of 27 dBm and requires an operating supply current of 800 mA. It features SMA connectors for signal interfacing and includes an integrated heatsink to manage thermal performance during operation.

Feature Summary

• Integrated heatsink design for thermal management
• SMA connector interface for signal transmission
• Medium power amplification capability

Applications

• Radar systems
• Wireless communication infrastructure
• Test and measurement equipment

Procurement Notes

Verify component authenticity through authorized Fairview Microwave channels or certified distributors. Confirm that the specific unit matches the FMAM4063F designation and includes the specified SMA connectors and heatsink configuration. Request official datasheets to validate electrical parameters against application requirements before finalizing procurement decisions.

Selection Notes

Select this model when an 8 GHz to 12.4 GHz operating range with 27 dBm P1dB output is required. Ensure system power supplies can provide the necessary 800 mA current. Verify mechanical compatibility with existing SMA interfaces and adequate space for the heatsink assembly in the final enclosure design.

Part Context

This part belongs to the Fairview Microwave RF Amplifier family, categorized under Wireless & RF Integrated Circuits. It represents a medium power solution distinct from low noise or high saturation power variants within the manufacturer's portfolio, specifically targeting S-band to C-band applications requiring moderate output levels.

Replacement Considerations

FMAM4061F offers similar power but covers 6-18 GHz. FMAM4062F provides 1W P1dB over 6-18 GHz. FMAM4054F operates at 2-8 GHz with 1W P1dB. Verify frequency overlap and connector types before substitution.
