FMAM5068

Overview

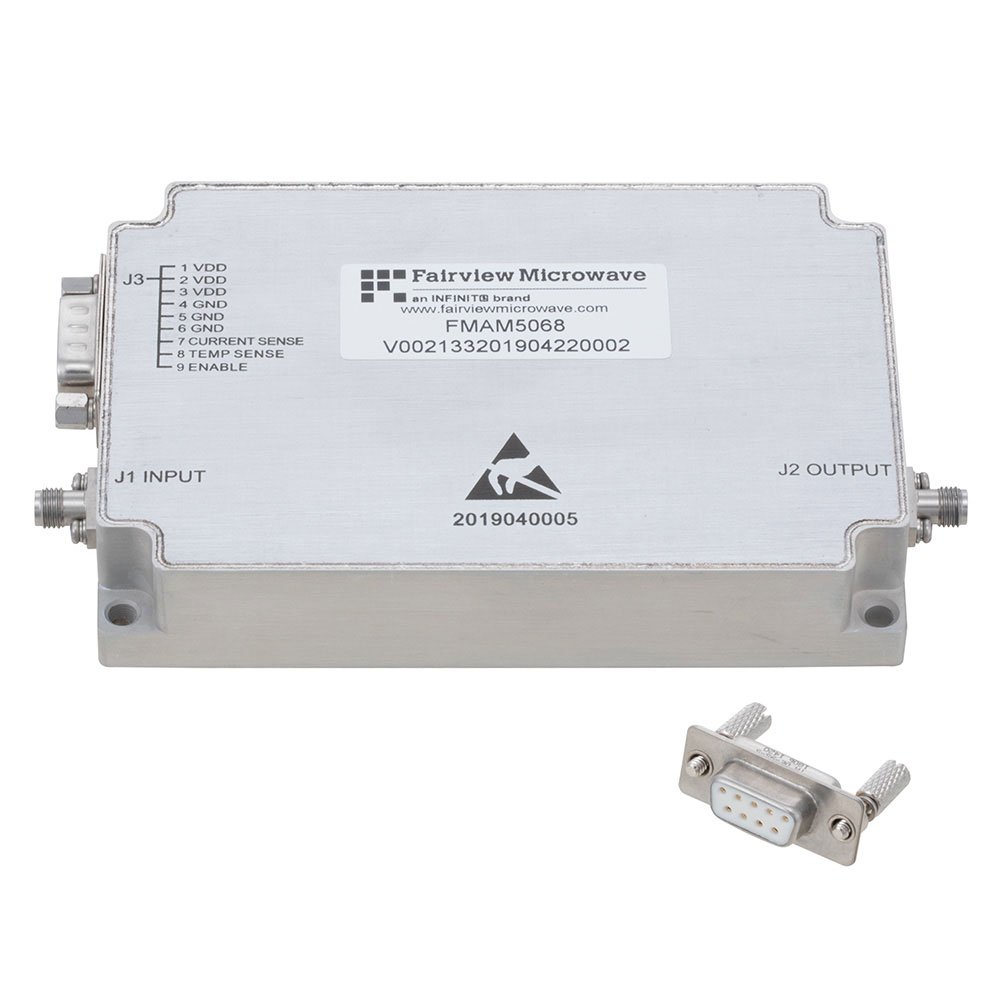

The FMAM5068 is a high power GaN amplifier module operating from 2 GHz to 18 GHz. It delivers 5 watts of saturated output power with a small signal gain of 37 dB and gain flatness of ±3.5 dB. The unit features an SMA connector interface.

Feature Summary

• Utilizes Gallium Nitride technology for high power performance
• Provides stable gain flatness across the operational bandwidth
• Designed as a compact RF amplifier module

Applications

• Wireless communication systems
• Test and measurement equipment
• Broadband signal generation

Procurement Notes

Verify the specific datasheet version and manufacturer documentation before integration. Confirm that the SMA connector type matches system requirements. Ensure thermal management solutions are adequate for the 5-watt output power level. Check for any specific handling precautions related to the GaN semiconductor technology used in this component.

Selection Notes

Select this model when a wide frequency range up to 18 GHz is required alongside moderate high power output. The 37 dB gain supports direct signal amplification without additional stages. Consider the physical size and weight constraints associated with the module packaging. Evaluate if the ±3.5 dB gain flatness meets the linearity requirements of the application.

Part Context

This component belongs to Fairview Microwave's portfolio of RF amplifier modules. It is categorized under wireless and RF integrated circuits. The product utilizes advanced semiconductor materials to achieve its specified power and frequency characteristics within a standardized connector form factor.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
