FMAT9004

Overview

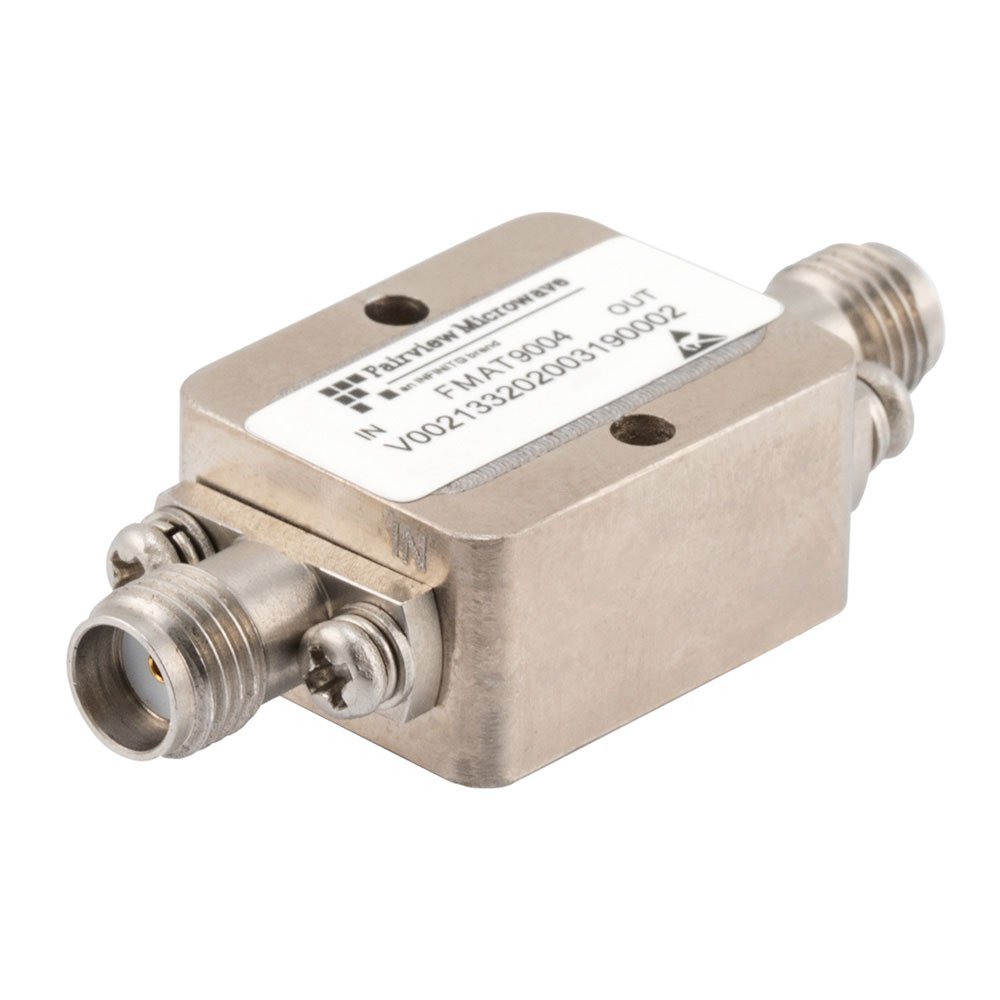

The FMAT9004 is a linear gain equalizer manufactured by Fairview Microwave, designed for RF signal conditioning applications. It operates within a frequency range of 1 GHz to 18 GHz and utilizes SMA connectors for interface connectivity. The device provides a gain equalization capability of 5 to 7 dB while maintaining an insertion loss between 1 and 2.7 dB. It supports a maximum power handling capacity of 30 dBm, ensuring reliable performance in high-frequency signal paths.

Feature Summary

• Provides precise gain equalization across the specified frequency band
• Utilizes SMA connector interfaces for standard integration
• Designed as a general-purpose linear equalizer for RF systems

Applications

• RF signal conditioning in communication systems
• Test and measurement equipment requiring flat frequency response
• General-purpose linear equalization in microwave circuits

Procurement Notes

Verify the specific datasheet version and connector gender compatibility before procurement. Confirm that the SMA interface matches your system requirements. Ensure the operating environment supports the specified power handling limits. Check for any regional distribution restrictions or lead time variations with authorized suppliers.

Selection Notes

Select this component when a fixed gain equalization profile between 5 and 7 dB is required within the 1 to 18 GHz range. Consider the 1 to 2.7 dB insertion loss impact on system noise figure. Ensure the 30 dBm power rating exceeds the maximum expected signal level in the application path.

Part Context

This part belongs to Fairview Microwave's portfolio of RF interconnects and signal conditioning components. It serves as a specialized module for managing signal amplitude variations in wideband applications. The product integrates passive equalization technology into a compact form factor suitable for modular RF designs.

Replacement Considerations

No public confirmed substitute part numbers are available for this specific model.
