FMAT9005

Overview

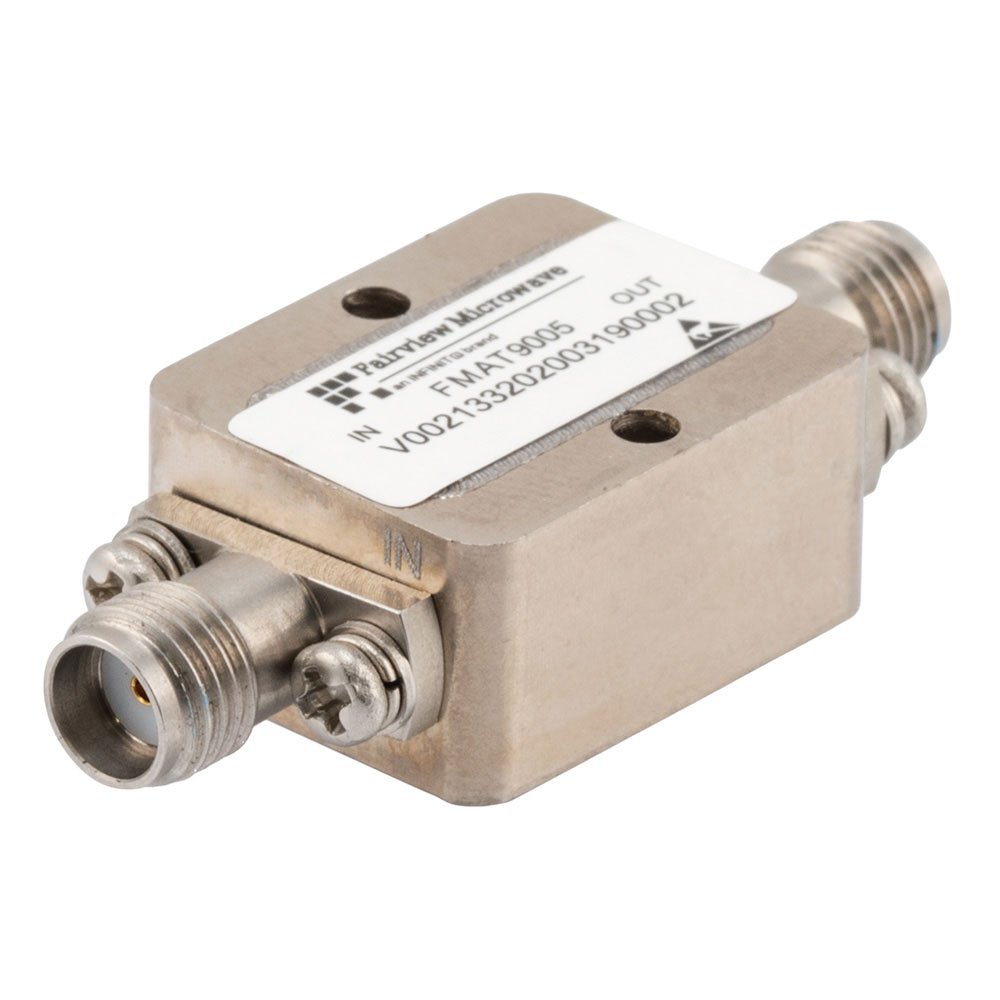

The FMAT9005 is a general-purpose linear equalizer manufactured by Fairview Microwave. It operates within a frequency range of 1 GHz to 18 GHz and utilizes SMA connectors for interface connectivity. The component provides an equalizing value of 8 dB, designed to compensate for signal amplitude variations across its specified bandwidth in RF systems.

Feature Summary

• Provides linear signal equalization across a wide microwave frequency spectrum
• Features standard SMA connector interfaces for integration
• Designed as a general-purpose solution for RF signal conditioning

Applications

• RF signal path compensation
• Microwave system amplitude balancing
• General-purpose equalization in test and measurement setups

Procurement Notes

Verify the specific datasheet version and manufacturer documentation to confirm exact electrical tolerances and connector specifications before integration. Ensure compatibility with existing SMA interfaces and operating frequency requirements. Consult official Fairview Microwave resources for current availability and technical support details.

Selection Notes

Select this component when a fixed 8 dB equalizing value is required between 1 GHz and 18 GHz. The SMA interface suits standard benchtop or modular RF configurations. Consider thermal management and power handling limits if operating near maximum rated conditions.

Part Context

This model belongs to Fairview Microwave's RF interconnect and module portfolio, specifically categorized under linear equalizers. It serves as a passive component for managing signal integrity in high-frequency applications where amplitude flatness is critical.

Replacement Considerations

No publicly confirmed substitute part numbers are available in the provided source material. Verify functional equivalence carefully if considering alternatives from other manufacturers.
