FMAT9020

Overview

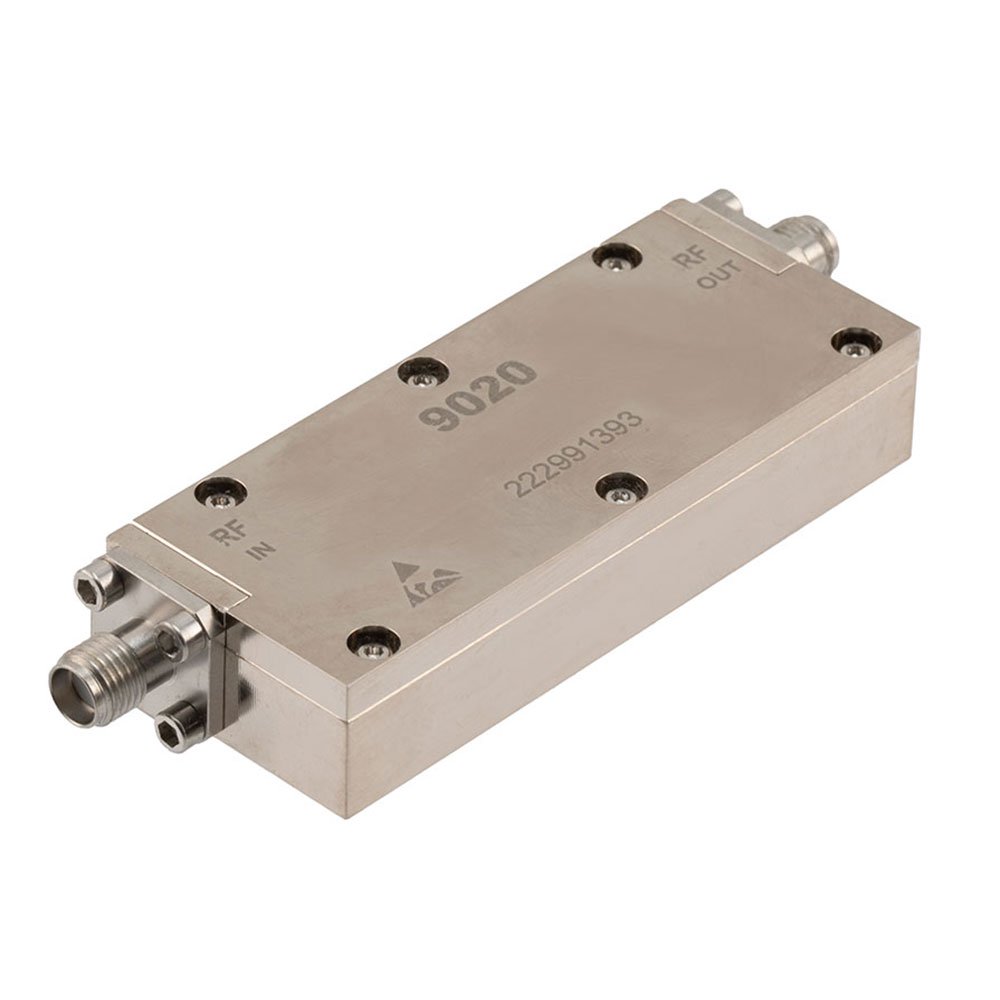

The FMAT9020 is a negative slope equalizer manufactured by Fairview Microwave, designed for operation within the 1 GHz to 4 GHz frequency range. This component provides a fixed equalizing value of 6 dB and exhibits a maximum insertion loss of 0.6 dB. It is rated for a maximum input power of 250 mW and utilizes SMA connectors for interface connectivity.

Feature Summary

• Provides negative slope signal equalization
• Maintains fixed 6 dB equalizing value across operating band
• Supports high-power handling up to 250 mW

Applications

• RF signal conditioning in communication systems
• Frequency response correction in test and measurement setups
• Compensation for cable or filter roll-off effects

Procurement Notes

Verify the specific datasheet version and connector gender compatibility before ordering. Confirm that the 250 mW power rating aligns with your system's peak signal levels. Ensure the SMA interface matches your existing infrastructure requirements to avoid adapter usage.

Selection Notes

Select this component when a fixed negative slope characteristic is required between 1 GHz and 4 GHz. Consider the 0.6 dB insertion loss impact on overall system gain. Evaluate if the 250 mW power handling meets your application's dynamic range needs without saturation.

Part Context

This equalizer belongs to Fairview Microwave's RF and microwave passive component portfolio. It addresses signal integrity issues caused by frequency-dependent losses in transmission paths. The device complements amplifiers and attenuators in balanced RF chain designs.

Replacement Considerations

No public confirmed substitute part numbers are available for this specific model.
