FMFD4002

Overview

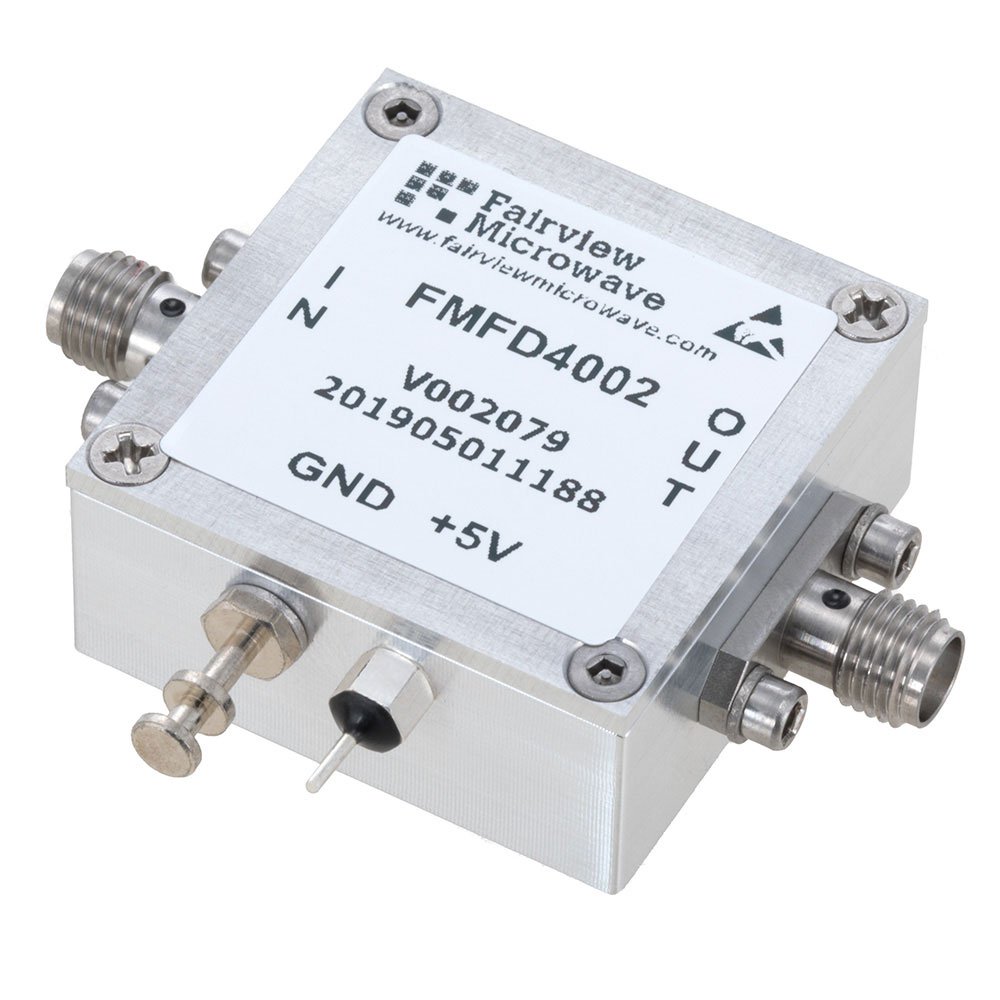

The FMFD4002 is a signal conditioning module manufactured by Fairview Microwave, classified as a frequency divider. It functions as a divide-by-4 prescaler designed for general-purpose RF applications. The component operates within two distinct frequency ranges: 25 MHz to 5 GHz and 100 MHz to 20 GHz. It utilizes SMA connectors for interface connectivity and is supplied in bag packaging. The device is currently listed as an active product with a unit weight of approximately 39.46 grams.

Feature Summary

• Functions as a divide-by-4 prescaler for signal conditioning
• Supports dual operational frequency bands up to 20 GHz
• Features SMA connector interfaces for modular integration

Applications

• RF signal processing systems requiring frequency division
• General-purpose microwave circuit modules
• Prescaler applications in test and measurement equipment

Procurement Notes

Verify the specific SMA connector gender and mating requirements against system schematics before procurement. Confirm that the target application frequency falls within the specified 25 MHz–5 GHz or 100 MHz–20 GHz operational bands. Ensure mechanical compatibility with the intended mounting configuration, as the module weighs approximately 39.46 grams. Cross-reference the manufacturer datasheet for detailed electrical performance characteristics and thermal management requirements.

Selection Notes

Select this model when a divide-by-4 frequency division function is required within the specified microwave range. Compare performance metrics against alternative prescalers if operation below 25 MHz or above 20 GHz is necessary. Evaluate the SMA interface compatibility with existing board layouts. Consider the physical dimensions and weight constraints for the final assembly design.

Part Context

This component belongs to the Fairview Microwave signal conditioning family, specifically categorized under frequency dividers and filters. It serves as a specialized RF module for modifying signal frequencies in high-frequency electronic systems. The product line focuses on providing reliable passive and active components for complex RF architectures.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify functional equivalence with other divide-by-4 prescalers from different manufacturers based on frequency range and connector type.
